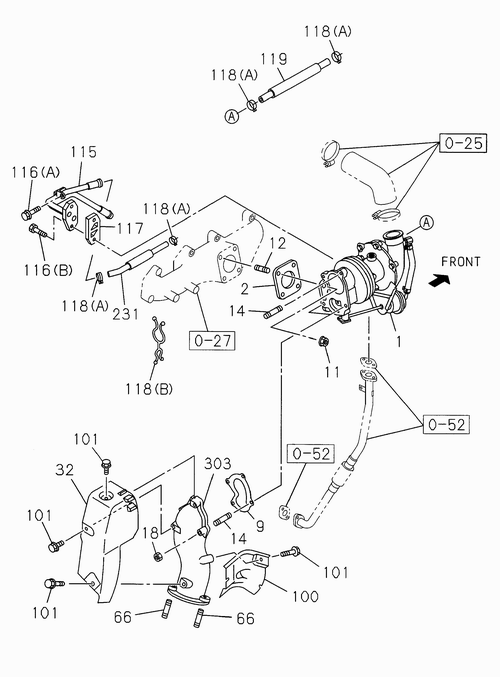

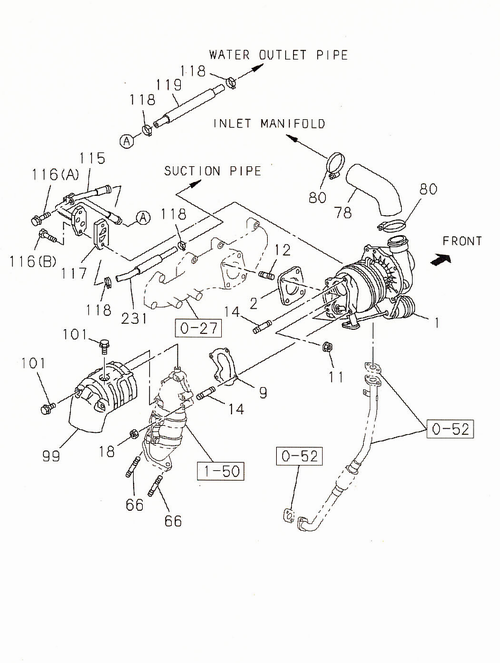

0-36 | TURBOCHARGER SYSTEM
PANTHER
PANTHER
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 32 | I8-97956 843-0 | PROTECTOR; HEAT, TURBO CHARGER | 1 | 0008- | 4JA1 | |||
| 66 | I8-97077 549-0 | STUD; EXH PIPE | 2 | 0612- | 4JA1-T | M10X38 L=53, EURO 2 | ||
| 11 | I8-97161 607-0 | NUT; TURBOCHARGER | 4 | 0612- | 4JA1 | M8 FLANGE, EURO 2 | ||
| 101 | I0-28080 812-0 | BOLT; HEAT PROTECTOR | 6 | 0008-0611 | 4JA1 | M8X12 FLANGE IND | ||
| 118 | I8-94367 943-0 | CLIP; WATER HOSE | 4 | 0612- | 4JA1-T | ID=12, 8, EURO 2 | ||
| 118 | I8-94221 519-0 | CLIP; WATER HOSE | 4 | 0612- | 4JA1-T | ID=12, 8, EURO 2 | ||
| 116 | I0-28050 620-0 | BOLT; WATER PIPE | 2 | 0612- | 4JA1-T | M6X20 FLANGE | ||
| 116 | I0-28080 612-0 | BOLT; WATER PIPE | 1 | 0612- | 4JA1-T | M6X12 FLANGE IND | ||
| 18 | I8-97161 607-0 | NUT; EXH PIPE | 4 | 0008-0611 | 4JA1 | M8 FLANGE, EURO 2 | ||
| 66 | I8-97077 549-0 | STUD; EXH PIPE | 2 | 0008- | 4JA1 | M10X38 L=53 | ||
| 118 | I8-94132 792-0 | CLIP; WATER HOSE | 1 | 0008-0611 | 4JA1 | (B), ID-8 & 18, 5 | ||
| 119 | I8-97260 753-0 | HOSE; WATER, TURBOCHARGER | 1 | 0008-0611 | 4JA1 | |||
| 2 | I8-94481 980-0 | GASKET; TURBOCHARGER TO EXH MANIF | 1 | 0008-0109 | 4JA1 | |||
| 78 | I8-97096 628-3 | HOSE; INL PIPE, TURBOCHARGER | 1 | 0612- | 4JA1-T | EURO 2 | ||
| 116 | I0-28080 620-0 | BOLT; WATER PIPE | 2 | 0612- | 4JA1-T | M6X20 FLANGE | ||
| 12 | I8-97378 060-0 | STUD; TURBOCHARGER | 4 | 0411-0611 | 4JA1 | |||
| 303 | I8-97956 842-0 | ADAPTER; THROTTLE BODY EXH | 1 | 0008- | 4JA1 | |||
| 117 | I8-94321 135-1 | GASKET; WATER PIPE | 1 | 0008-0611 | 4JA1 | |||
| 99 | I8-97318 472-0 | PROTECTOR; HEAT | 1 | 0612- | 4JA1-T | EURO 2 | ||
| 14 | I8-97378 067-0 | STUD; TURBOCHARGER TO EXH PIPE | 4 | 0612- | 4JA1 | EURO 2 | ||
| 116 | I0-28050 620-0 | BOLT; WATER PIPE | 2 | 0008- | 4JA1 | M6X20 FLANGE | ||
| 101 | I0-28050 612-0 | BOLT; HEAT PROTECTOR | 3 | 0612- | 4JA1-T | M6X12 FLANGE IND | ||
| 80 | I8-97131 943-0 | CLIP; CONN HOSE | 2 | 0612- | 4JA1-T | ID=45, 5 - 56, 5 | ||
| 14 | I8-97104 507-1 | STUD; TURBOCHARGER TO EXH PIPE | 4 | 0008-0611 | 4JA1 | |||
| 116 | I0-28080 620-0 | BOLT; WATER PIPE | 2 | 0008-0611 | 4JA1 | M6X20 FLANGE | ||
| 115 | I8-97149 127-1 | PIPE; WATER, TURBOCHAR OUT | 1 | 0612- | 4JA1-T | EURO2 | ||
| 66 | I5-09302 007-0 | STUD; EXH PIPE | 2 | 0008-0611 | 4JA1 | M10X38 L=53 | ||
| 118 | I8-94367 943-0 | CLIP; WATER HOSE | 4 | 0008-0611 | 4JA1 | (A), ID=15, 5 | ||
| 2 | I8-97315 266-0 | GASKET; TURBOCHARGER TO EXH MANIF | 1 | 0110-0611 | 4JA1 | |||
| 117 | I8-94321 135-1 | GASKET; WATER PIPE | 1 | 0612- | 4JA1-T | EURO 2 | ||
| 100 | I8-97956 844-0 | PROTECTOR; HEAT, EXH MANIF | 1 | 0008- | 4JA1 | |||
| 11 | I8-97161 607-0 | NUT; TURBOCHARGER | 4 | 0008-0611 | 4JA1 | M8 FLANGE | ||
| 9 | I8-97139 726-0 | GASKET; TURBOCHARGER TO EXH DUCT | 1 | 0612- | 4JA1-T | EURO 2 | ||
| 115 | I8-97149 127-1 | PIPE; WATER, TURBOCHAR OUT | 1 | 0008- | 4JA1 | |||
| 12 | I8-97378 060-0 | STUD; TURBOCHARGER | 4 | 0612- | 4JA1 | EURO 2 | ||
| 118 | I8-94221 519-0 | CLIP; WATER HOSE | 4 | 0008- | 4JA1 | (A), ID=15, 5 | ||
| 231 | I8-94325 255-0 | HOSE; RUBBER, TURBO OUT | 1 | 0008-0611 | 4JA1 | L=160 W/INSULATOR | ||
| 9 | I8-97139 726-0 | GASKET; TURBOCHARGER TO EXH DUCT | 1 | 0008-0611 | 4JA1 | |||
| 2 | I8-97315 266-0 | GASKET; TURBOCHARGER TO EXH MANIF | 1 | 0612- | 4JA1-T | EURO 2 | ||
| 1 | I8-97258 594-0 | TURBOCHARGER ASM | 1 | 0008-0611 | 4JA1 | |||
| 116 | I0-28080 612-0 | BOLT; WATER PIPE | 1 | 0008-0611 | 4JA1 | M6X12 FLANGE IND | ||
| 18 | I8-97161 607-0 | NUT; EXH PIPE | 4 | 0612- | 4JA1 | M8 FLANGE, EURO 2 | ||
| 119 | I8-97260 753-0 | HOSE; WATER, TURBOCHARGER | 1 | 0612- | 4JA1-T | EURO 2 | ||
| 66 | I5-09302 007-0 | STUD; EXH PIPE | 2 | 0612- | 4JA1-T | M10X38 L=53, EURO 2 | ||
| 231 | I8-94325 255-0 | HOSE; RUBBER, TURBO OUT | 1 | 0612- | 4JA1-T | L=160 W/INSULATOR EURO 2 | ||
| 1 | I8-97313 292-0 | TURBOCHARGER ASM | 1 | 0612- | 4JA1-T | EURO 2 | ||
| 12 | I8-97104 508-1 | STUD; TURBOCHARGER | 4 | 0008-0410 | 4JA1 |
