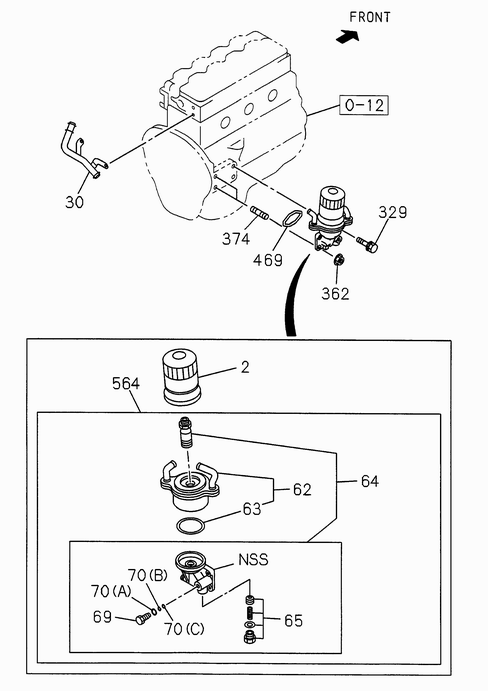

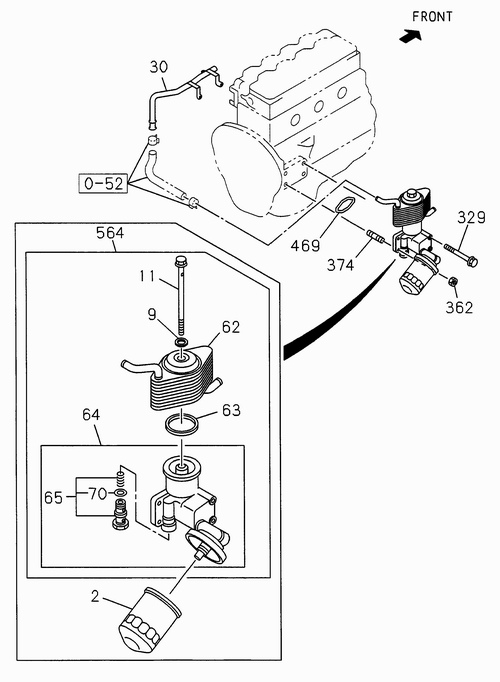

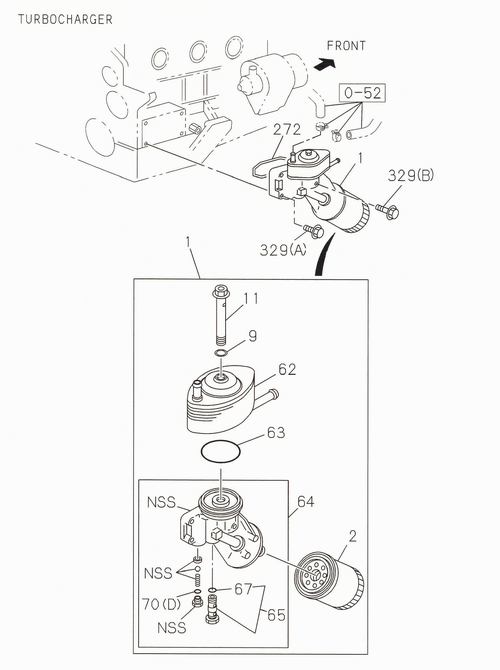

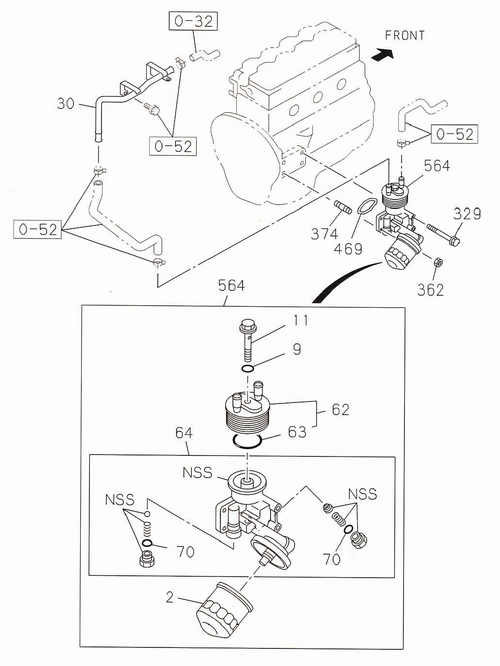

0-50 | OIL COOLER AND OIL FILTER
PANTHER
PANTHER
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 70 | I8-94167 884-0 | GASKET; PLUG, OIL FILTER | 1 | 0008- | 4JA1 | (A), EXC. TURBOCHGR<K51> ID=13, 6 | ||
| 2 | I8-97309 927-A | ELEMENT; OIL FILTER | 1 | 0612- | 4JA1-T | (IADG) | ||
| 62 | I8-97192 460-0 | COOLER ASM; OIL | 1 | 0008- | 4JA1 | EXC. TURBOCHARGER<K51> | ||
| 329 | I0-28080 825-0 | BOLT; OIL FILTER | 2 | 0008- | 4JA1 | EXC. TURBOCHARGER<K51> M8X25 FLANGE | ||
| 11 | I8-97117 966-0 | BOLT; CENTER | 1 | 0008-0611 | 4JA1 | TURBOCHARGER<K51> | ||
| 62 | I8-97319 556-1 | COOLER ASM; OIL | 1 | 0912- | 4JB1-TC | NULL | ||
| 362 | I0-91150 108-0 | NUT; OIL FILTER | 2 | 0008-0611 | 4JA1 | M8 FLANGE IND | ||
| 469 | I8-97065 983-1 | GASKET; OIL COOLER TO C/BL | 1 | 0008-0611 | 4JA1 | ALSO INCLUDED IN GASKET SET (ENGINE) | ||
| 2 | I8-97957 675-A | ELEMENT; OIL FILTER | 1 | 0008-0611 | 4JA1 | IND | ||
| 564 | I8-97260 775-0 | COOER ASM; OIL, W/O FILTER | 1 | 0008-0611 | 4JA1 | TURBOCHARGER<K51> | ||
| 469 | I8-97065 983-1 | GASKET; OIL COOLER TO C/BL | 1 | 0612- | 4JA1-T | ALSO INCLUDED IN GASKET SET (ENGINE) | ||
| 374 | I9-04110 825-0 | STUD; OIL FILTER | 2 | 0612- | 4JA1-T | M8X25 L=37 | ||
| 69 | I8-94167 883-0 | PLUG; BODY, OIL FILTER | 1 | 0008- | 4JA1 | EXC. TURBOCHRGR<K51> | ||
| 65 | I8-94450 772-0 | VALVE; OIL COOLER | 1 | 0008- | 4JA1 | |||
| 64 | I8-97161 713-0 | BODY; O/FILTER & O/COOLER | 1 | 0008-0611 | 4JA1 | TURBOCHARGER<K51> | ||
| 2 | I8-97309 927-0 | ELEMENT; OIL FILTER | 1 | 0612- | 4JA1-T | IND, EURO 2 | ||
| 564 | I8-97287 474-1 | COOER ASM; OIL, W/O FILTER | 1 | 0612- | 4JA1-T | TURBOCHARGER<K51> EURO 2 | ||
| 70 | I8-94167 886-0 | GASKET; PLUG, OIL FILTER | 1 | 0008- | 4JA1 | (C), EXC.TURBOCHARGER<K51> (C) ID=8, 6 | ||
| 564 | I8-97191 897-0 | COOER ASM; OIL, W/O FILTER | 1 | 0008- | 4JA1 | EXC. TURBOCHARGER<K51> | ||
| 469 | I8-98087 965-0 | GASKET; OIL COOLER TO C/BL | 1 | 0008- | 4JA1 | ALSO INCLUDED IN GASKET SET (ENGINE) | ||
| 30 | I8-97136 009-1 | PIPE ASM; OIL COOLER | 1 | 0612- | 4JA1-T | TURBOCHARGER<K51> | ||
| 9 | I8-97286 938-0 | GASKET; CENTER BOLT | 1 | 0612- | 4JA1-T | TURBOCHARGER<K51> | ||
| 564 | I8-97373 137-1 | COOER ASM; OIL, W/O FILTER | 1 | 0612- | 4JA1-T | TURBOCHARGER<K51> EURO 2 | ||
| 30 | I8-97251 256-0 | PIPE ASM; OIL COOLER | 1 | 0008- | 4JA1 | EXC. TURBOCHARGER<K51> | ||
| 9 | I8-97047 000-0 | GASKET; CENTER BOLT | 1 | 0008-0611 | 4JA1 | TURBOCHARGER<K51> | ||
| 70 | I8-94125 113-0 | GASKET; PLUG, OIL FILTER | 1 | 0612- | 4JA1-T | TURBOCHARGER<K51> | ||
| 70 | I8-94167 885-0 | GASKET; PLUG, OIL FILTER | 1 | 0008- | 4JA1 | (B), EXC. TURBOCHARGER<K51> ID=8, 8 | ||
| 70 | I9-09921 193-0 | GASKET; PLUG, OIL FILTER | 1 | 0008-0611 | 4JA1 | TURBOCHARGER<K51> | ||
| 362 | I0-91150 108-0 | NUT; OIL FILTER | 2 | 0612- | 4JA1-T | M8 FLANGE IND | ||
| 62 | I8-97943 622-0 | COOLER ASM; OIL | 1 | 0612- | 4JA1-T | TURBOCHARGER<K51> | ||
| 63 | I8-94450 917-0 | GASKET; COOLER TO BRKT | 1 | 0612- | 4JA1-T | EURO 2 | ||
| 329 | I1-09044 075-1 | BOLT; OIL FILTER | 1 | 0008-0611 | 4JA1 | TURBOCHARGER<K51> M8 X 95 FLANGE | ||
| 469 | I8-98087 965-0 | GASKET; OIL COOLER TO C/BL | 1 | 0612- | 4JA1-T | ALSO INCLUDED IN GASKET SET (ENGINE) | ||
| 374 | I9-04110 825-0 | STUD; OIL FILTER | 2 | 0008-0611 | 4JA1 | M8X25 L=37 | ||
| 63 | I8-94383 720-0 | GASKET; COOLER TO BRKT | 1 | 0008-0611 | 4JA1 | |||
| 362 | I0-91150 208-0 | NUT; OIL FILTER | 2 | 0008- | 4JA1 | M8 FLANGE IND | ||
| 64 | I8-97942 933-0 | BODY; O/FILTER & O/COOLER | 1 | 0612- | 4JA1-T | TURBOCHARGER<K51> | ||
| 62 | I8-97169 043-1 | COOLER ASM; OIL | 1 | 0008-0611 | 4JA1 | TURBOCHARGER<K51> | ||
| 11 | I8-97288 935-0 | BOLT; CENTER | 1 | 0612- | 4JA1-T | TURBOCHARGER<K51> | ||
| 64 | I8-97135 351-0 | BODY; O/FILTER & O/COOLER | 1 | 0008- | 4JA1 | EXC. TURBOCHARGER<K51> | ||
| 329 | I1-09044 075-1 | BOLT; OIL FILTER | 2 | 0612- | 4JA1-T | TURBOCHARGER<K51> M8 X 95 FLANGE | ||
| 11 | I8-98086 802-0 | BOLT; CENTER | 1 | 0612- | 4JA1-T | TURBOCHARGER<K51> | ||
| 30 | I8-97136 009-1 | PIPE ASM; OIL COOLER | 1 | 0008-0611 | 4JA1 | TURBOCHARGER<K51> | ||
| 70 | I8-97914 706-0 | GASKET; PLUG, OIL FILTER | 1 | 0612- | 4JA1-T | TURBOCHARGER<K51> |
