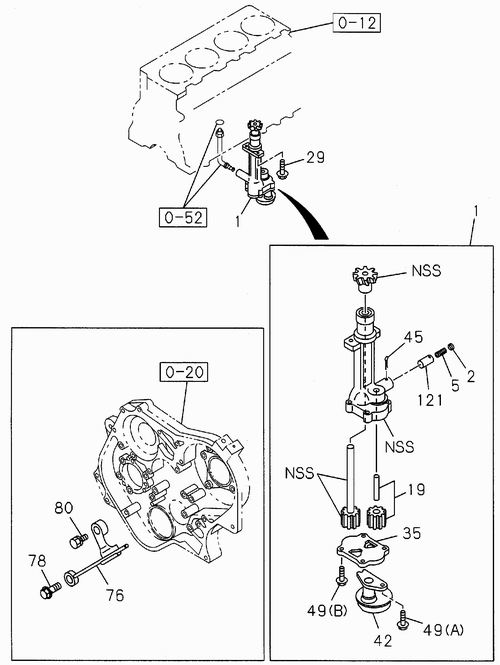

0-51 | OIL PUMP AND OIL STRAINER
PANTHER
PANTHER
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 1 | I8-97385 985-0 | PUMP ASM; OIL | 1 | 0410-0611 | 4JA1 | |||
| 49 | I0-28080 825-0 | BOLT; STRAINER, OIL PUMP | 2 | 0612- | 4JA1-T | (A) M8X25 FLANGE EURO 2 | ||
| 5 | I8-97036 834-0 | SPRING; COIL | 1 | 0008-0611 | 4JA1 | |||
| 42 | I8-97036 837-0 | STRAINER; OIL, OIL PUMP | 1 | 0008-0211 | 4JA1 | |||
| 29 | I0-28080 825-0 | BOLT; OIL PUMP | 2 | 0008-0611 | 4JA1 | M8X25 FLANGE | ||
| 45 | I9-08104 030-0 | PIN; SPLIT, RELIEF VLV | 1 | 0612- | 4JA1-T | EURO 2 | ||
| 19 | I8-94384 778-1 | GEAR SET; OIL PUMP | 1 | 0612- | 4JA1-T | EURO 2 | ||
| 49 | I0-28050 835-0 | BOLT; STRAINER, OIL PUMP | 2 | 0612- | 4JA1-T | (B) M8X30 FLANGE | ||
| 42 | I8-97089 824-0 | STRAINER; OIL, OIL PUMP | 1 | 0612- | 4JA1-T | EURO 2 | ||
| 1 | I8-97385 985-0 | PUMP ASM; OIL | 1 | 0612- | 4JA1-T | EURO 2 | ||
| 49 | I0-28050 835-0 | BOLT; STRAINER, OIL PUMP | 2 | 0212- | 4JA1 | (B) M8X30 FLANGE | ||
| 78 | I5-09675 043-0 | BOLT; EYE JOINT, OIL PIPE | 1 | 0008- | 4JA1 | M8X23 | ||
| 76 | I8-97160 706-0 | PIPE ASM; OIL | 1 | 0008- | 4JA1 | |||
| 121 | I8-94235 567-1 | VALVE; RELIEF, OIL PUMP | 1 | 0612- | 4JA1-T | EURO 2 | ||
| 5 | I8-97036 834-0 | SPRING; COIL | 1 | 0612- | 4JA1-T | EURO 2 | ||
| 80 | I0-50040 822-0 | BOLT; OIL PIPE FIX | 1 | 0008- | 4JA1 | M8X22 W/LK WASHER | ||
| 49 | I0-28080 835-0 | BOLT; STRAINER, OIL PUMP | 2 | 0612- | 4JA1-T | (B) M8X30 FLANGE | ||
| 49 | I0-28080 825-0 | BOLT; STRAINER, OIL PUMP | 2 | 0008-0611 | 4JA1 | (A) M8X25 FLANGE | ||
| 121 | I8-94235 567-1 | VALVE; RELIEF, OIL PUMP | 1 | 0008-0611 | 4JA1 | |||
| 49 | I0-28080 830-0 | BOLT; STRAINER, OIL PUMP | 2 | 0008-0211 | 4JA1 | (B) M8X30 FLANGE | ||
| 35 | I8-97036 830-0 | COVER; OIL PUMP | 1 | 0008-0211 | 4JA1 | |||
| 2 | I5-13165 004-0 | SEAT; SPR | 1 | 0008-0611 | 4JA1 | |||
| 49 | I0-28080 835-0 | BOLT; STRAINER, OIL PUMP | 2 | 0212-0611 | 4JA1 | (B) M8X30 FLANGE | ||
| 45 | I0-81124 030-0 | PIN; SPLIT, RELIEF VLV | 1 | 0612- | 4JA1-T | EURO 2 | ||
| 19 | I8-94384 778-1 | GEAR SET; OIL PUMP | 1 | 0008-0611 | 4JA1 | |||
| 35 | I8-97203 876-0 | COVER; OIL PUMP | 1 | 0612- | 4JA1-T | EURO 2 | ||
| 35 | I8-97203 876-0 | COVER; OIL PUMP | 1 | 0212-0611 | 4JA1 | |||
| 78 | I8-94454 199-0 | BOLT; EYE JOINT, OIL PIPE | 1 | 0008- | 4JA1 | M8X23 | ||
| 45 | I9-08104 030-0 | PIN; SPLIT, RELIEF VLV | 1 | 0008-0611 | 4JA1 | EURO 2 | ||
| 42 | I8-97089 824-0 | STRAINER; OIL, OIL PUMP | 1 | 0212-0611 | 4JA1 | |||
| 49 | I0-28050 830-0 | BOLT; STRAINER, OIL PUMP | 2 | 0008- | 4JA1 | (B) M8X30 FLANGE | ||
| 2 | I5-13165 004-0 | SEAT; SPR | 1 | 0612- | 4JA1-T | EURO 2 | ||
| 1 | I8-97069 738-3 | PUMP ASM; OIL | 1 | 0008-0409 | 4JA1 | |||
| 29 | I0-28080 825-0 | BOLT; OIL PUMP | 2 | 0612- | 4JA1-T | M8X25 FLANGE EURO 2 | ||
| 45 | I0-81124 030-0 | PIN; SPLIT, RELIEF VLV | 1 | 0008- | 4JA1 | EURO 2 |
