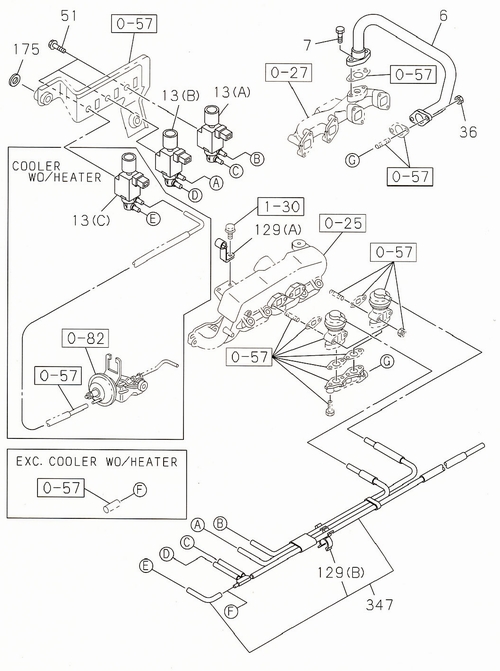

0-56 | EMISSION SYSTEM
PANTHER
PANTHER
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 7 | I8-98048 437-0 | BOLT; BRKT, EGR PIPE | 2 | 0612- | 4JA1-T | EURO 2, M8 X 40 FLANGE | ||
| 13 | I8-94384 336-0 | VAVLE; VAC SW | 1 | 0612- | 4JA1-T | (C), EURO 2 | ||
| 6 | I8-97118 378-1 | PIPE; EGR | 1 | 0612- | 4JA1-T | EURO 2 | ||
| 129 | I1-09700 843-0 | CLIP; VAC HOSE | 1 | 0612- | 4JA1-T | (A), ID=14 | ||
| 13 | I8-97171 030-0 | VAVLE; VAC SW | 1 | 0612- | 4JA1-T | (B), EURO 2 | ||
| 347 | I8-98020 907-0 | HOSE ASM; VACCUM, EGR | 2 | 0612- | 4JA1-T | |||
| 51 | I0-20800 508-0 | BOLT; VAC SW | 2 | 0612- | 4JA1-T | M5X8 | ||
| 36 | I0-91180 208-0 | NUT; EGR PIPE | 2 | 0612- | 4JA1-T | M8 FLANGE | ||
| 7 | I8-97189 522-0 | BOLT; BRKT, EGR PIPE | 2 | 0612- | 4JA1-T | EURO 2, M8 X 40 FLANGE | ||
| 129 | I8-94368 499-0 | CLIP; VAC HOSE | 1 | 0612- | 4JA1-T | (AB), ID=14, 5 & 7X4 | ||
| 13 | I8-97043 750-0 | VAVLE; VAC SW | 1 | 0612- | 4JA1-T | (A), EURO 2 | ||
| 6 | I8-97371 321-1 | PIPE; EGR | 1 | 0612- | 4JA1-T | EURO 2 | ||
| 51 | I0-20800 508-0 | BOLT; VAC SW | 1 | 0612- | 4JA1-T | M5X8, COOLER W/O HEATER | ||
| 175 | I9-09164 706-0 | WASHER; PL, BRKT | 1 | 0612- | 4JA1-T | EXC.AIR CON ROOF MOUNTED COOLER W/O HEATER ID=16, 4 OD=18 |
