0-60 | ENGINE ELECTRICAL CONTROL PARTS
PANTHER
PANTHER
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

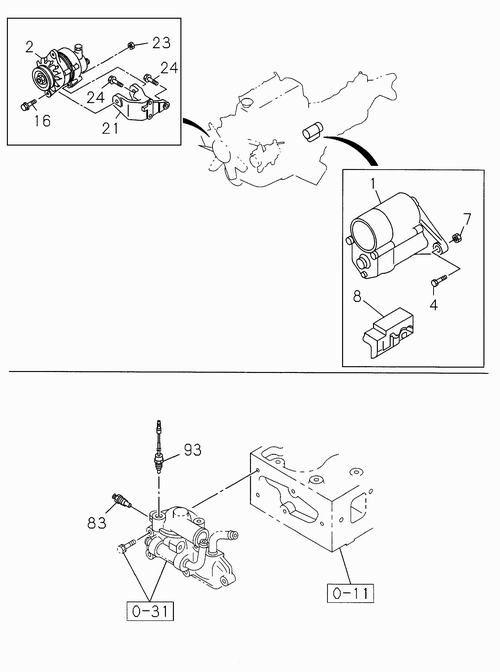

| 16 | I0-28086 013-0 | BOLT; GEN | 1 | 0008-0611 | 4JA1 | M10X130 | ||
| 4 | I0-28051 270-0 | BOLT; STARTER | 2 | 0008- | 4JA1 | M/T MSG 5 SPEED (M75) M12X70 FLANGE | ||
| 8 | I8-97351 456-0 | SPACER; STARTER | 1 | 0207-0611 | 4JA1 | |||
| 2 | I8-97187 657-A | GENERATOR ASM | 1 | 0008- | 4JA1-T | 12V 50A, IND EXC. A/C ROOF MAUNTED LM, SMART, SMART FF, RYL, RYL FF EURO 2 | ||
| 8 | I8-94133 764-3 | SPACER; STARTER | 1 | 0008-0206 | 4JA1 | |||
| 23 | I7-05110 010-A | NUT; GEN | 1 | 0612- | 4JA1-T | M10 FLANGE | ||
| 2 | I8-97957 071-A | GENERATOR ASM | 1 | 0612- | 4JA1-T | 12V 60A, IND AIR COND ROOF MAUNTED LS TURBO, TOUR, GTOUR EURO 2 | ||
| 24 | I0-50541 070-0 | BOLT; GEN BRAKET | 2 | 0612- | 4JA1-T | M10X70 W/LK WASHER | ||
| 16 | I0-28086 013-0 | BOLT; GEN | 1 | 0612- | 4JA1-T | M10X130, EURO 2 | ||
| 4 | I0-28081 270-0 | BOLT; STARTER | 2 | 0008- | 4JA1 | M/T MSG 5 SPEED (M75) M12X70 FLANGE | ||
| 23 | I0-91150 210-0 | NUT; GEN | 1 | 0612- | 4JA1-T | M10 FLANGE | ||
| 24 | I0-50541 035-0 | BOLT; GEN BRAKET | 1 | 0612- | 4JA1-T | M10X35 W/LK WASHER EURO 2 | ||
| 7 | I0-91180 112-0 | NUT; STARTER | 2 | 0008- | 4JA1 | M12 | ||
| 21 | I8-97120 367-1 | BRAKET; GEN | 1 | 0008- | 4JA1 | |||
| 23 | I7-05110 010-A | NUT; GEN | 1 | 0008- | 4JA1 | M10 FLANGE | ||
| 130 | I8-98020 893-0 | CONTROLLER; EGR | 1 | 0612- | 4JA1-T | EURO 2 | ||
| 83 | I8-94235 691-0 | THERMOMETER UNIT | 1 | 0612- | 4JA1-T | DENSO | ||
| 93 | I8-97028 283-0 | SWITCH; THERMO, A/C CUT | 1 | 0008- | 4JA1 | WAGON (TB**V*) TURBOCHARGER<K51> A/T AISIN (RMD) | ||
| 4 | I8-97161 846-0 | BOLT; STARTER | 2 | 0612- | 4JA1-T | M12X60 EURO2 | ||
| 2 | I8-97187 657-A | GENERATOR ASM | 1 | 0008- | 4JA1 | 12V 50A, IND EXC. A/C ROOF MAUNTED LM, SMART, SMART FF, RYL RYL FF | ||
| 24 | I0-50041 035-0 | BOLT; GEN BRAKET | 1 | 0612- | 4JA1-T | M10X35 W/LK WASHER EURO 2 | ||
| 2 | I8-97957 071-A | GENERATOR ASM | 1 | 0008-0611 | 4JA1 | 12V 60A, IND AIR COND ROOF MAUNTED HI GRADE, BLCK PANTHER TOURING, GRAND TOURING | ||
| 83 | I8-94235 691-0 | THERMOMETER UNIT | 1 | 0008- | 4JA1 | DENSO | ||
| 24 | I0-50041 070-0 | BOLT; GEN BRAKET | 2 | 0612- | 4JA1-T | M10X70 W/LK WASHER | ||
| 83 | I8-94237 861-0 | THERMOMETER UNIT | 1 | 0612- | 4JA1-T | EURO 2 | ||
| 4 | I0-28081 270-0 | BOLT; STARTER | 2 | 0008- | 4JA1 | A/T AISIN (RMD) M12 X 70 FLANGE | ||
| 4 | I0-28051 270-0 | BOLT; STARTER | 2 | 0008- | 4JA1 | A/T AISIN (RMD) M12 X 70 FLANGE | ||
| 1 | I8-97957 512-A | STARTER ASM | 1 | 0008- | 4JA1-T | ALL VARIANT, EURO 2 | ||
| 24 | I0-50041 035-0 | BOLT; GEN BRAKET | 1 | 0008- | 4JA1 | M10X35 W/LK WASHER | ||
| 10 | I8-97060 926-1 | RELAY; STARTER | 1 | 0612- | 4JA1-T | 12V 20A, EURO 2 | ||
| 7 | I0-91150 112-0 | NUT; STARTER | 2 | 0008-0611 | 4JA1 | M12 | ||
| 21 | I8-97562 610-A | BRAKET; GEN | 1 | 0612- | 4JA1-T | EURO 2 | ||
| 24 | I0-50541 070-0 | BOLT; GEN BRAKET | 2 | 0008- | 4JA1 | M10X70 W/LK WASHER | ||
| 83 | I8-94237 861-0 | THERMOMETER UNIT | 1 | 0008- | 4JA1 | YAZAKI | ||
| 10 | I8-97060 926-1 | RELAY; STARTER | 1 | 0008-0611 | 4JA1 | 12V 20A | ||
| 24 | I0-50041 070-0 | BOLT; GEN BRAKET | 2 | 0008- | 4JA1 | M10X70 W/LK WASHER | ||
| 133 | I0-28650 616-0 | BOLT; EGR CONTROLLER | 1 | 0612- | 4JA1-T | M6X16, EURO 2 | ||
| 7 | I0-91180 112-0 | NUT; STARTER | 2 | 0612- | 4JA1-T | M12 EURO2 | ||
| 7 | I0-91150 112-0 | NUT; STARTER | 2 | 0612- | 4JA1-T | M12 EURO2 | ||
| 23 | I0-91150 210-0 | NUT; GEN | 1 | 0008- | 4JA1 | M10 FLANGE | ||
| 1 | I8-97957 512-A | STARTER ASM | 1 | 0008- | 4JA1 | 12V 2.0 KW, ALL VARIANT | ||
| 24 | I0-50541 035-0 | BOLT; GEN BRAKET | 1 | 0008- | 4JA1 | M10X35 W/LK WASHER | ||
| 8 | I8-97351 456-0 | SPACER; STARTER | 1 | 0612- | 4JA1-T | EURO2 |
