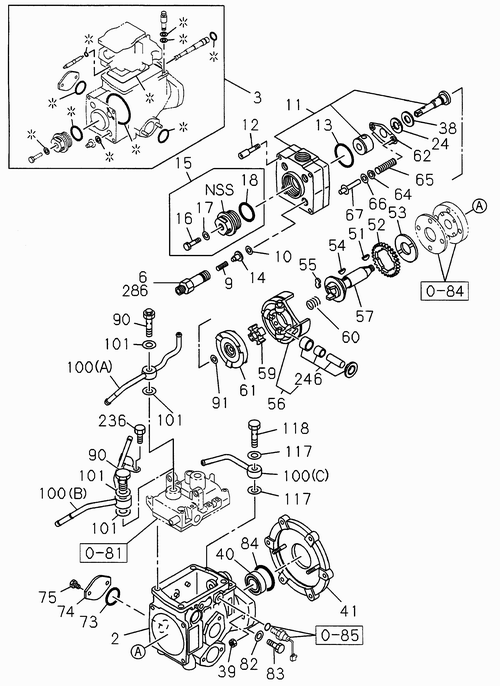

| 57 |
I8-94433 759-0 |
|
SHAFT; DRIVE, INJ PUMP |
1 |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-1) (FOR ASSY 8-97259 883-0) |
| 66 |
I8-97189 370-0 |
|
SHIM; PLUNGER SPRING, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) T=3, 10 |
| 91 |
I8-94227 531-0 |
|
SHIM; PLUNGER, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) T=1.96 |
| 38 |
I8-94227 514-0 |
|
SHIM; PLUNGER BARREL, INJ PUMP |
1 |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) |
| 61 |
I8-97322 847-0 |
|
CAV; DISC, PLUNGER, INJ PUMP |
1 |
0612- |
|
4JA1-T |
(FOR ASSY 8-98022 003-0) |
| 91 |
I8-94227 546-0 |
|
SHIM; PLUNGER, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) T=2.26 |
| 91 |
I8-94227 532-0 |
|
SHIM; PLUNGER, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) T=1.98 |
| 40 |
I8-97147 034-0 |
|
SEAL; OIL, CM/SHF FRT, INJ PUMP |
1 |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) |
| 61 |
I8-97032 165-0 |
|
CAV; DISC, PLUNGER, INJ PUMP |
1 |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) |
| 91 |
I8-94227 534-0 |
|
SHIM; PLUNGER, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) T=2.02 |
| 91 |
I8-94111 659-0 |
|
SHIM; PLUNGER, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) T=1.76 |
| 56 |
I8-97211 756-0 |
|
ROLLER ASM; TIMER, INJ PUMP |
1 |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) |
| 66 |
I8-97189 371-0 |
|
SHIM; PLUNGER SPRING, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) T=3, 20 |
| 66 |
I8-97189 363-0 |
|
SHIM; PLUNGER SPRING, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) T=2, 40 |
| 91 |
I8-94227 549-0 |
|
SHIM; PLUNGER, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) T=2.32 |
| 51 |
I8-94239 370-0 |
|
KEY; DRIVE GEAR, INJ PUMP |
1 |
0612- |
|
4JA1-T |
(FOR ASSY 8-98022 003-0) |
| 10 |
I8-94247 716-0 |
|
GASKET; DELIVERY VLV, INJ PUMP |
4 |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) |
| 51 |
I8-94239 370-0 |
|
KEY; DRIVE GEAR, INJ PUMP |
1 |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) |
| 24 |
I8-94227 515-0 |
|
WASHER; PLUNGER, INJ PUMP |
1 |
0612- |
|
4JA1-T |
(FOR ASSY 8-98022 003-0) |
| 91 |
I8-94227 565-0 |
|
SHIM; PLUNGER, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) T=2.64 |
| 100 |
I8-97328 708-0 |
|
PIPE; FUEL INJ PUMP |
1 |
0612- |
|
4JA1-T |
(FOR ASSY 8-98022 003-0) (A) |
| 14 |
I8-94174 802-0 |
|
VALVE; DELIVERY, INJ PUMP |
4 |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) |
| 91 |
I8-94227 567-0 |
|
SHIM; PLUNGER, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) T=2.68 |
| 66 |
I8-97189 367-0 |
|
SHIM; PLUNGER SPRING, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) T=2, 80 |
| 66 |
I8-97189 369-0 |
|
SHIM; PLUNGER SPRING, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) T=3, 00 |
| 246 |
I8-97163 172-0 |
|
ROLLER KIT; INJ PUMP |
1 |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-97959 006-0) |
| 91 |
I8-94227 576-0 |
|
SHIM; PLUNGER, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) T=2.86 |
| 66 |
I8-97189 365-0 |
|
SHIM; PLUNGER SPRING, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) T=2, 60 |
| 13 |
I8-97233 117-0 |
|
GASKET; DISTR HD, INJPUMP |
1 |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) |
| 39 |
I8-97119 344-0 |
|
NUT; MTG BRKT FIX |
2 |
0612- |
|
4JA1-T |
(FOR ASSY 8-98022 003-0) |
| 66 |
I8-94433 205-0 |
|
SHIM; PLUNGER SPRING, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) |
| 15 |
I8-97231 942-0 |
|
PLUG ASM; DISTR, INJ PUMP |
1 |
0612- |
|
4JA1-T |
(FOR ASSY 8-98022 003-0) |
| 66 |
I8-94227 518-0 |
|
SHIM; PLUNGER SPRING, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-1) (FOR ASSY 8-97259 883-0) |
| 17 |
I8-94433 808-0 |
|
GASKET; BOLT, DISTR PLUG INJ PUMP |
1 |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) |
| 91 |
I8-94227 569-0 |
|
SHIM; PLUNGER, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) T=2.72 |
| 91 |
I8-94227 570-0 |
|
SHIM; PLUNGER, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) T=2.74 |
| 66 |
I8-94227 523-0 |
|
SHIM; PLUNGER SPRING, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) |
| 3 |
I8-97383 766-0 |
|
REPAIR KIT; FUEL INJ PUMP |
1 |
0612- |
|
4JA1-T |
(FOR ASSY 8-98022 003-0) |
| 100 |
I8-94445 576-0 |
|
PIPE; FUEL INJ PUMP |
1 |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (B) |
| 66 |
I8-94227 520-0 |
|
SHIM; PLUNGER SPRING, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) |
| 66 |
I8-97189 362-0 |
|
SHIM; PLUNGER SPRING, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) T=2, 30 |
| 9 |
I8-94174 803-0 |
|
SPRING; DELIVERY VLV |
4 |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) |
| 66 |
I8-94433 204-0 |
|
SHIM; PLUNGER SPRING, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) |
| 286 |
I8-97227 581-1 |
|
VALVE; PRESURE, CONT |
4 |
0612- |
|
4JA1-T |
(FOR ASSY 8-98022 003-0) |
| 57 |
I8-97217 211-0 |
|
SHAFT; DRIVE, INJ PUMP |
1 |
0612- |
|
4JA1-T |
(FOR ASSY 8-98022 003-0) |
| 41 |
I8-94174 843-0 |
|
BRACKET; INJ PUMP HSG |
1 |
0612- |
|
4JA1-T |
(FOR ASSY 8-98022 003-0) |
| 66 |
I8-97189 360-0 |
|
SHIM; PLUNGER SPRING, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) T=2, 10 |
| 16 |
I8-94174 818-0 |
|
BOLT; DISTR PLUG, INJPUMP |
1 |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) |
| 66 |
I8-94227 521-0 |
|
SHIM; PLUNGER SPRING, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) |
| 91 |
I8-94227 543-0 |
|
SHIM; PLUNGER, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) T=2.20 |
| 13 |
I8-97233 117-0 |
|
GASKET; DISTR HD, INJPUMP |
1 |
0612- |
|
4JA1-T |
(FOR ASSY 8-98022 003-0) |
| 17 |
I8-94227 602-0 |
|
GASKET; BOLT, DISTR PLUG INJ PUMP |
1 |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) |
| 66 |
I8-94227 522-0 |
|
SHIM; PLUNGER SPRING, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) |
| 38 |
I8-94227 514-0 |
|
SHIM; PLUNGER BARREL, INJ PUMP |
1 |
0612- |
|
4JA1-T |
(FOR ASSY 8-98022 003-0) |
| 229 |
I8-97049 904-0 |
|
BOLT; BRKT |
1 |
0612- |
|
4JA1-T |
(FOR ASSY 8-98022 003-0) |
| 66 |
I8-97146 139-0 |
|
SHIM; PLUNGER SPRING, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) T=0, 40 |
| 66 |
I8-97189 361-0 |
|
SHIM; PLUNGER SPRING, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) |
| 14 |
I8-97172 541-0 |
|
VALVE; DELIVERY, INJ PUMP |
4 |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) |
| 91 |
I8-94227 536-0 |
|
SHIM; PLUNGER, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) T=2.06 |
| 54 |
I8-94227 481-0 |
|
KEY; FEED PUMP, INJ PUMP |
1 |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) |
| 91 |
I8-94111 661-0 |
|
SHIM; PLUNGER, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) T=1.80 |
| 91 |
I8-94227 541-0 |
|
SHIM; PLUNGER, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) T=2.16 |
| 11 |
I8-97144 353-0 |
|
HEAD ASM; DISTR, INJ PUMP |
1 |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) |
| 91 |
I8-94227 568-0 |
|
SHIM; PLUNGER, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) T=2.70 |
| 59 |
I8-94433 761-0 |
|
DISC; DRIVE, INJ PUMP |
1 |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) |
| 91 |
I8-94227 548-0 |
|
SHIM; PLUNGER, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) T=2.30 |
| 91 |
I8-94111 663-0 |
|
SHIM; PLUNGER, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) T=1.84 |
| 66 |
I8-97146 141-0 |
|
SHIM; PLUNGER SPRING, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) T=0, 70 |
| 15 |
I8-94174 817-0 |
|
PLUG ASM; DISTR, INJ PUMP |
1 |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) |
| 66 |
I8-94227 518-0 |
|
SHIM; PLUNGER SPRING, INJ PUMP |
AR |
0612- |
|
4JA1-T |
(FOR ASSY 8-98022 003-0) T=0, 50 |
| 91 |
I8-94111 662-0 |
|
SHIM; PLUNGER, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) T=1.82 |
| 91 |
I8-94227 550-0 |
|
SHIM; PLUNGER, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) T=2.34 |
| 91 |
I8-94227 539-0 |
|
SHIM; PLUNGER, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) T=2.12 |
| 100 |
I8-97166 975-0 |
|
PIPE; FUEL INJ PUMP |
1 |
0008- |
|
4JA1 |
(FOR ASSY 8-97259 883-0) |
| 91 |
I8-94227 571-0 |
|
SHIM; PLUNGER, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) T=2.76 |
| 91 |
I8-94227 557-0 |
|
SHIM; PLUNGER, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) T=2.48 |
| 65 |
I8-94433 816-0 |
|
SPRING KIT; PLUNGER, INJ PUMP |
1 |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) |
| 91 |
I8-94227 564-0 |
|
SHIM; PLUNGER, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) T=2.62 |
| 10 |
I8-94247 716-0 |
|
GASKET; DELIVERY VLV, INJ PUMP |
4 |
0612- |
|
4JA1-T |
(FOR ASSY 8-98022 003-0) |
| 66 |
I8-94227 519-0 |
|
SHIM; PLUNGER SPRING, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) |
| 41 |
I8-94174 843-0 |
|
BRACKET; INJ PUMP HSG |
1 |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) |
| 62 |
I8-94227 516-0 |
|
SEAT; PLUNGER SPR, INJ PUMP |
1 |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) |
| 91 |
I8-94111 665-0 |
|
SHIM; PLUNGER, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) T=1.88 |
| 64 |
I8-94227 517-0 |
|
SEAT; PLUNGER SPRING LWR, INJ PUMP |
2 |
0612- |
|
4JA1-T |
(FOR ASSY 8-98022 003-0) |
| 11 |
I8-97032 166-0 |
|
HEAD ASM; DISTR, INJ PUMP |
1 |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) |
| 13 |
I8-94227 527-0 |
|
GASKET; DISTR HD, INJPUMP |
1 |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) |
| 65 |
I8-97214 522-0 |
|
SPRING KIT; PLUNGER, INJ PUMP |
1 |
0612- |
|
4JA1-T |
(FOR ASSY 8-98022 003-0) |
| 101 |
I8-97119 187-0 |
|
GASKET; OVERFLOW VLV, INJ PUMP |
2 |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97959 006-0) (FOR ASSY 8-97959 008-0) (FOR ASSY 8-97959 009-0) |
| 91 |
I8-94227 529-0 |
|
SHIM; PLUNGER, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) T=1.92 |
| 6 |
I8-94367 330-0 |
|
HOLDER; DELIVERY VLV, INJ PUMP |
4 |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) |
| 91 |
I8-94227 552-0 |
|
SHIM; PLUNGER, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) T=2.38 |
| 12 |
I8-94257 670-0 |
|
SCREW; DISTR HD, INJ PUMP |
4 |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) |
| 66 |
I8-94433 209-0 |
|
SHIM; PLUNGER SPRING, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) T=1, 70 |
| 39 |
I8-97119 344-0 |
|
NUT; MTG BRKT FIX |
2 |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) |
| 15 |
I8-97144 354-0 |
|
PLUG ASM; DISTR, INJ PUMP |
1 |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) |
| 53 |
I8-94227 484-0 |
|
WASHER; GOV DRIVE GEAR INJ PUMP |
1 |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) |
| 66 |
I8-97146 142-0 |
|
SHIM; PLUNGER SPRING, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) T=1, 90 |
| 246 |
I8-97218 980-0 |
|
ROLLER KIT; INJ PUMP |
1 |
0612- |
|
4JA1-T |
(FOR ASSY 8-98022 003-0) |
| 53 |
I8-94317 488-0 |
|
WASHER; GOV DRIVE GEAR INJ PUMP |
1 |
0612- |
|
4JA1-T |
(FOR ASSY 8-98022 003-0) |
| 100 |
I8-97139 477-0 |
|
PIPE; FUEL INJ PUMP |
1 |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 860-1) |
| 59 |
I8-97144 349-1 |
|
DISC; DRIVE, INJ PUMP |
1 |
0612- |
|
4JA1-T |
(FOR ASSY 8-98022 003-0) |
| 91 |
I8-94227 562-0 |
|
SHIM; PLUNGER, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) T=2.58 |
| 60 |
I8-87214 524-0 |
|
SPRING; DRIVE DISC, INJ PUMP |
1 |
0612- |
|
4JA1-T |
(FOR ASSY 8-98022 003-0) |
| 236 |
I8-94343 302-0 |
|
BOLT; PIPE |
1 |
0008- |
|
4JA1 |
(FOR ASSY 8-97259 883-0) |
| 56 |
I8-94433 760-0 |
|
ROLLER ASM; TIMER, INJ PUMP |
1 |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) |
| 24 |
I8-94227 515-0 |
|
WASHER; PLUNGER, INJ PUMP |
1 |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) |
| 236 |
I8-97094 111-0 |
|
BOLT; PIPE |
1 |
0612- |
|
4JA1-T |
(FOR ASSY 8-98022 003-0) |
| 54 |
I8-94227 481-0 |
|
KEY; FEED PUMP, INJ PUMP |
1 |
0612- |
|
4JA1-T |
(FOR ASSY 8-98022 003-0) |
| 12 |
I8-94257 670-0 |
|
SCREW; DISTR HD, INJ PUMP |
4 |
0612- |
|
4JA1-T |
(FOR ASSY 8-98022 003-0) |
| 66 |
I8-94227 524-0 |
|
SHIM; PLUNGER SPRING, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) |
| 91 |
I8-94111 658-0 |
|
SHIM; PLUNGER, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) T=1.74 |
| 40 |
I8-97147 034-0 |
|
SEAL; OIL, CM/SHF FRT, INJ PUMP |
1 |
0612- |
|
4JA1-T |
(FOR ASSY 8-98022 003-0) |
| 61 |
I8-97211 757-0 |
|
CAV; DISC, PLUNGER, INJ PUMP |
1 |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) |
| 62 |
I8-94227 516-1 |
|
SEAT; PLUNGER SPR, INJ PUMP |
1 |
0612- |
|
4JA1-T |
(FOR ASSY 8-98022 003-0) |
| 55 |
I8-94169 528-0 |
|
DAMPER; CAM DRIVE, INJ PUMP |
2 |
0612- |
|
4JA1-T |
(FOR ASSY 8-98022 003-0) |
| 91 |
I8-94227 566-0 |
|
SHIM; PLUNGER, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) T=2.66 |
| 66 |
I8-97146 140-0 |
|
SHIM; PLUNGER SPRING, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) T=0, 60 |
| 66 |
I8-94433 208-0 |
|
SHIM; PLUNGER SPRING, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) T=1, 60 |
| 91 |
I8-94227 542-0 |
|
SHIM; PLUNGER, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) T=2.18 |
| 91 |
I8-94227 537-0 |
|
SHIM; PLUNGER, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) T=2.08 |
| 66 |
I8-97189 366-0 |
|
SHIM; PLUNGER SPRING, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) T=2, 70 |
| 91 |
I8-94227 544-0 |
|
SHIM; PLUNGER, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) T=2.22 |
| 118 |
I8-87202 330-0 |
|
BOLT; EYE, FUEL INL, INJ PUMP |
1 |
0612- |
|
4JA1-T |
(FOR ASSY 8-98022 003-0) |
| 100 |
I8-98050 936-0 |
|
PIPE; FUEL INJ PUMP |
1 |
0612- |
|
4JA1-T |
(FOR ASSY 8-98022 003-0) (B) |
| 91 |
I8-94227 575-0 |
|
SHIM; PLUNGER, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-1) (FOR ASSY 8-97259 883-0) (FOR ASSY 8-98022 003-0) T=2.84 |
| 91 |
I8-94227 554-0 |
|
SHIM; PLUNGER, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) T=2.42 |
| 51 |
I8-94239 370-0 |
|
KEY; DRIVE GEAR, INJ PUMP |
1 |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) |
| 236 |
I8-94313 203-0 |
|
BOLT; PIPE |
1 |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 860-1) |
| 91 |
I8-94227 574-0 |
|
SHIM; PLUNGER, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) T=2.82 |
| 66 |
I8-94433 207-0 |
|
SHIM; PLUNGER SPRING, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) T=1, 40 |
| 66 |
I8-97189 368-0 |
|
SHIM; PLUNGER SPRING, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) T=2, 90 |
| 18 |
I8-94227 637-0 |
|
GASKET; DISTR PLUG, INJ PUMP |
1 |
0612- |
|
4JA1-T |
(FOR ASSY 8-98022 003-0) |
| 91 |
I8-94227 556-0 |
|
SHIM; PLUNGER, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) T=2.46 |
| 66 |
I8-94433 206-0 |
|
SHIM; PLUNGER SPRING, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) |
| 91 |
I8-94227 530-0 |
|
SHIM; PLUNGER, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) T=1.94 |
| 117 |
I8-97249 545-0 |
|
GASKET; EYE BOLT, INJPUMP |
2 |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-97300 205-0) (FOR ASSY 8-97300 207-0) (FOR ASSY 8-97300 208-0) (FOR ASSY 8-98022 003-0) |
| 91 |
I8-94227 563-0 |
|
SHIM; PLUNGER, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) T=2.60 |
| 91 |
I8-94227 555-0 |
|
SHIM; PLUNGER, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) T=2.44 |
| 117 |
I8-97117 187-0 |
|
GASKET; EYE BOLT, INJPUMP |
2 |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) |
| 11 |
I8-97322 582-0 |
|
HEAD ASM; DISTR, INJ PUMP |
1 |
0612- |
|
4JA1-T |
(FOR ASSY 8-98022 003-0) |
| 91 |
I8-94111 664-0 |
|
SHIM; PLUNGER, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) T=1.86 |
| 91 |
I8-94227 578-0 |
|
SHIM; PLUNGER, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) T=2.90 |
| 91 |
I8-94227 538-0 |
|
SHIM; PLUNGER, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) T=2.10 |
| 101 |
I8-97249 545-0 |
|
GASKET; OVERFLOW VLV, INJ PUMP |
2 |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-97300 205-0) (FOR ASSY 8-97300 207-0) (FOR ASSY 8-97300 208-0) (FOR ASSY 8-98022 003-0) |
| 91 |
I8-94227 533-0 |
|
SHIM; PLUNGER, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) T=2.00 |
| 91 |
I8-94227 528-0 |
|
SHIM; PLUNGER, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) T=1.90 |
| 3 |
I8-94228 545-0 |
|
REPAIR KIT; FUEL INJ PUMP |
1 |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) |
| 91 |
I8-94227 561-0 |
|
SHIM; PLUNGER, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) T=2.56 |
| 91 |
I8-94227 545-0 |
|
SHIM; PLUNGER, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) T=2.24 |
| 2 |
I8-97322 859-0 |
|
HOUSING ASM; PUMP, FUEL INJ |
1 |
0612- |
|
4JA1-T |
(FOR ASSY 8-98022 003-0) |
| 91 |
I8-94227 535-0 |
|
SHIM; PLUNGER, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) T=2.04 |
| 91 |
I8-94227 547-0 |
|
SHIM; PLUNGER, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) T=2.28 |
| 2 |
I8-94445 579-0 |
|
HOUSING ASM; PUMP, FUEL INJ |
1 |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97259 883-0) |
| 91 |
I8-94227 577-0 |
|
SHIM; PLUNGER, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) T=2.88 |
| 91 |
I8-94111 660-0 |
|
SHIM; PLUNGER, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) T=1.78 |
| 66 |
I8-97189 364-0 |
|
SHIM; PLUNGER SPRING, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) T=2, 50 |
| 56 |
I8-97224 529-0 |
|
ROLLER ASM; TIMER, INJ PUMP |
1 |
0612- |
|
4JA1-T |
(FOR ASSY 8-98022 003-0) |
| 52 |
I8-94227 483-0 |
|
GEAR; GOV DRIVE, INJ PUMP |
1 |
0612- |
|
4JA1-T |
(FOR ASSY 8-98022 003-0) |
| 91 |
I8-94227 572-0 |
|
SHIM; PLUNGER, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) T=2.78 |
| 91 |
I8-94227 551-0 |
|
SHIM; PLUNGER, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) T=2.36 |
| 91 |
I8-94227 549-1 |
|
SHIM; PLUNGER, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) T=2.32 |
| 59 |
I8-97144 349-0 |
|
DISC; DRIVE, INJ PUMP |
1 |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) |
| 91 |
I8-94227 573-0 |
|
SHIM; PLUNGER, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) T=2.80 |
| 2 |
I8-94418 037-0 |
|
HOUSING ASM; PUMP, FUEL INJ |
1 |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 860-1) |
| 13 |
I8-94227 527-0 |
|
GASKET; DISTR HD, INJPUMP |
1 |
0612- |
|
4JA1-T |
(FOR ASSY 8-98022 003-0) |
| 55 |
I8-94169 528-0 |
|
DAMPER; CAM DRIVE, INJ PUMP |
2 |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) |
| 100 |
I8-97119 194-0 |
|
PIPE; FUEL INJ PUMP |
1 |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (C) |
| 118 |
I8-94379 688-0 |
|
BOLT; EYE, FUEL INL, INJ PUMP |
1 |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-97959 006-0) |
| 91 |
I8-94227 559-0 |
|
SHIM; PLUNGER, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) T=2.52 |
| 66 |
I8-97189 372-0 |
|
SHIM; PLUNGER SPRING, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) T=3, 30 |
| 91 |
I8-94227 560-0 |
|
SHIM; PLUNGER, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) T=2.54 |
| 91 |
I8-94227 553-0 |
|
SHIM; PLUNGER, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) T=2.40 |
| 52 |
I8-94227 483-0 |
|
GEAR; GOV DRIVE, INJ PUMP |
1 |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) |
| 18 |
I8-94227 637-0 |
|
GASKET; DISTR PLUG, INJ PUMP |
1 |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) |
| 91 |
I8-94227 558-0 |
|
SHIM; PLUNGER, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) T=2.50 |
| 64 |
I8-94227 517-0 |
|
SEAT; PLUNGER SPRING LWR, INJ PUMP |
2 |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) |
| 91 |
I8-94227 540-0 |
|
SHIM; PLUNGER, INJ PUMP |
AR |
0008- |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-98022 003-0) T=2.14 |
