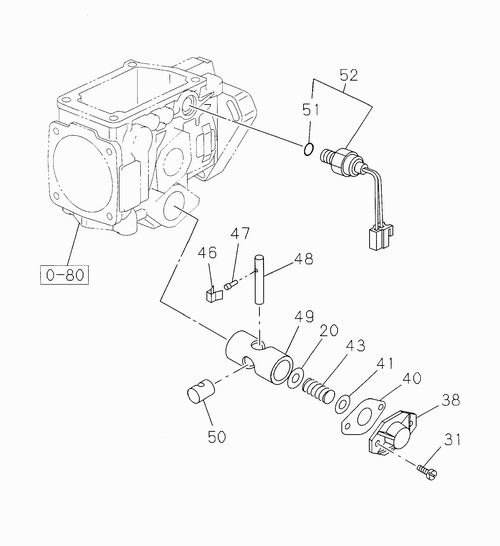

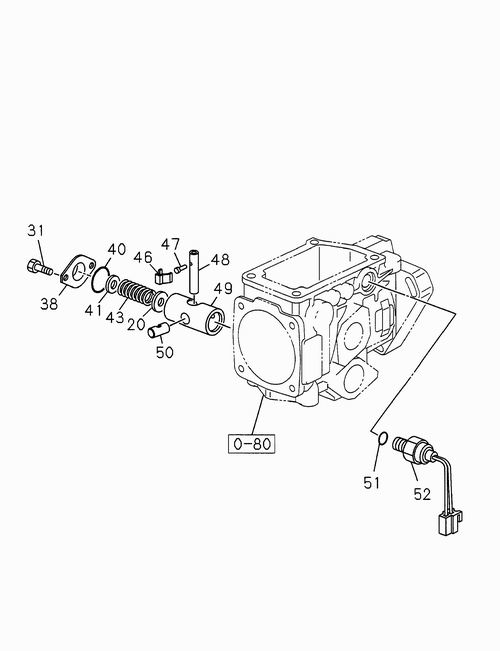

| 52 |
I8-94403 289-1 |
|
SENSOR; TIMING, TACHOME TER, INJ PUMP |
1 |
0612- |
|
4JA1-T |
(FOR ASSY 8-98022 003-0) |
| 38 |
I8-94227 500-0 |
|
COVER; TIMER, INJ PUMP |
1 |
0612- |
|
4JA1-T |
(FOR ASSY 8-98022 003-0) |
| 41 |
I8-94227 496-0 |
|
SHIM; OUTER SPRING, TIMER INJ PUMP |
AR |
0008-0611 |
|
4JA1 |
(FOR ASSY 8-97300 207-0) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-97300 205-0) (FOR ASSY 8-97300 208-0) |
| 49 |
I8-97231 928-0 |
|
PISTON; TIMER, INJ PUMP |
1 |
0612- |
|
4JA1-T |
(FOR ASSY 8-97300 208-0) |
| 41 |
I8-94227 498-0 |
|
SHIM; OUTER SPRING, TIMER INJ PUMP |
AR |
0008-0611 |
|
4JA1 |
(FOR ASSY 8-97300 207-0) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-97300 205-0) (FOR ASSY 8-97300 208-0) T=1.00 |
| 48 |
I8-97214 493-0 |
|
PIN; ROLLER HOLDER, TIMER INJ PUMP |
1 |
0612- |
|
4JA1-T |
(FOR ASSY 8-97300 208-0) |
| 41 |
I8-94227 496-0 |
|
SHIM; OUTER SPRING, TIMER INJ PUMP |
AR |
0612- |
|
4JA1-T |
(FOR ASSY 8-98022 003-0) T=0.70 |
| 46 |
I8-94227 488-0 |
|
CLIP; HOLDER PIN, TIMER INJ PUMP |
1 |
0008-0611 |
|
4JA1 |
(FOR ASSY 8-97300 207-0) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-97300 205-0) (FOR ASSY 8-97300 208-0) |
| 43 |
I8-97328 702-0 |
|
SPRING; PISTON, TIMER, INJ PUMP |
1 |
0612- |
|
4JA1-T |
(FOR ASSY 8-97300 208-0) L=47 |
| 43 |
I8-94313 200-0 |
|
SPRING; PISTON, TIMER, INJ PUMP |
1 |
0008-0611 |
|
4JA1 |
(FOR ASSY 8-97300 207-0) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-97300 205-0) (FOR ASSY 8-97300 208-0) L=35.7 EFFECT TURN=5.1 |
| 48 |
I8-94227 486-0 |
|
PIN; ROLLER HOLDER, TIMER INJ PUMP |
1 |
0008-0611 |
|
4JA1 |
(FOR ASSY 8-97300 207-0) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-97300 205-0) (FOR ASSY 8-97300 208-0) |
| 41 |
I8-94121 620-0 |
|
SHIM; OUTER SPRING, TIMER INJ PUMP |
AR |
0008-0611 |
|
4JA1 |
(FOR ASSY 8-97300 207-0) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-97300 205-0) (FOR ASSY 8-97300 208-0) |
| 50 |
I8-94227 493-0 |
|
SLIDER; TIMER PISTON, INJ PUMP |
1 |
0008-0611 |
|
4JA1 |
(FOR ASSY 8-97300 207-0) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-97300 205-0) (FOR ASSY 8-97300 208-0) |
| 43 |
I8-97328 701-0 |
|
SPRING; PISTON, TIMER, INJ PUMP |
1 |
0612- |
|
4JA1-T |
(FOR ASSY 8-97300 208-0) L=44, 5 |
| 43 |
I8-94313 227-0 |
|
SPRING; PISTON, TIMER, INJ PUMP |
1 |
0008-0611 |
|
4JA1 |
(FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) |
| 20 |
I8-94227 495-0 |
|
SHIM; INNER SPRING, TIMER, INJ PUMP |
1 |
0612- |
|
4JA1-T |
(FOR ASSY 8-98022 003-0) T=0.60 |
| 41 |
I8-94227 499-0 |
|
SHIM; OUTER SPRING, TIMER INJ PUMP |
AR |
0612- |
|
4JA1-T |
(FOR ASSY 8-98022 003-0) T=1.20 |
| 43 |
I8-94313 200-0 |
|
SPRING; PISTON, TIMER, INJ PUMP |
1 |
0008-0611 |
|
4JA1 |
(FOR ASSY 8-97300 207-0) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-97300 205-0) (FOR ASSY 8-97300 208-0) L=35.7 EFFECT TURN=5.1 |
| 41 |
I8-94227 498-0 |
|
SHIM; OUTER SPRING, TIMER INJ PUMP |
AR |
0612- |
|
4JA1-T |
(FOR ASSY 8-98022 003-0) T=1.00 |
| 47 |
I8-94227 487-0 |
|
PIN; HOLDER PIN; TIMER, INJ PUMP |
1 |
0008-0611 |
|
4JA1 |
(FOR ASSY 8-97300 207-0) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-97300 205-0) (FOR ASSY 8-97300 208-0) |
| 40 |
I8-94227 491-0 |
|
GASKET; TIMER COVER; INJ PUMP |
1 |
0008-0611 |
|
4JA1 |
(FOR ASSY 8-97300 207-0) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-97300 205-0) (FOR ASSY 8-97300 208-0) |
| 49 |
I8-97144 351-0 |
|
PISTON; TIMER, INJ PUMP |
1 |
0008-0611 |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) |
| 51 |
I8-94227 671-0 |
|
GASKET; TIMING SENSOR, INJ PUMP |
1 |
0008-0611 |
|
4JA1 |
(FOR ASSY 8-97300 207-0) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-97300 208-0) |
| 41 |
I8-94227 499-0 |
|
SHIM; OUTER SPRING, TIMER INJ PUMP |
AR |
0008-0611 |
|
4JA1 |
(FOR ASSY 8-97300 207-0) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-97300 205-0) (FOR ASSY 8-97300 208-0) |
| 48 |
I8-97214 493-0 |
|
PIN; ROLLER HOLDER, TIMER INJ PUMP |
1 |
0612- |
|
4JA1-T |
(FOR ASSY 8-97300 208-0) |
| 41 |
I8-94227 498-0 |
|
SHIM; OUTER SPRING, TIMER INJ PUMP |
AR |
0008-0611 |
|
4JA1 |
(FOR ASSY 8-97300 207-0) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-97300 205-0) (FOR ASSY 8-97300 208-0) |
| 46 |
I8-94227 488-0 |
|
CLIP; HOLDER PIN, TIMER INJ PUMP |
1 |
0612- |
|
4JA1-T |
(FOR ASSY 8-97300 208-0) |
| 31 |
I8-94313 276-0 |
|
SCREW; TIMER COVER, INJ PUMP |
2 |
0008-0611 |
|
4JA1 |
(FOR ASSY 8-97300 207-0) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-97300 205-0) (FOR ASSY 8-97300 208-0) |
| 49 |
I8-97119 169-0 |
|
PISTON; TIMER, INJ PUMP |
1 |
0008-0611 |
|
4JA1 |
(FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) |
| 51 |
I8-94227 671-0 |
|
GASKET; TIMING SENSOR, INJ PUMP |
1 |
0612- |
|
4JA1-T |
(FOR ASSY 8-97300 208-0) |
| 50 |
I8-97218 961-0 |
|
SLIDER; TIMER PISTON, INJ PUMP |
1 |
0612- |
|
4JA1-T |
(FOR ASSY 8-97300 208-0) |
| 31 |
I8-97231 933-0 |
|
SCREW; TIMER COVER, INJ PUMP |
2 |
0612- |
|
4JA1-T |
(FOR ASSY 8-98022 003-0) |
| 48 |
I8-94227 486-0 |
|
PIN; ROLLER HOLDER, TIMER INJ PUMP |
1 |
0008-0611 |
|
4JA1 |
(FOR ASSY 8-97300 207-0) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-97300 205-0) (FOR ASSY 8-97300 208-0) |
| 20 |
I8-94227 495-0 |
|
SHIM; INNER SPRING, TIMER, INJ PUMP |
1 |
0008-0611 |
|
4JA1 |
(FOR ASSY 8-97300 207-0) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-97300 205-0) (FOR ASSY 8-97300 208-0) |
| 43 |
I8-94313 241-0 |
|
SPRING; PISTON, TIMER, INJ PUMP |
1 |
0008-0611 |
|
4JA1 |
(FOR ASSY 8-97300 207-0) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-97300 205-0) (FOR ASSY 8-97300 208-0) L=35.6 EFFECT TURN=5.4 |
| 41 |
I8-94227 499-0 |
|
SHIM; OUTER SPRING, TIMER INJ PUMP |
AR |
0008-0611 |
|
4JA1 |
(FOR ASSY 8-97300 207-0) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-97300 205-0) (FOR ASSY 8-97300 208-0) T=1.20 |
| 40 |
I8-97383 765-0 |
|
GASKET; TIMER COVER; INJ PUMP |
1 |
0612- |
|
4JA1-T |
(FOR ASSY 8-98022 003-0) |
| 43 |
I8-94313 241-0 |
|
SPRING; PISTON, TIMER, INJ PUMP |
1 |
0008-0611 |
|
4JA1 |
(FOR ASSY 8-97300 207-0) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-97300 205-0) (FOR ASSY 8-97300 208-0) L=35.6 EFFECT TURN=5.4 |
| 52 |
I8-94403 289-1 |
|
SENSOR; TIMING, TACHOME TER, INJ PUMP |
1 |
0008-0611 |
|
4JA1 |
(FOR ASSY 8-97300 207-0) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-97300 208-0) |
| 47 |
I8-94227 487-0 |
|
PIN; HOLDER PIN; TIMER, INJ PUMP |
1 |
0612- |
|
4JA1-T |
(FOR ASSY 8-97300 208-0) |
| 40 |
I8-97233 116-0 |
|
GASKET; TIMER COVER; INJ PUMP |
1 |
0008- |
|
4JA1 |
(FOR ASSY 8-97300 207-0) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-97300 205-0) (FOR ASSY 8-97300 208-0) |
| 43 |
I8-94227 496-0 |
|
SHIM; OUTER SPRING, TIMER INJ PUMP |
AR |
0008-0611 |
|
4JA1 |
(FOR ASSY 8-97300 207-0) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-97300 205-0) (FOR ASSY 8-97300 208-0) T=0.70 |
| 41 |
I8-94227 497-0 |
|
SHIM; OUTER SPRING, TIMER INJ PUMP |
AR |
0612- |
|
4JA1-T |
(FOR ASSY 8-98022 003-0) T=0.90 |
| 41 |
I8-94227 497-0 |
|
SHIM; OUTER SPRING, TIMER INJ PUMP |
AR |
0008-0611 |
|
4JA1 |
(FOR ASSY 8-97300 207-0) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-97300 205-0) (FOR ASSY 8-97300 208-0) T=0.90 |
| 43 |
I8-94386 591-0 |
|
SPRING; PISTON, TIMER, INJ PUMP |
1 |
0008-0611 |
|
4JA1 |
(FOR ASSY 8-97191 854-2) (FOR ASSY 8-97191 856-2) (FOR ASSY 8-97191 858-2) L=35.8 EFFECT TURN=5.7 |
| 41 |
I8-94121 620-0 |
|
SHIM; OUTER SPRING, TIMER INJ PUMP |
AR |
0612- |
|
4JA1-T |
(FOR ASSY 8-98022 003-0) T=2.40 |
| 41 |
I8-94227 497-0 |
|
SHIM; OUTER SPRING, TIMER INJ PUMP |
AR |
0008-0611 |
|
4JA1 |
(FOR ASSY 8-97300 207-0) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-97300 205-0) (FOR ASSY 8-97300 208-0) |
| 41 |
I8-94227 495-0 |
|
SHIM; OUTER SPRING, TIMER INJ PUMP |
AR |
0612- |
|
4JA1-T |
(FOR ASSY 8-98022 003-0) T=0.60 |
| 41 |
I8-94227 495-0 |
|
SHIM; OUTER SPRING, TIMER INJ PUMP |
AR |
0008-0611 |
|
4JA1 |
(FOR ASSY 8-97300 207-0) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-97300 205-0) (FOR ASSY 8-97300 208-0) |
| 43 |
I8-94313 671-0 |
|
SPRING; PISTON, TIMER, INJ PUMP |
1 |
0612- |
|
4JA1-T |
(FOR ASSY 8-97300 208-0) L=43 |
| 38 |
I8-94473 120-0 |
|
COVER; TIMER, INJ PUMP |
1 |
0008-0611 |
|
4JA1 |
(FOR ASSY 8-97300 207-0) (FOR ASSY 8-97191 860-2) (FOR ASSY 8-97259 883-2) (FOR ASSY 8-97300 205-0) (FOR ASSY 8-97300 208-0) |
