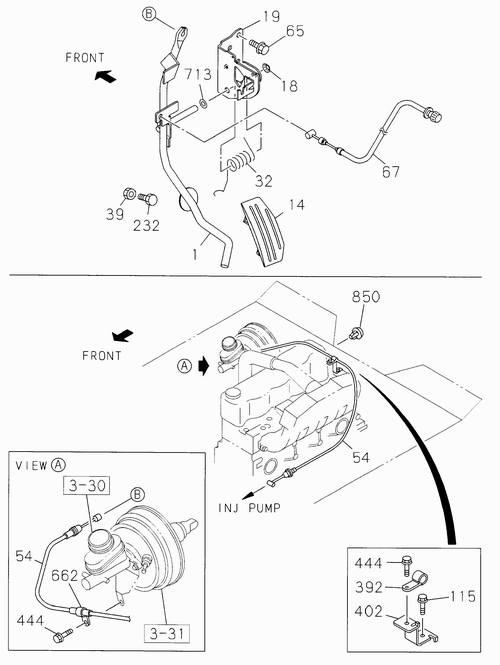

1-01 | ACCELERATOR PEDAL AND CONTROL
PANTHER
PANTHER
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 713 | I0-91610 508-0 | WASHER; PL | 1 | 0008- | 4JA1 | ID=8 | ||
| 32 | I8-97019 283-0 | SPRING; RITURN, ACCEL PDL | 1 | 0008- | 4JA1 | WAGON (TB**V*) A/T AISIN (RMD) | ||
| 54 | I8-98019 800-A | CABLE; ENG CONT | 1 | 0612- | 4JA1-T | IND, ALL VARIANT EURO 2 | ||
| 65 | I0-28050 610-0 | BOLT | 2 | 0008- | 4JA1 | M6X10 IND | ||
| 67 | I8-97102 189-A | CABLE ASM; IDLE CONT | 1 | 0008-0008 | 4JA1 | IND | ||
| 232 | I0-20800 625-0 | BOLT; STOPPER, ACCLE PDL | 1 | 0008-0107 | 4JA1 | M6X25 | ||
| 65 | I0-28080 610-0 | BOLT | 2 | 0008-0611 | 4JA1 | M6X10 IND | ||
| 65 | I0-28050 610-0 | BOLT | 2 | 0612- | 4JA1-T | M6X10 IND | ||
| 713 | I9-09160 508-0 | WASHER; PL | 1 | 0612- | 4JA1-T | ID=8, 4 OD=16 | ||
| 392 | I0-95235 065-0 | CLIP; ACCEL CONT CABLE | 1 | 0612- | 4JA1-T | ID=11 L=32 | ||
| 39 | I0-91110 506-0 | NUT; ACCEL PEDAL STOPPER | 1 | 0612- | 4JA1-T | M6 | ||
| 662 | I8-97188 542-0 | CLIP; ACCEL CONT CABLE | 1 | 0008- | 4JA1 | |||
| 850 | I8-97801 635-1 | PLUG; HOLE | 1 | 0612- | 4JA1-T | |||
| 67 | I8-97957 906-A | CABLE ASM; IDLE CONT | 1 | 0009- | 4JA1 | IND, ALL VARIANT EURO 2 | ||
| 54 | I8-97188 541-A | CABLE; ENG CONT | 1 | 0008- | 4JA1 | IND, NEW SPR, RYL, HI GRADE | ||
| 32 | I8-97201 307-0 | SPRING; RITURN, ACCEL PDL | 1 | 0612- | 4JA1-T | M/T MSG 5 SPEED (M75) | ||
| 444 | I0-28650 820-0 | BOLT; CABLE CLIP | 2 | 0612- | 4JA1-T | M8X20 FLANGE | ||
| 713 | I0-91610 508-0 | WASHER; PL | 1 | 0612- | 4JA1-T | ID=8, 4 OD=16 | ||
| 1 | I8-97027 101-1 | LEVER; PEDAL SIDE | 1 | 0612- | 4JA1-T | |||
| 19 | I8-97201 295-0 | BRACKET; ACCEL PEDAL | 1 | 0008-0611 | 4JA1 | |||
| 65 | I0-28080 610-0 | BOLT | 2 | 0612- | 4JA1-T | M6X10 IND | ||
| 232 | I0-20800 640-0 | BOLT; STOPPER, ACCLE PDL | 1 | 0612- | 4JA1-T | M6X40 | ||
| 115 | I0-28650 820-0 | BOLT; INL MANIF TO BRKT | 1 | 0612- | 4JA1-T | M8X20 FLANGE | ||
| 662 | I0-95235 065-0 | CLIP; ACCEL CONT CABLE | 1 | 0612- | 4JA1-T | ID=11 L=32 | ||
| 14 | I8-94473 376-1 | PAD; PEDAL, ACCEL | 1 | 0008-0611 | 4JA1 | |||
| 18 | I8-94368 617-0 | NUT; JOINT LK | 1 | 0612- | 4JA1-T | D=17.5 | ||
| 18 | I8-94368 617-0 | NUT; JOINT LK | 1 | 0008-0611 | 4JA1 | D=17.5 | ||
| 662 | I8-94472 577-0 | CLIP; ACCEL CONT CABLE | 1 | 0008-0008 | 4JA1 | ID=20.2 & 6 | ||
| 713 | I9-09160 508-0 | WASHER; PL | 1 | 0008-0611 | 4JA1 | ID=8 | ||
| 392 | I8-94154 844-0 | CLIP; ACCEL CONT CABLE | 1 | 0008-0611 | 4JA1 | ID=6 & 10 | ||
| 32 | I8-97201 307-0 | SPRING; RITURN, ACCEL PDL | 1 | 0008-0611 | 4JA1 | M/T MSG 5 SPEED (M75) | ||
| 662 | I8-94165 402-0 | CLIP; ACCEL CONT CABLE | 1 | 0008- | 4JA1 | ID=6 & 16.5 | ||
| 54 | I8-97959 931-A | CABLE; ENG CONT | 1 | 0107-0611 | 4JA1 | IND, GRADE TOURING | ||
| 662 | I8-94438 996-0 | CLIP; ACCEL CONT CABLE | 1 | 0008- | 4JA1 | ID=10 & 11 | ||
| 232 | I0-20800 640-0 | BOLT; STOPPER, ACCLE PDL | 1 | 0108-0611 | 4JA1 | M6X40 | ||
| 19 | I8-97201 295-0 | BRACKET; ACCEL PEDAL | 1 | 0612- | 4JA1-T | |||
| 410 | I5-09707 030-1 | CLIP; BAND | 1 | 0008- | 4JA1 | L=250 IND | ||
| 39 | I9-09110 406-0 | NUT; ACCEL PEDAL STOPPER | 1 | 0008-0611 | 4JA1 | M6 | ||
| 236 | I0-74300 616-0 | SCREW; TAP, PEDAL TO BRKT | 1 | 0008- | 4JA1 | M6X16 | ||
| 1 | I8-97027 101-1 | LEVER; PEDAL SIDE | 1 | 0008-0611 | 4JA1 | |||
| 14 | I8-94473 376-1 | PAD; PEDAL, ACCEL | 1 | 0612- | 4JA1-T | |||
| 402 | I8-97353 794-A | BRACKET; CABLE CLIP | 1 | 0612- | 4JA1-T | IND |
