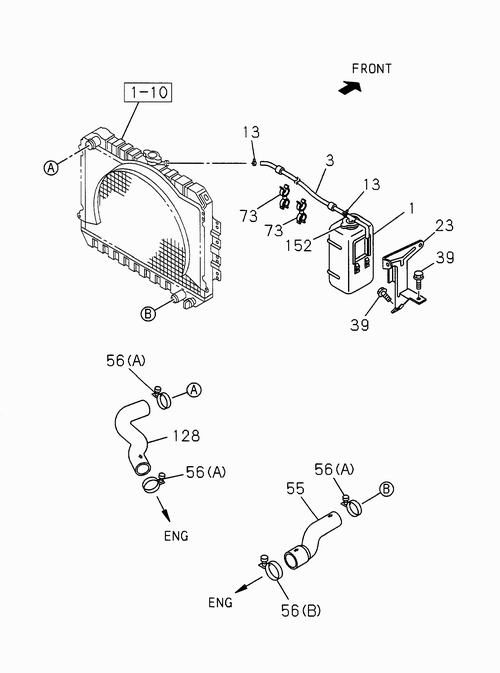

1-11 | RADIATOR HOSE AND SUB TANK
PANTHER
PANTHER
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 56 | I8-97209 203-A | CLIP; WATER HOSE, RAD | 3 | 0008-0612 | 4JA1-T | (A) ID=42 IND | ||
| 1 | I8-97956 340-A | TANK; SURGE, RAD | 1 | 0008-0611 | 4JA1 | IND | ||
| 128 | I8-97959 010-A | HOSE; WATER, RAD INL | 1 | 0009-0101 | 4JA1 | TURBOCHARGER<K51>, IND A/T | ||
| 128 | I8-97188 604-A | HOSE; WATER, RAD INL | 1 | 0407-0611 | 4JA1 | GRADE TOURING (RBG), IND LS UP M/T, TOURING UP M/T | ||
| 128 | I8-97177 160-A | HOSE; WATER, RAD INL | 1 | 0008- | 4JA1 | IND, EXC.TURBOCHARGER GRADE SUPER, ROYAL, HI GRADE | ||
| 39 | I0-28480 816-0 | BOLT; BRKT FIX | 2 | 0008-0611 | 4JA1 | M8X16 FLANGE | ||
| 56 | I9-09915 512-A | CLIP; WATER HOSE, RAD | 1 | 0008-0612 | 4JA1-T | (B) ID=48 IND | ||
| 152 | I8-97957 609-A | CAP ASM; SURGE TANK | 1 | 0008-0611 | 4JA1 | IND | ||
| 73 | I8-94400 865-0 | CLIP; RUBBER HOSE | 2 | 0008-0611 | 4JA1 | ID=12 & 16.5 | ||
| 128 | I8-97560 714-A | HOSE; WATER, RAD INL | 1 | 0612- | 4JA1-T | IND, TURBOCHARGER LM, SMART, SMART FF, RYL, RYL FF, LS TURBO | ||
| 39 | I0-28480 816-0 | BOLT; BRKT FIX | 2 | 0008-0612 | 4JA1-T | M8X16 FLANGE | ||
| 3 | I8-97957 604-A | HOSE; SURGE TANK | 1 | 0008-0612 | 4JA1-T | IND | ||
| 23 | I8-97956 341-A | BRACKET; RESERVE TANK | 1 | 0008-0612 | 4JA1-T | IND | ||
| 55 | I8-97177 161-A | HOSE; WATER, RAD OUTLET | 1 | 0008-0612 | 4JA1-T | IND | ||
| 23 | I8-97956 341-A | BRACKET; RESERVE TANK | 1 | 0008-0611 | 4JA1 | IND | ||
| 55 | I8-97177 161-A | HOSE; WATER, RAD OUTLET | 1 | 0008-0611 | 4JA1 | IND | ||
| 56 | I9-09915 512-1 | CLIP; WATER HOSE, RAD | 1 | 0008- | 4JA1 | (B) ID=48 IND | ||
| 55 | I8-97302 169-A | HOSE; WATER, RAD OUTLET | 1 | 0612- | 4JA1-T | M/T MSG 5 SPEED (M75) GRADE TOURING (RBG), IND | ||
| 128 | I8-97560 714-A | HOSE; WATER, RAD INL | 1 | 0407-0611 | 4JA1 | IND, TURBOCHARGER BLACK PANTHER A/T HI GRADE A/T | ||
| 56 | I9-09915 512-A | CLIP; WATER HOSE, RAD | 1 | 0008-0611 | 4JA1 | (B) ID=48 IND | ||
| 3 | I8-97957 604-A | HOSE; SURGE TANK | 1 | 0008-0611 | 4JA1 | IND | ||
| 128 | I8-97188 604-A | HOSE; WATER, RAD INL | 1 | 0612- | 4JA1-T | GRADE TOURING (RBG), IND LV ADV, TOUR, GTOUR | ||
| 1 | I8-97956 340-A | TANK; SURGE, RAD | 1 | 0008-0612 | 4JA1-T | IND | ||
| 56 | I8-97209 203-A | CLIP; WATER HOSE, RAD | 3 | 0008-0611 | 4JA1 | (A) ID=42 IND | ||
| 55 | I8-97302 169-A | HOSE; WATER, RAD OUTLET | 1 | 0107-0611 | 4JA1 | M/T MSG 5 SPEED (M75) GRADE TOURING (RBG), IND | ||
| 73 | I8-94400 865-0 | CLIP; RUBBER HOSE | 2 | 0008-0612 | 4JA1-T | ID=12 & 16.5 | ||
| 152 | I8-97957 609-A | CAP ASM; SURGE TANK | 1 | 0008-0612 | 4JA1-T | IND | ||
| 13 | I8-97957 610-0 | CLIP; HOSE, SURGE TANK | 2 | 0008-0611 | 4JA1 | IND | ||
| 13 | I8-97957 610-0 | CLIP; HOSE, SURGE TANK | 2 | 0008-0612 | 4JA1-T | IND | ||
| 56 | I9-09915 512-1 | CLIP; WATER HOSE, RAD | 1 | 0008- | 4JA1-T | (B) ID=48 IND |
