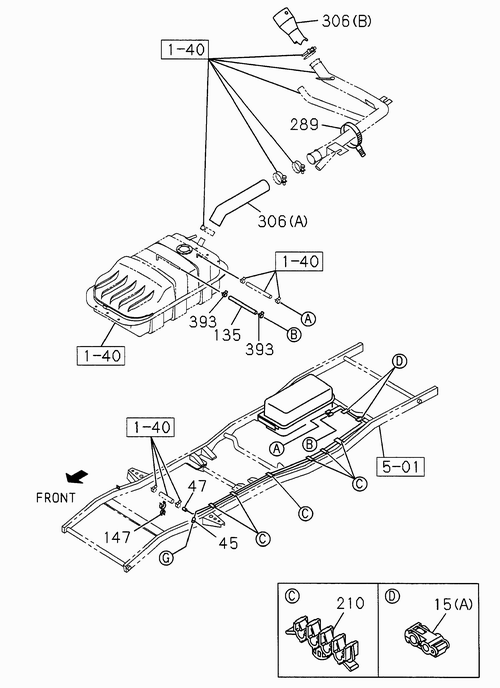

1-41 | FUEL PIPING; CHASSIS
PANTHER
PANTHER
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 289 | I5-09707 030-0 | CLIP; BAND, HOSE | 2 | 0008- | 4JA1 | L=250 IND | ||
| 45 | I8-97959 153-A | PIPE; FUEL, DELIVERY | 1 | 0008- | 4JA1 | LONG (TB***F) IND | ||
| 210 | I8-97146 096-0 | CLIP; FEED PIPE | 13 | 0008- | 4JA1 | LONG (TB***F) | ||
| 306 | I8-97957 730-A | HOSE; FUEL, FILLER | 1 | 0612- | 4JA1-T | (A) IND, LV ADV, TOUR GRD TOURING | ||
| 393 | I1-09704 102-0 | CLIP; HOSE, DELIVERY | 2 | 0008- | 4JA1 | ID=14 | ||
| 45 | I8-97957 566-A | PIPE; FUEL, DELIVERY | 1 | 0008- | 4JA1 | LONG (TB***F) IND | ||
| 148 | I8-94312 791-0 | CLIP; HOSE, FUEL | 1 | 0008- | 4JA1 | ID=14.5 & 16 | ||
| 147 | I8-94155 296-0 | CLIP; FUEL PIPE TO HOSE | 2 | 0008- | 4JA1 | PICK UP (TB**S*) WAGON (TB**V*) M/T MSG 5 SPEED (M75) ID=10 & 12 | ||
| 15 | I8-94312 791-0 | CLIP; FUEL PIPE | 1 | 0008- | 4JA1 | (B) ID=14.5 & 16 | ||
| 306 | I8-97560 959-A | HOSE; FUEL, FILLER | 1 | 0111-0611 | 4JA1 | (A) IND, GRD TOURING | ||
| 147 | I8-94155 296-0 | CLIP; FUEL PIPE TO HOSE | 1 | 0008- | 4JA1 | WAGON (TB**V*) A/T AISIN (RMD) ID=10 & 12 | ||
| 306 | I8-97957 730-A | HOSE; FUEL, FILLER | 1 | 0107-0110 | 4JA1 | (A) IND, GRD TOURING | ||
| 306 | I8-97957 514-A | HOSE; FUEL, FILLER | 1 | 0008-0611 | 4JA1 | (B), WAGON | ||
| 24 | I8-94475 649-0 | CLIP; FUEL HOSE | 2 | 0008- | 4JA1 | |||
| 82 | I1-09704 102-0 | CLIP; FUEL HOSE | 4 | 0008- | 4JA1 | ID=14 | ||
| 135 | I0-01258 300-0 | HOSE; FUEL TANK TO FUEL PIPE | 1 | 0008- | 4JA1 | L=270 SERVICED BY L=3000 | ||
| 47 | I8-97959 155-A | PIPE; FUEL, RETURN | 1 | 0010- | 4JA1 | LONG (TB***F) IND | ||
| 47 | I8-97959 154-A | PIPE; FUEL, RETURN | 1 | 0010- | 4JA1 | SHORT (TB***C) IND | ||
| 45 | I8-97957 565-A | PIPE; FUEL, DELIVERY | 1 | 0008- | 4JA1 | SHORT (TB***C) IND | ||
| 82 | I8-94238 572-0 | CLIP; FUEL HOSE | 4 | 0008- | 4JA1 | ID=14 | ||
| 306 | I8-97017 382-A | HOSE; FUEL, FILLER | 1 | 0008-0611 | 4JA1 | (A) IND GRADE NEW SUPER (RBA) GRADE ROYAL (RBB) | ||
| 47 | I8-97957 567-A | PIPE; FUEL, RETURN | 1 | 0008-0009 | 4JA1 | SHORT (TB***C) IND | ||
| 210 | I8-97146 096-0 | CLIP; FEED PIPE | 11 | 0008- | 4JA1 | SHORT (TB***C) | ||
| 15 | I8-94222 876-0 | CLIP; FUEL PIPE | 2 | 0008- | 4JA1 | (A) BLACK | ||
| 306 | I8-97560 958-A | HOSE; FUEL, FILLER | 1 | 0111- | 4JA1 | (A) IND GRADE NEW SUPER (RBA) GRADE ROYAL (RBB) GRADE HI GRADE (RBD) | ||
| 47 | I8-97957 568-A | PIPE; FUEL, RETURN | 1 | 0008-0009 | 4JA1 | LONG (TB***F) IND | ||
| 45 | I8-97959 152-A | PIPE; FUEL, DELIVERY | 1 | 0008- | 4JA1 | SHORT (TB***C) IND | ||
| 306 | I8-97017 382-A | HOSE; FUEL, FILLER | 1 | 0612- | 4JA1 | (A) IND, EURO 2 LM, SMART, SMART FF, RYL, RYL FF, LS TURBO | ||
| 306 | I8-97957 514-A | HOSE; FUEL, FILLER | 1 | 0612- | 4JA1-T | (B), EURO 2, ALL VARIANT | ||
| 289 | I5-09707 030-0 | CLIP; BAND, HOSE | 1 | 0008- | 4JA1 | WAGON (TB**V*) L=250 IND | ||
| 393 | I8-94238 572-0 | CLIP; HOSE, DELIVERY | 2 | 0008- | 4JA1 | ID=14 |
