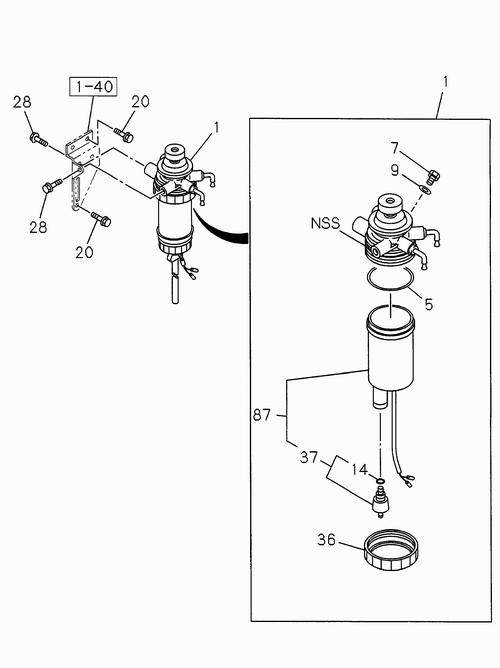

1-45 | WATER SEDIMETER; FUEL
PANTHER
PANTHER
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 87 | I8-97219 363-0 | CASE ASM; SEDIMETER | 1 | 0008-0611 | 4JA1 | |||
| 9 | I8-94132 675-0 | GASKET; DRAIN PLUG & CONNECTOR | 1 | 0612- | 4JA1-T | EURO 2 | ||
| 87 | I8-97219 363-0 | CASE ASM; SEDIMETER | 1 | 0612- | 4JA1-T | EURO 2 | ||
| 1 | I6-98019 898-1 | SEDIMENTER; FUEL | 1 | 0612- | 4JA1-T | (IADG) EURO 2 | ||
| 87 | I8-97316 630-1 | CASE ASM; SEDIMETER | 1 | 0008- | 4JA1 | |||
| 14 | I8-94447 156-0 | GASKET; SENSOR TO CTR BOLT | 1 | 0612- | 4JA1-T | EURO 2 | ||
| 1 | I5-13200 220-8 | SEDIMETER; FUEL | 1 | 0008-0611 | 4JA1 | |||
| 28 | I0-28080 812-0 | BOLT; SEDIMETER | 3 | 0612- | 4JA1-T | M8X12 FLANGE IND | ||
| 36 | I5-13234 001-0 | RING; BODY TO CASE | 1 | 0612- | 4JA1-T | EURO 2 | ||
| 14 | I8-94447 156-0 | GASKET; SENSOR TO CTR BOLT | 1 | 0008-0611 | 4JA1 | |||
| 20 | I0-28080 612-0 | BOLT; BRKT TO SEDIMETER | 3 | 0612- | 4JA1-T | M6X12 FLANGE IND | ||
| 36 | I5-13234 010-0 | RING; BODY TO CASE | 1 | 0612- | 4JA1-T | EURO 2 | ||
| 1 | I5-13200 220-9 | SEDIMETER; FUEL | 1 | 0008- | 4JA1 | |||
| 37 | I8-94453 746-0 | PLUG; SENSOR | 1 | 0612- | 4JA1-T | EURO 2 | ||
| 28 | I0-28080 812-0 | BOLT; SEDIMETER | 3 | 0008-0611 | 4JA1 | M8X12 FLANGE IND | ||
| 5 | I5-09623 075-0 | GASKET; UPR COVER, SEDIMETER | 1 | 0008-0611 | 4JA1 | |||
| 5 | I5-09623 075-0 | GASKET; UPR COVER, SEDIMETER | 1 | 0612- | 4JA1-T | EURO 2 | ||
| 9 | I8-94132 675-0 | GASKET; DRAIN PLUG & CONNECTOR | 1 | 0008-0611 | 4JA1 | |||
| 87 | I8-97316 630-1 | CASE ASM; SEDIMETER | 1 | 0612- | 4JA1-T | EURO 2 | ||
| 1 | I6-13200 220-2 | SEDIMENTER; FUEL | 1 | 0008- | 4JA1 | (IADG) | ||
| 1 | I8-98019 898-0 | SEDIMETER; FUEL | 1 | 0612- | 4JA1-T | EURO 2 | ||
| 20 | I0-28080 612-0 | BOLT; BRKT TO SEDIMETER | 3 | 0008-0611 | 4JA1 | M6X12 FLANGE IND | ||
| 7 | I8-94132 674-0 | PLUG; DRAIN, SEDIMETER | 1 | 0612- | 4JA1-T | EURO 2 | ||
| 37 | I8-94453 746-0 | PLUG; SENSOR | 1 | 0008-0611 | 4JA1 | |||
| 36 | I5-13234 001-0 | RING; BODY TO CASE | 1 | 0008-0611 | 4JA1 | |||
| 36 | I5-13234 010-0 | RING; BODY TO CASE | 1 | 0008- | 4JA1 | |||
| 7 | I8-94132 674-0 | PLUG; DRAIN, SEDIMETER | 1 | 0008-0611 | 4JA1 |
