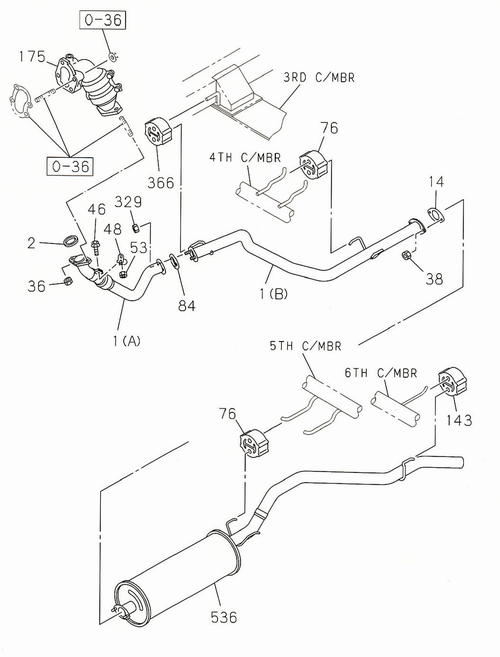

1-50 | EXHAUST PIPE AND SILENCER
PANTHER
PANTHER
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 46 | I0-28650 840-0 | BOLT; BRKT, EXH PIPE | 1 | 0612- | 4JA1-T | M8X40 FLANGE | ||
| 48 | I8-97131 747-A | BRACKET; EXH PIPE TO MTG | 1 | 0008- | 4JA1 | EXC. TURBOCHARGER, IND | ||
| 1 | I8-97956 320-A | PIPE; EXHAUST | 1 | 0008- | 4JA1 | (A), EXC. TURBO <K51> IND, SC/LC (CSI) | ||
| 1 | I8-97560 328-A | PIPE; EXHAUST | 1 | 0008- | 4JA1 | (A), TURBO <51> IND, SC/LC (KFN) | ||
| 1 | I8-97562 740-A | PIPE; EXHAUST | 1 | 0612- | 4JA1-T | (B), TURBO, EURO 2 IND (CSI) | ||
| 84 | I8-97093 574-A | GASKET; EXH PIPE | 1 | 0008- | 4JA1 | ID=55 | ||
| 46 | I0-28650 840-0 | BOLT; BRKT, EXH PIPE | 1 | 0008- | 4JA1 | M8X40 FLANGE | ||
| 2 | I8-97381 456-0 | GASKET; PIPE TO MANIF | 1 | 0008- | 4JA1 | |||
| 84 | I8-97093 574-1 | GASKET; EXH PIPE | 1 | 0612- | 4JA1-T | ID=55 | ||
| 38 | I7-05110 010-A | NUT; SILINCER | 2 | 0612- | 4JA1-T | M10 FLANGE | ||
| 1 | I8-97562 739-A | PIPE; EXHAUST | 1 | 0612- | 4JA1-T | (A), TURBO, EURO 2 IND (CSI) | ||
| 536 | I8-97562 748-A | SILENCER & TAIL PIPE ASM | 1 | 0612- | 4JA1-T | IND, (CSI), EURO 2 | ||
| 2 | I8-97069 287-0 | GASKET; PIPE TO MANIF | 1 | 0612- | 4JA1-T | |||
| 175 | I8-97306 532-2 | CONVERTER; CATALYST | 1 | 0612- | 4JA1-T | EURO 2 | ||
| 14 | I8-97093 574-A | GASKET; SILINCER TO EXH PIPE | 1 | 0107- | 4JA1 | ID=55 | ||
| 38 | I0-91150 110-0 | NUT; SILINCER | 2 | 0612- | 4JA1-T | M10 FLANGE | ||
| 84 | I8-97093 574-A | GASKET; EXH PIPE | 1 | 0612- | 4JA1-T | ID=55 | ||
| 14 | I8-97093 574-1 | GASKET; SILINCER TO EXH PIPE | 1 | 0612- | 4JA1-T | ID=55 | ||
| 14 | I8-97093 574-A | GASKET; SILINCER TO EXH PIPE | 1 | 0612- | 4JA1-T | ID=55 | ||
| 536 | I8-97562 747-A | SILENCER & TAIL PIPE ASM | 1 | 0612- | 4JA1-T | IND, (KFN), EURO 2 | ||
| 76 | I8-97023 183-A | SUPPORT; BRKT | 4 | 0612- | 4JA1-T | T=28 D=55 IND | ||
| 14 | I8-97093 574-0 | GASKET; SILINCER TO EXH PIPE | 1 | 0008-0106 | 4JA1 | ID=55 | ||
| 53 | I0-91150 108-0 | NUT; BRKT TO CLAMP | 1 | 0612- | 4JA1-T | M8 FLANGE IND | ||
| 46 | I0-28680 840-0 | BOLT; BRKT, EXH PIPE | 1 | 0008-0611 | 4JA1 | M8X40 FLANGE | ||
| 2 | I8-97381 456-0 | GASKET; PIPE TO MANIF | 1 | 0612- | 4JA1-T | |||
| 1 | I8-97560 330-A | PIPE; EXHAUST | 1 | 0008- | 4JA1 | (B) IND, LC, (KFN) | ||
| 14 | I8-97093 574-1 | GASKET; SILINCER TO EXH PIPE | 1 | 0107-0611 | 4JA1 | ID=55 | ||
| 536 | I7-58110 115-A | SILENCER & TAIL | 1 | 1305- | 4JA1-T | TOUR, GRAND TOUR | ||
| 36 | I8-97096 192-1 | NUT; EXH PIPE | 2 | 0008-0611 | 4JA1 | M10 FLANGE | ||
| 53 | I0-91150 208-0 | NUT; BRKT TO CLAMP | 1 | 0008-0106 | 4JA1 | M8 FLANGE IND | ||
| 143 | I8-97023 183-A | RUBBER; SUPPORT | 1 | 0612- | 4JA1-T | T=28 D=55 IND | ||
| 38 | I7-05110 010-A | NUT; SILINCER | 2 | 0008- | 4JA1 | M10 FLANGE | ||
| 14 | I8-97093 574-A | GASKET; SILINCER TO EXH PIPE | 1 | 0008- | 4JA1 | ID=55 | ||
| 84 | I8-97093 574-0 | GASKET; EXH PIPE | 1 | 0008-0106 | 4JA1 | ID=55 | ||
| 1 | I8-97560 327-A | PIPE; EXHAUST | 1 | 0008- | 4JA1 | (A), EXC. TURBO <K51> IND, SC/LC (KFN) | ||
| 536 | I8-97560 331-A | SILENCER & TAIL PIPE ASM | 1 | 0008- | 4JA1 | IND, (KFN) | ||
| 1 | I8-97956 323-A | PIPE; EXHAUST | 1 | 0008- | 4JA1 | (B) IND, LC, (CSI) | ||
| 84 | I8-97093 574-A | GASKET; EXH PIPE | 1 | 0107- | 4JA1 | ID=55 | ||
| 48 | I8-97037 539-A | BRACKET; EXH PIPE TO MTG | 1 | 0008-0611 | 4JA1 | TURBOCHARGER<51>, IND | ||
| 38 | I0-91150 110-0 | NUT; SILINCER | 2 | 0008-0611 | 4JA1 | M10 FLANGE | ||
| 1 | I8-97956 321-A | PIPE; EXHAUST | 1 | 0008- | 4JA1 | (A), TURBO <51> IND, SC/LC (CSI) | ||
| 1 | I8-97956 322-A | PIPE; EXHAUST | 1 | 0008- | 4JA1 | (B) IND, SC, (CSI) | ||
| 329 | I7-05110 010-A | NUT; EXH PIPE TO PIPE | 2 | 0008- | 4JA1 | M10 FLANGE | ||
| 48 | I8-97037 539-A | BRACKET; EXH PIPE TO MTG | 1 | 0612- | 4JA1-T | TURBOCHARGER<51>, IND | ||
| 143 | I8-97023 183-A | RUBBER; SUPPORT | 1 | 0008-0611 | 4JA1 | T=28 D=55 IND | ||
| 84 | I8-97093 574-1 | GASKET; EXH PIPE | 1 | 0107-0611 | 4JA1 | ID=55 | ||
| 46 | I0-28680 840-0 | BOLT; BRKT, EXH PIPE | 1 | 0612- | 4JA1-T | M8X40 FLANGE | ||
| 329 | I0-91150 110-0 | NUT; EXH PIPE TO PIPE | 2 | 0008-0611 | 4JA1 | M10 FLANGE | ||
| 366 | I8-97023 183-A | RUBBER; SUPPORT, EXH PIPE | 1 | 0008-0611 | 4JA1 | T=28 D=55 IND | ||
| 536 | I8-97956 974-A | SILENCER & TAIL PIPE ASM | 1 | 0008- | 4JA1 | IND, (CSI) | ||
| 76 | I8-97023 183-A | SUPPORT; BRKT | 4 | 0008-0611 | 4JA1 | T=28 D=55 IND | ||
| 366 | I8-97023 183-A | RUBBER; SUPPORT, EXH PIPE | 1 | 0612- | 4JA1-T | T=28 D=55 IND | ||
| 2 | I8-97069 287-0 | GASKET; PIPE TO MANIF | 1 | 0008-0611 | 4JA1 | |||
| 329 | I7-05110 010-A | NUT; EXH PIPE TO PIPE | 2 | 0612- | 4JA1-T | M10 FLANGE | ||
| 329 | I0-91150 110-0 | NUT; EXH PIPE TO PIPE | 2 | 0612- | 4JA1-T | M10 FLANGE | ||
| 53 | I0-91150 108-0 | NUT; BRKT TO CLAMP | 1 | 0107-0611 | 4JA1 | M8 FLANGE IND | ||
| 36 | I8-97096 192-1 | NUT; EXH PIPE | 2 | 0612- | 4JA1-T | M10 FLANGE |
