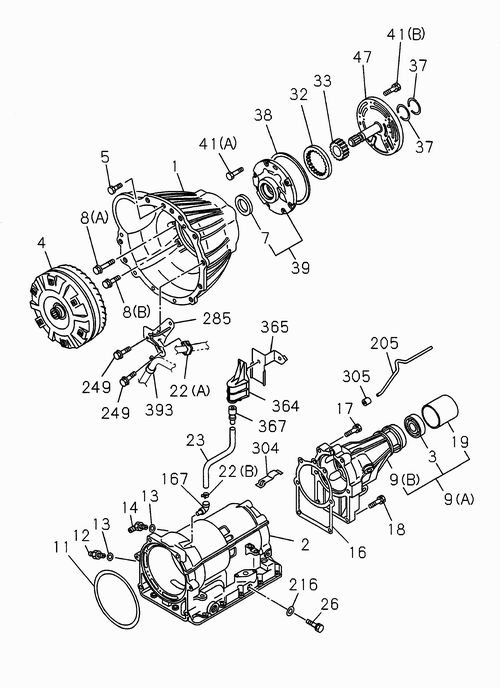

2-41 | AUTO TRANS CASE, CONVERTER AND OIL PUMP
PANTHER
PANTHER
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 38 | I5-34165 003-0 | GASKET; OIL PUMP, A/T | 1 | 0008- | 4JA1 | |||
| 9 | I8-97264 852-0 | COVER ASM; RR, A/T | 1 | 0008- | 4JA1 | (B) | ||
| 33 | I8-97176 139-0 | GEAR; INNER, OIL PUMP, A/T | 1 | 0008- | 4JA1 | |||
| 2 | I8-97264 793-0 | CASE ASM; A/T | 1 | 0008- | 4JA1 | |||
| 367 | I8-97164 362-0 | BREATHER; AIR, MISSION | 1 | 0008- | 4JA1 | |||
| 1 | I8-97264 783-0 | HOUSING; CONV, A/T | 1 | 0008- | 4JA1 | |||
| 22 | I8-94413 325-0 | CLIP; BREATHER HOSE, A/T | 1 | 0008- | 4JA1 | (A) ID=10-18 | ||
| 19 | I5-33138 007-0 | COVER; DUST, REAR COVER | 1 | 0008- | 4JA1 | |||
| 11 | I8-97250 604-0 | RING; SEALING, TRANS CASE | 1 | 0008- | 4JA1 | |||
| 18 | I8-94479 951-0 | BOLT; RR CVR TO CASE, LWR, A/T | 2 | 0008- | 4JA1 | |||
| 249 | I0-28050 610-0 | BOLT; BRKT | 2 | 0008- | 4JA1 | M6X10 FLANGE IND | ||
| 167 | I8-94479 727-0 | CONNECTOR; CASE, A/T | 1 | 0008- | 4JA1 | |||
| 22 | I8-94472 578-0 | CLIP; BREATHER HOSE, A/T | 1 | 0008- | 4JA1 | (A) ID=10-18 | ||
| 13 | I5-34588 001-0 | GASKET; OIL COOLER PIPE | 2 | 0008- | 4JA1 | |||
| 41 | I8-97019 532-0 | BOLT; OIL PUMP HSG, A/T | 6 | 0008- | 4JA1 | (B) M6X15.5 | ||
| 5 | I8-94460 742-0 | BOLT; RR PLATE TO TORQUE CONV | 6 | 0008- | 4JA1 | M8X10 | ||
| 7 | I8-97264 795-0 | SEAL; OIL, LIP, A/T | 1 | 0008- | 4JA1 | |||
| 14 | I8-94479 970-0 | UNION; OIL COOLER RETURN PIPE | 1 | 0008- | 4JA1 | |||
| 304 | I8-97200 141-0 | SPRING; LEAF, A/T | 1 | 0008- | 4JA1 | |||
| 8 | I8-94473 572-0 | BOLT; HSG TO CASE | 4 | 0008- | 4JA1 | (A) M10X118 | ||
| 22 | I8-94479 730-0 | CLIP; BREATHER HOSE, A/T | 1 | 0008- | 4JA1 | (B) | ||
| 216 | I5-34119 001-0 | GASKET; SOLENOID OUTER | 2 | 0008- | 4JA1 | |||
| 8 | I8-94473 573-0 | BOLT; HSG TO CASE | 2 | 0008- | 4JA1 | (B) M12X97 | ||
| 37 | I8-97128 812-0 | RING; SEAL, OIL PUMP, A/T | 2 | 0008- | 4JA1 | |||
| 393 | I9-09525 032-0 | CLIP; CABLE | 1 | 0009-0011 | 4JA1 | ID=11 L=20 H=14 | ||
| 16 | I8-97032 928-0 | GASKET; EXT HSG | 1 | 0008- | 4JA1 | |||
| 4 | I8-94364 918-0 | CONVERTER ASM; TORQUE A/T | 1 | 0008- | 4JA1 | |||
| 3 | I8-94473 633-0 | SEAL; OIL, RR COVER, A/T | 1 | 0008- | 4JA1 | |||
| 305 | I8-97027 228-0 | GASKET; TUBE, EXT HSG | 1 | 0008- | 4JA1 | |||
| 32 | I8-97100 794-0 | GEAR; OUTER, OIL PUMP, A/T | 1 | 0008- | 4JA1 | |||
| 17 | I8-94473 632-0 | BOLT; REAR COVER TO CASE | 4 | 0008- | 4JA1 | M10X45 | ||
| 41 | I8-94473 574-0 | BOLT; OIL PUMP HSG, A/T | 7 | 0008- | 4JA1 | (A) M8X135 | ||
| 364 | I8-97228 324-0 | COVER; AIR BREATHER, A/T | 1 | 0008- | 4JA1 | |||
| 9 | I8-97264 851-0 | COVER ASM; RR, A/T | 1 | 0008- | 4JA1 | (A) | ||
| 365 | I8-97257 258-2 | BRACKET; BREATHER HOSE A/T | 1 | 0008- | 4JA1 | |||
| 23 | I8-97264 789-0 | HOSE; BREATHER, A/T | 1 | 0008- | 4JA1 | |||
| 285 | I8-97261 998-0 | BRACKET; HARNESS | 1 | 0008- | 4JA1 | |||
| 12 | I8-94473 570-0 | CONNECTOR; OIL COOLER OUTLET PIPE | 1 | 0008- | 4JA1 | |||
| 47 | I8-94405 302-0 | SHAFT; OIL PUMP, A/T | 1 | 0008- | 4JA1 | |||
| 39 | I8-94405 299-0 | BODY SUB ASM; FRT, OIL PUMP, A/T | 1 | 0008- | 4JA1 | |||
| 205 | I8-97264 853-0 | TUBE; EXT HSG | 1 | 0008- | 4JA1 | |||
| 393 | I9-09527 008-0 | CLIP; CABLE | 1 | 0008-0008 | 4JA1 | ID=9 L=20 H=20 | ||
| 249 | I0-28080 610-0 | BOLT; BRKT | 2 | 0008- | 4JA1 | M6X10 FLANGE IND | ||
| 26 | I5-34119 002-0 | PLUG; TRANS CASE | 2 | 0008- | 4JA1 |
