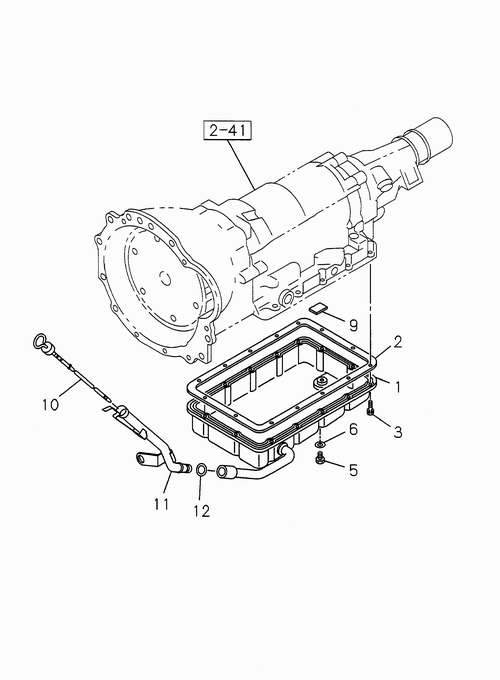

2-42 | AUTO TRANS OIL PAN AND OIL CONTROL
PANTHER
PANTHER
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 2 | I5-34132 001-0 | GASKET; OIL PAN, A/T | 1 | 0008- | 4JA1 | |||
| 11 | I8-97247 688-2 | TUBE; OIL FILLER | 1 | 0008- | 4JA1 | |||
| 5 | I5-34132 003-0 | PLUG; OIL PAN | 1 | 0008- | 4JA1 | |||
| 1 | I8-94323 524-0 | PAN ASM; OIL, A/T | 1 | 0008- | 4JA1 | |||
| 9 | I5-34138 004-0 | MAGNET; OIL PAN | 2 | 0008- | 4JA1 | |||
| 5 | I8-97367 573-0 | PLUG; OIL PAN | 1 | 0008- | 4JA1 | |||
| 10 | I8-97257 587-1 | GAUGE; OIL LEVEL | 1 | 0008- | 4JA1 | |||
| 12 | I9-09561 110-0 | GASKET; OIL FILLER TUBE TO A/T | 1 | 0008- | 4JA1 | ID=9, 8 | ||
| 3 | I5-34139 001-0 | BOLT; OIL PAN TO CASE | 14 | 0008- | 4JA1 | M6 | ||
| 6 | I5-34132 002-0 | GASKET; OIL PAN TO PLUG | 1 | 0008- | 4JA1 |
