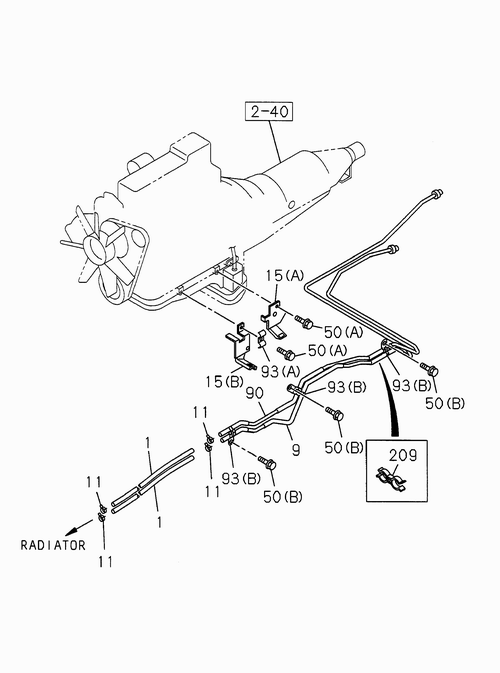

2-53 | TRANSMISSION OIL COOLER SYSTEM
PANTHER
PANTHER
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 50 | I0-28080 616-0 | BOLT; CLIP | 2 | 0008- | 4JA1 | (A) M6X16 FLANGE IND | ||
| 9 | I8-97956 666-A | PIPE; ATF, INL, A/T | 1 | 0008- | 4JA1 | A/T AISIN (RMD) IND | ||
| 1 | I8-97089 701-0 | HOSE; ATF | 2 | 0008- | 4JA1 | L=250 | ||
| 93 | I8-97062 040-A | CLIP; BRKT | 3 | 0008- | 4JA1 | (B) IND | ||
| 209 | I8-97210 049-0 | CLIP; HOSE | 1 | 0008- | 4JA1 | |||
| 11 | I8-94238 572-0 | CLIP; PIPE | 4 | 0008- | 4JA1 | ID=14 | ||
| 50 | I0-50540 816-0 | BOLT; CLIP | 2 | 0008- | 4JA1 | (B) M8X16 W/LK WASHER | ||
| 50 | I0-50040 816-0 | BOLT; CLIP | 2 | 0008- | 4JA1 | (B) M8X16 W/LK WASHER | ||
| 90 | I8-97956 667-A | PIPE ASM; ATF | 1 | 0008- | 4JA1 | IND | ||
| 15 | I8-97061 686-A | BRACKET; ATF PIPE | 1 | 0008- | 4JA1 | (A) IND | ||
| 15 | I8-97956 671-A | BRACKET; ATF PIPE | 1 | 0008- | 4JA1 | (B) IND | ||
| 11 | I1-09704 102-0 | CLIP; PIPE | 4 | 0008- | 4JA1 | ID=14 | ||
| 93 | I8-94334 345-A | CLIP; BRKT | 1 | 0008- | 4JA1 | (A) IND |
