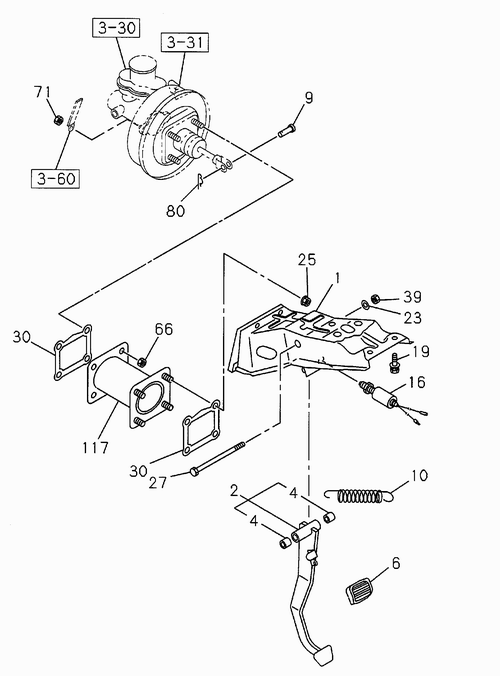

3-10 | BRAKE PEDAL AND CONTROL
PANTHER
PANTHER
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 9 | I8-94250 182-0 | PIN; JAW JOINT | 1 | 0008-0611 | 4JA1 | |||
| 117 | I8-97943 938-0 | SPACER; M/VAC TO BODY | 1 | 0612- | 4JA1-T | THA, EURO 2 | ||
| 66 | I8-94279 050-0 | NUT; SERVO TO BRKT | 4 | 0008-0311 | 4JA1 | M8 W/LK WASHER | ||
| 16 | I8-94118 754-1 | SWITCH; STOP LAMP | 1 | 0612- | 4JA1-T | EURO 2 | ||
| 30 | I8-97943 457-0 | GASKET; M/VAC TO BODY | 2 | 0312-0611 | 4JA1 | THA | ||
| 25 | I5-09440 005-0 | NUT; FLANGE, MTG BRKT TO BODY | 4 | 0612- | 4JA1-T | M8 FLANGE | ||
| 27 | I8-94480 803-0 | SHAFT; BRK PEDAL | 1 | 0612- | 4JA1-T | EURO 2 | ||
| 23 | I1-09985 345-0 | WASHER; LK, SHAFT | 1 | 0008- | 4JA1 | ID=10.2 | ||
| 1 | I8-97040 569-3 | BRACKET ASM; PEDAL | 1 | 0107-0611 | 4JA1 | |||
| 30 | I8-97943 457-0 | GASKET; M/VAC TO BODY | 2 | 0612- | 4JA1-T | THA, EURO 2 | ||
| 80 | I8-94157 841-0 | PIN; SNAP, BRK PEDAL | 1 | 0612- | 4JA1-T | L=27.7, EURO 2 | ||
| 1 | I8-97040 569-3 | BRACKET ASM; PEDAL | 1 | 0612- | 4JA1-T | EURO 2 | ||
| 6 | I5-31413 004-0 | COVER; BRK PEDAL | 1 | 0008- | 4JA1 | A/T AISIN (RMD) | ||
| 30 | I8-94111 590-0 | GASKET; M/VAC TO BODY | 2 | 0008-0311 | 4JA1 | |||
| 23 | I9-09150 510-0 | WASHER; LK, SHAFT | 1 | 0008-0611 | 4JA1 | ID=10.2 | ||
| 16 | I8-94118 754-1 | SWITCH; STOP LAMP | 1 | 0008-0611 | 4JA1 | |||
| 6 | I8-94222 524-1 | COVER; BRK PEDAL | 1 | 0612- | 4JA1-T | M/T MSG 5 SPEED (M75) | ||
| 30 | I8-97301 539-0 | GASKET; M/VAC TO BODY | 2 | 0612- | 4JA1-T | THA, EURO 2 | ||
| 4 | I8-94244 439-0 | BUSHING; BRK PEDAL | 2 | 0612- | 4JA1-T | EURO 2 | ||
| 71 | I8-97943 949-0 | NUT; SERVO TO BRKT | 4 | 0612- | 4JA1-T | THA, EURO 2 | ||
| 2 | I8-94329 611-1 | PEDAL; BRK | 1 | 0008-0611 | 4JA1 | M/T MSG 5 SPEED (M75) | ||
| 6 | I8-94222 524-1 | COVER; BRK PEDAL | 1 | 0008-0611 | 4JA1 | M/T MSG 5 SPEED (M75) | ||
| 25 | I5-09440 005-0 | NUT; FLANGE, MTG BRKT TO BODY | 4 | 0008-0611 | 4JA1 | M8 FLANGE | ||
| 16 | I8-94362 930-0 | SWITCH; STOP LAMP | 1 | 0008- | 4JA1 | |||
| 66 | I8-97943 949-0 | NUT; SERVO TO BRKT | 4 | 0612- | 4JA1-T | THA, EURO 2 | ||
| 23 | I1-09985 345-0 | WASHER; LK, SHAFT | 1 | 0612- | 4JA1-T | ID=10.2 | ||
| 10 | I8-94329 696-0 | SPRING; RETURN, BRK PEDAL | 1 | 0612- | 4JA1-T | |||
| 39 | I9-09110 410-0 | NUT; STOPPER LK | 1 | 0612- | 4JA1-T | M10, EURO 2 | ||
| 16 | I8-94362 930-0 | SWITCH; STOP LAMP | 1 | 0612- | 4JA1-T | EURO 2 | ||
| 10 | I8-94329 696-0 | SPRING; RETURN, BRK PEDAL | 1 | 0008-0611 | 4JA1 | |||
| 9 | I8-94250 182-0 | PIN; JAW JOINT | 1 | 0612- | 4JA1-T | |||
| 19 | I0-28080 816-0 | BOLT; BRKT | 5 | 0008-0611 | 4JA1 | M8X16 FLANGE | ||
| 117 | I8-97190 810-0 | SPACER; M/VAC TO BODY | 1 | 0008-0311 | 4JA1 | |||
| 66 | I8-97943 949-0 | NUT; SERVO TO BRKT | 4 | 0312-0611 | 4JA1 | THA | ||
| 27 | I8-94480 803-0 | SHAFT; BRK PEDAL | 1 | 0008-0611 | 4JA1 | |||
| 2 | I8-94329 612-1 | PEDAL; BRK | 1 | 0008- | 4JA1 | A/T AISIN (RMD) | ||
| 30 | I8-97301 539-0 | GASKET; M/VAC TO BODY | 2 | 0312- | 4JA1 | THA | ||
| 71 | I8-97943 949-0 | NUT; SERVO TO BRKT | 4 | 0312-0611 | 4JA1 | THA | ||
| 4 | I8-94244 439-0 | BUSHING; BRK PEDAL | 2 | 0008-0611 | 4JA1 | |||
| 71 | I8-94279 050-0 | NUT; BRK M/CYL | 2 | 0008-0311 | 4JA1 | M8 W/LK WASHER | ||
| 2 | I8-94329 611-1 | PEDAL; BRK | 1 | 0612- | 4JA1-T | M/T MSG 5 SPEED (M75) | ||
| 19 | I0-28080 816-0 | BOLT; BRKT | 5 | 0612- | 4JA1-T | M8X16 FLANGE | ||
| 23 | I9-09150 510-0 | WASHER; LK, SHAFT | 1 | 0612- | 4JA1-T | ID=10.2 | ||
| 1 | I8-97040 569-1 | BRACKET ASM; PEDAL | 1 | 0008-0106 | 4JA1 | |||
| 117 | I8-97943 938-0 | SPACER; M/VAC TO BODY | 1 | 0312-0611 | 4JA1 | THA | ||
| 80 | I8-94157 841-0 | PIN; SNAP, BRK PEDAL | 1 | 0008-0611 | 4JA1 | L=27.7 | ||
| 39 | I9-09110 410-0 | NUT; STOPPER LK | 1 | 0008-0611 | 4JA1 | M10 |
