| 72 |
I8-97956 182-A |
|
CABLE; PARKING BRK |
1 |
0008- |
|
4JA1 |
(C), SHORT (TB***C) RH LM, LV IND, M/T, A/T |
| 71 |
I8-94479 600-2 |
|
SPRING; RETURN, PARKING BRK TO BODY |
1 |
0008- |
|
4JA1 |
PICK UP (TB**S*), M/T |
| 72 |
I8-97956 185-A |
|
CABLE; PARKING BRK LH |
1 |
0008- |
|
4JA1 |
(C), WAGON LONG (TB**VF) LM, LV, LS GRADE ROYAL (RBB) IND, M/T, A/T |
| 3 |
I8-97177 851-0 |
|
LEVER; PARKING BRK |
1 |
0008- |
|
4JA1 |
WAGON (TB**V*), M/T |
| 198 |
I8-97188 350-A |
|
BRACKET; CABLE |
1 |
0008- |
|
4JA1 |
PICK UP (TB**S*) IND, M/T |
| 326 |
I8-97562 256-A |
|
RETAINER; PARK CABLE |
1 |
0008- |
|
4JA1 |
IND |
| 91 |
I8-97045 074-A |
|
CLIP; PARKING BRK CABLE |
1 |
0008- |
|
4JA1 |
RH, M/T, A/T |
| 42 |
I8-94341 286-0 |
|
ROLLER; PARK BRK CABLE |
1 |
0008- |
|
4JA1 |
PICK UP (TB**S*), M/T |
| 37 |
I5-46149 012-0 |
|
BUSHING; RELAY LEVER, PARK BRK |
2 |
0008- |
|
4JA1 |
PICK UP (TB**S*), M/T |
| 72 |
I8-97956 181-A |
|
CABLE; PARKING BRK LH |
1 |
0008-0106 |
|
4JA1 |
(A), PICK UP IND, M/T |
| 43 |
I0-28680 840-0 |
|
BOLT; ROLLER, PARK BRK CABLE |
1 |
0008- |
|
4JA1 |
PICK UP (TB**S*), M/T M8X40 FLANGE |
| 16 |
I8-97957 529-A |
|
BRACKET; PARKING BRK |
1 |
0008-0611 |
|
4JA1 |
(B), A/T, LM, LV, EXC.LS, IND |
| 55 |
I0-91610 508-0 |
|
WASHER; PL, PARK BRK- CABLE |
2 |
0008- |
|
4JA1 |
PICK UP (TB**S*), M/T ID=8 |
| 47 |
I9-46129 013-1 |
|
COLLAR; ROLLER, PARK-BRK CABLE |
1 |
0008- |
|
4JA1 |
PICK UP (TB**S*), M/T |
| 91 |
I8-97045 075-A |
|
CLIP; PARKING BRK CABLE |
1 |
0008- |
|
4JA1 |
LH, M/T, A/T |
| 66 |
I9-09150 510-0 |
|
WASHER; LK, RELAY LEVER |
1 |
0008- |
|
4JA1 |
PICK UP (TB**S*), M/T ID=10.2 |
| 68 |
I8-94404 908-1 |
|
PIN; FULCRUM, RELAY- LEVER, PARK BRK |
1 |
0008- |
|
4JA1 |
PICK UP (TB**S*), M/T |
| 41 |
I9-09115 406-0 |
|
NUT; HAND BRK STEM |
4 |
0008- |
|
4JA1 |
PICK UP (TB**S*), M/T M6 |
| 85 |
I5-09709 039-0 |
|
CLIP; BRKT |
1 |
0008-0106 |
|
4JA1 |
PICK UP (TB**S*) (A), M/T |
| 11 |
I9-46125 071-0 |
|
ROLLER; PARKING BRK |
1 |
0008- |
|
4JA1 |
PICK UP (TB**S*), M/T |
| 35 |
I8-94222 473-0 |
|
WASHER; PL, RELAY LEVER PARK BRK |
1 |
0008- |
|
4JA1 |
(A), PICK UP (TB**S*), M/T ID=15.5 OD=24 |
| 1 |
I8-97192 517-1 |
|
STEM ASM; PARKING BRK |
1 |
0008- |
|
4JA1 |
PICK UP (TB**S*), M/T |
| 168 |
I1-09985 179-0 |
|
WASHER; LK, HAND BRKT STEM |
4 |
0008- |
|
4JA1 |
PICK UP (TB**S*), M/T ID=6 |
| 55 |
I9-09160 508-0 |
|
WASHER; PL, PARK BRK- CABLE |
2 |
0008- |
|
4JA1 |
PICK UP (TB**S*), M/T ID=8 |
| 86 |
I0-28480 616-0 |
|
BOLT |
2 |
0008- |
|
4JA1 |
WAGON (TB**V*), M/T M6X16 FLANGE |
| 54 |
I9-08112 015-0 |
|
PIN; SNAP, CABLE TO LEVER |
2 |
0008- |
|
4JA1 |
PICK UP (TB**S*), M/T L=15 |
| 85 |
I9-09916 883-0 |
|
CLIP; BRKT |
1 |
0008- |
|
4JA1 |
(C) ID=14, M/T, A/T |
| 69 |
I8-94314 430-0 |
|
ROD; RELAY LEVER |
1 |
0008- |
|
4JA1 |
PICK UP (TB**S*), M/T |
| 87 |
I0-91150 110-0 |
|
NUT |
1 |
0008- |
|
4JA1 |
WAGON (TB**V*), M/T (B) M10 FLANGE |
| 87 |
I0-91180 106-0 |
|
NUT |
4 |
0008- |
|
4JA1 |
WAGON (TB**V*), M/T (A) M6 FLANGE |
| 35 |
I0-91610 710-0 |
|
WASHER; PL, RELAY LEVER PARK BRK |
1 |
0008- |
|
4JA1 |
(B), PICK UP (TB**S*), M/T ID=10 OD=26 |
| 65 |
I9-09110 410-A |
|
NUT; RELAY LEVER |
1 |
0008- |
|
4JA1 |
PICK UP (TB**S*), M/T M10 IND |
| 39 |
I9-09110 410-A |
|
NUT; RELAY LEVER, PARK- BRK |
1 |
0008- |
|
4JA1 |
PICK UP (TB**S*), M/T M10 IND |
| 72 |
I6-97956 184-0 |
|
CABLE; PARK BRK RH |
1 |
0008- |
|
4JA1 |
(IADG) (C), WAGON LONG (TB**VF) LM, LV, LS GRADE ROYAL (RBB) IND, M/T, A/T |
| 72 |
I8-97956 577-A |
|
CABLE; PARKING BRK RH |
1 |
0107- |
|
4JA1 |
RH, (C), WAGON LONG GRADE TOURING, IND |
| 38 |
I1-09985 345-0 |
|
WASHER; LK, RELAY LEVER PARK BRK |
1 |
0008- |
|
4JA1 |
PICK UP (TB**S*), M/T ID=10.2 |
| 66 |
I1-09985 345-0 |
|
WASHER; LK, RELAY LEVER |
1 |
0008- |
|
4JA1 |
PICK UP (TB**S*), M/T ID=10.2 |
| 70 |
I9-09111 408-0 |
|
NUT; EQUALIZER TO FRT CABLE |
2 |
0008- |
|
4JA1 |
PICK UP (TB**S*), M/T M8 |
| 87 |
I0-91150 106-0 |
|
NUT |
4 |
0008- |
|
4JA1 |
WAGON (TB**V*), M/T (A) M6 FLANGE |
| 72 |
I8-97956 180-A |
|
CABLE; PARKING BRK RH |
1 |
0008-0106 |
|
4JA1 |
(A), PICK UP IND, M/T |
| 33 |
I9-09160 506-0 |
|
WASHER; PL, HAND BRK LEVER |
4 |
0008- |
|
4JA1 |
PICK UP (TB**S*), M/T ID=6 T=0.8 |
| 179 |
I9-09110 408-0 |
|
NUT; ROLLER, PARK BRK CABLE |
1 |
0008- |
|
4JA1 |
PICK UP (TB**S*), M/T M8 |
| 59 |
I8-94479 094-0 |
|
BRACKET; RELAY LEVER |
1 |
0008- |
|
4JA1 |
PICK UP (TB**S*), M/T |
| 179 |
I0-91110 508-0 |
|
NUT; ROLLER, PARK BRK CABLE |
1 |
0008- |
|
4JA1 |
PICK UP (TB**S*), M/T M8 |
| 72 |
I8-97956 576-A |
|
CABLE; PARKING BRK LH |
1 |
0107- |
|
4JA1 |
LH, (C), SHORT GRADE TOURING, IND |
| 289 |
I8-97202 449-0 |
|
NUT; PARKING BRK |
1 |
0008- |
|
4JA1 |
WAGON (TB**V*F) (A), M/T |
| 35 |
I8-94253 160-0 |
|
WASHER; PL, RELAY LEVER PARK BRK |
1 |
0008- |
|
4JA1 |
WAGON (TB**V*), M/T ID=6 OD=22 |
| 326 |
I8-97260 650-0 |
|
RETAINER; PARK CABLE |
1 |
0008- |
|
4JA1 |
|
| 72 |
I8-97956 184-A |
|
CABLE; PARKING BRK RH |
1 |
0008- |
|
4JA1 |
(C), WAGON LONG (TB**VF) LM, LV, LS GRADE ROYAL (RBB) IND, M/T, A/T |
| 25 |
I8-97179 727-0 |
|
SCREW; SW, PARKING BRK |
1 |
0612- |
|
4JA1-T |
WAGON (TB**V*), M/T |
| 54 |
I0-81122 015-0 |
|
PIN; SNAP, CABLE TO LEVER |
2 |
0008- |
|
4JA1 |
PICK UP (TB**S*), M/T L=15 |
| 367 |
I8-94334 899-0 |
|
GASKET; PLATE, SEAL |
4 |
0008- |
|
4JA1 |
WAGON (TB**V*F), M/T |
| 87 |
I7-05110 010-A |
|
NUT |
1 |
0008- |
|
4JA1 |
WAGON (TB**V*), M/T (B) M10 FLANGE |
| 57 |
I5-33659 053-0 |
|
BUSHING; RELAY LEVER |
2 |
0008- |
|
4JA1 |
PICK UP (TB**S*), M/T |
| 51 |
I0-82353 820-0 |
|
PIN; JOINT, RELAY LEVER |
2 |
0008- |
|
4JA1 |
PICK UP (TB**S*), M/T OD=8 L=20 |
| 25 |
I8-97179 727-0 |
|
SCREW; SW, PARKING BRK |
1 |
0008-0611 |
|
4JA1 |
WAGON (TB**V*), M/T |
| 135 |
I0-28480 616-0 |
|
BOLT; PARKING BRK BRKT |
4 |
0008- |
|
4JA1 |
GRADE NEW SUPER (RBA) GRADE ROYAL (RBB) EXC. HI GRADE (6PQ) M6X16 FLANGE, M/T |
| 43 |
I0-28650 840-0 |
|
BOLT; ROLLER, PARK BRK CABLE |
1 |
0008- |
|
4JA1 |
PICK UP (TB**S*), M/T M8X40 FLANGE |
| 181 |
I0-28680 616-0 |
|
BOLT; BRKT |
2 |
0008- |
|
4JA1 |
PICK UP (TB**S*), M/T M6X16 FLANGE |
| 26 |
I9-09150 508-0 |
|
WASHER; PARKING BRK SW |
1 |
0008- |
|
4JA1 |
PICK UP (TB**S*) ID=8.2 |
| 20 |
I8-94171 208-0 |
|
PIN; PARKING BRK |
1 |
0008- |
|
4JA1 |
PICK UP (TB**S*), M/T |
| 86 |
I0-28080 612-0 |
|
BOLT |
8 |
0008- |
|
4JA1 |
M6X12 FLANGE IND, M/T, A/T |
| 63 |
I8-94377 307-0 |
|
LEVER; RELAY, HAND BRK |
1 |
0008- |
|
4JA1 |
PICK UP (TB**S*), M/T |
| 29 |
I0-28480 820-0 |
|
BOLT; PARKING BRK LEVER TO BODY |
4 |
0612- |
|
4JA1-T |
WAGON (TB**V*), M/T M8X20 FLANGE |
| 22 |
I8-97187 717-0 |
|
PIN; SHAFT, PARKING BRK |
1 |
0008- |
|
4JA1 |
PICK UP (TB**S*), M/T |
| 328 |
I8-97166 162-1 |
|
PLATE; SEAL |
1 |
0008- |
|
4JA1 |
WAGON (TB**V*F), M/T |
| 72 |
I8-97956 578-A |
|
CABLE; PARKING BRK LH |
1 |
0107- |
|
4JA1 |
LH, (C), WAGON LONG GRADE TOURING, IND |
| 28 |
I0-28680 620-0 |
|
BOLT; HAND BRK LEVER |
2 |
0008- |
|
4JA1 |
PICK UP (TB**S*), M/T M6X20 FLANGE |
| 8 |
I8-97261 917-0 |
|
GUIDE; PARKING BRK |
1 |
0008- |
|
4JA1 |
PICK UP (TB**S*), M/T |
| 35 |
I9-09160 710-0 |
|
WASHER; PL, RELAY LEVER PARK BRK |
1 |
0008- |
|
4JA1 |
(B), PICK UP (TB**S*), M/T ID=10 OD=26 |
| 51 |
I9-08233 820-0 |
|
PIN; JOINT, RELAY LEVER |
2 |
0008- |
|
4JA1 |
PICK UP (TB**S*), M/T OD=8 L=20 |
| 52 |
I5-09509 001-0 |
|
WASHER; CURVED RELAY- LEVER |
2 |
0008- |
|
4JA1 |
PICK UP (TB**S*), M/T ID=8.5 T=0.3 |
| 23 |
I8-97179 739-0 |
|
SWITCH; PARKING BRK |
1 |
0008-0611 |
|
4JA1 |
WAGON (TB**V*), M/T |
| 72 |
I8-97956 183-A |
|
CABLE; PARKING BRK |
1 |
0008- |
|
4JA1 |
(C), SHORT (TB***C) LH LM, LV IND, M/T, A/T |
| 4 |
I8-97261 916-0 |
|
STEM; PARKING BRK |
1 |
0008- |
|
4JA1 |
PICK UP (TB**S*), M/T |
| 53 |
I8-94377 308-0 |
|
CABLE; PARK BRK, FRT LWR |
1 |
0008- |
|
4JA1 |
PICK UP (TB**S*), M/T |
| 23 |
I9-82750 367-0 |
|
SWITCH; PARKING BRK |
1 |
0008- |
|
4JA1 |
PICK UP (TB**S*) 12V, M/T |
| 38 |
I9-09150 510-0 |
|
WASHER; LK, RELAY LEVER PARK BRK |
1 |
0008- |
|
4JA1 |
PICK UP (TB**S*), M/T ID=10.2 |
| 5 |
I8-97261 919-0 |
|
BUSHING; PARKING BRK |
1 |
0008- |
|
4JA1 |
PICK UP (TB**S*), M/T |
| 85 |
I8-94146 602-0 |
|
CLIP; BRKT |
1 |
0008- |
|
4JA1 |
(B), M/T, A/T |
| 34 |
I8-94113 338-1 |
|
LEVER; PARK BRK CONT |
1 |
0008- |
|
4JA1 |
PICK UP (TB**S*), M/T |
| 29 |
I0-28480 820-0 |
|
BOLT; PARKING BRK LEVER TO BODY |
4 |
0008-0611 |
|
4JA1 |
WAGON (TB**V*), M/T M8X20 FLANGE |
| 16 |
I8-97202 451-0 |
|
BRACKET; PARKING BRK |
1 |
0008- |
|
4JA1 |
(A), M/T |
| 70 |
I9-09111 508-A |
|
NUT; EQUALIZER TO FRT CABLE |
2 |
0008- |
|
4JA1 |
PICK UP (TB**S*), M/T M8 |
| 6 |
I8-97162 045-0 |
|
PIN; STEM, PARK BRK |
1 |
0008- |
|
4JA1 |
PICK UP (TB**S*), M/T |
| 26 |
I0-91510 508-0 |
|
WASHER; PARKING BRK SW |
1 |
0008- |
|
4JA1 |
PICK UP (TB**S*) ID=8.2 |
| 58 |
I0-28680 820-0 |
|
BOLT; RELAY LEVER, PARK BRK |
4 |
0008- |
|
4JA1 |
PICK UP (TB**S*), M/T M8X20 FLANGE |
| 35 |
I9-09164 806-0 |
|
WASHER; PL, RELAY LEVER PARK BRK |
1 |
0008- |
|
4JA1 |
WAGON (TB**V*), M/T ID=6 OD=22 |
| 16 |
I8-97957 529-A |
|
BRACKET; PARKING BRK |
1 |
0612- |
|
4JA1-T |
(B), A/T, LM, LV, EXC.LS, IND |
| 168 |
I9-09150 506-0 |
|
WASHER; LK, HAND BRKT STEM |
4 |
0008- |
|
4JA1 |
PICK UP (TB**S*), M/T ID=6 |
| 72 |
I8-97956 575-A |
|
CABLE; PARKING BRK RH |
1 |
0107- |
|
4JA1 |
RH, (C), SHORT GRADE TOURING, IND |
| 289 |
I8-97202 450-0 |
|
NUT; PARKING BRK |
1 |
0008- |
|
4JA1 |
WAGON (TB**V*F) (B), M/T |
| 72 |
I8-97956 579-A |
|
CABLE; PARKING BRK LH |
1 |
0008-0106 |
|
4JA1 |
(B), PICK UP IND, M/T |
| 23 |
I8-97179 739-0 |
|
SWITCH; PARKING BRK |
1 |
0612- |
|
4JA1-T |
WAGON (TB**V*), M/T |
| 28 |
I0-28650 620-0 |
|
BOLT; HAND BRK LEVER |
2 |
0008- |
|
4JA1 |
PICK UP (TB**S*), M/T M6X20 FLANGE |
| 51 |
I8-97202 452-0 |
|
PIN; JOINT, RELAY LEVER |
1 |
0008- |
|
4JA1 |
WAGON (TB**V*) |
| 76 |
I8-11042 301-3 |
|
SLEEVE; CABLE GUIDE, P/BRK |
1 |
0008- |
|
4JA1 |

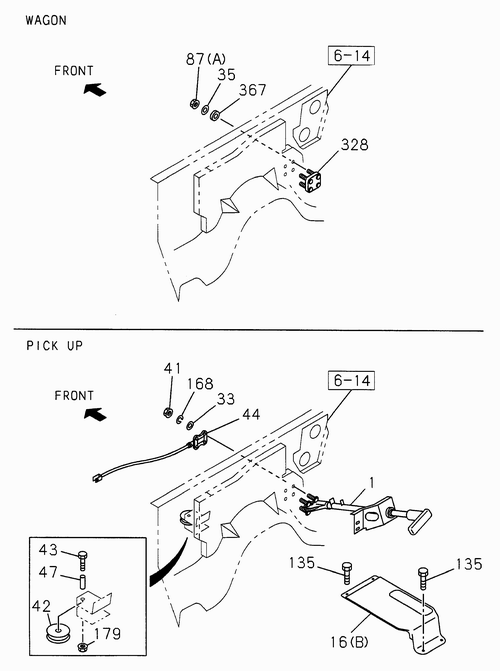

PICK UP (TB**S*), M/T |
| 44 |
I8-94367 559-A |
|

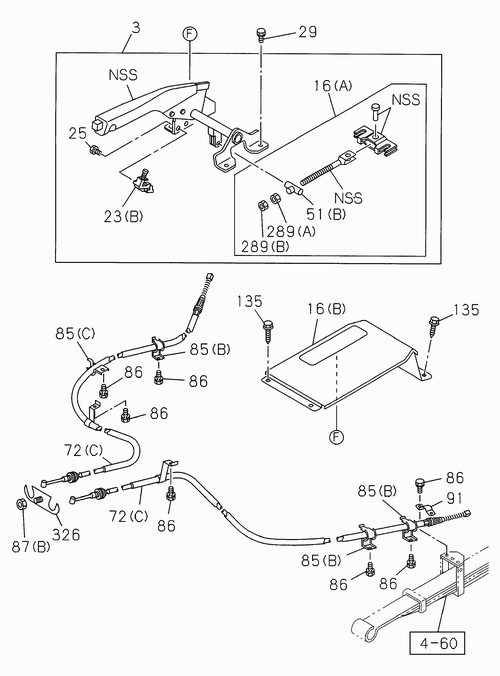

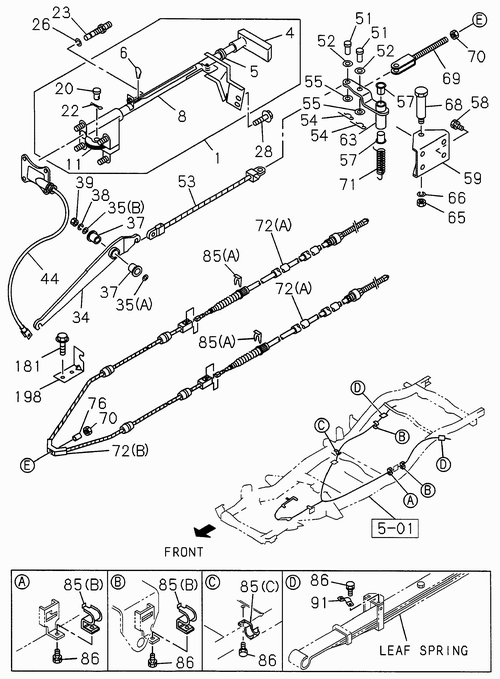

CABLE; PARKING BRK, FRT |
1 |
0008- |
|
4JA1 |
PICK UP (TB**S*), M/T |
