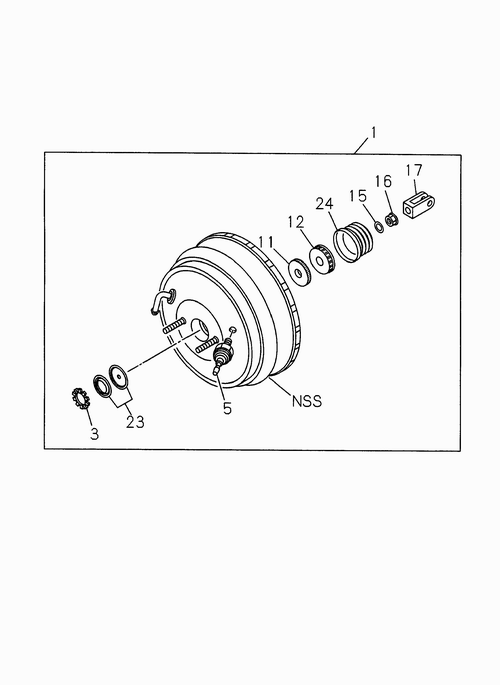

3-31 | BRAKE MASTER VAC AND BRAKE BOOSTER
PANTHER
PANTHER
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 23 | I8-97943 648-0 | SEAL; M/VAC | 1 | 0312-0611 | 4JA1 | WAGON, THA | ||
| 17 | I8-97256 792-0 | CLEVIS; YOKE, M/VAC | 1 | 0008-0611 | 4JA1 | WAGON | ||
| 23 | I8-97943 648-0 | SEAL; M/VAC | 1 | 0612- | 4JA1 | WAGON, THA | ||
| 24 | I8-94375 084-1 | GUARD; VLV BODY, M/VAC | 1 | 0612- | 4JA1-T | WAGON | ||
| 3 | I9-83315 319-0 | RETAINER; FRT SHELL, M/VAC | 1 | 0008- | 4JA1 | WAGON | ||
| 16 | I1-52139 008-0 | NUT; VLV ROD, M/VAC | 1 | 0008-0611 | 4JA1 | WAGON | ||
| 1 | I8-97180 555-1 | MASTER VAC ASM; BRK | 1 | 0008- | 4JA1 | WAGON | ||
| 1 | I8-97943 428-0 | MASTER VAC ASM; BRK | 1 | 0312-0611 | 4JA1 | WAGON, THA | ||
| 3 | I8-97944 052-0 | RETAINER; FRT SHELL, M/VAC | 1 | 0612- | 4JA1-T | WAGON, THA | ||
| 3 | I8-97040 871-0 | RETAINER; FRT SHELL, M/VAC | 1 | 0008-0611 | 4JA1 | WAGON | ||
| 1 | I8-97180 555-0 | MASTER VAC ASM; BRK | 1 | 0008-0311 | 4JA1 | WAGON | ||
| 5 | I8-94460 517-0 | SWITCH; VAC, M/VAC | 1 | 0612- | 4JA1-T | WAGON | ||
| 11 | I9-83345 063-0 | FILTER; M/VAC | 1 | 0008-0611 | 4JA1 | WAGON | ||
| 17 | I8-97256 792-0 | CLEVIS; YOKE, M/VAC | 1 | 0612- | 4JA1-T | WAGON | ||
| 16 | I1-52139 008-0 | NUT; VLV ROD, M/VAC | 1 | 0612- | 4JA1-T | WAGON | ||
| 12 | I8-94341 722-0 | SILENCER; M/VAC | 1 | 0008-0611 | 4JA1 | WAGON | ||
| 12 | I8-94341 722-0 | SILENCER; M/VAC | 1 | 0612- | 4JA1-T | WAGON | ||
| 24 | I8-94375 084-1 | GUARD; VLV BODY, M/VAC | 1 | 0008-0611 | 4JA1 | WAGON | ||
| 23 | I8-97261 943-0 | SEAL; M/VAC | 1 | 0008-0311 | 4JA1 | WAGON | ||
| 15 | I8-97944 053-0 | RETAINER; GUARD, M/VAC | 1 | 0612- | 4JA1-T | WAGON, THA | ||
| 1 | I8-98020 335-0 | MASTER VAC ASM; BRK | 1 | 0612- | 4JA1-T | IND | ||
| 15 | I8-94375 083-0 | RETAINER; GUARD, M/VAC | 1 | 0008-0611 | 4JA1 | WAGON | ||
| 5 | I8-94460 517-0 | SWITCH; VAC, M/VAC | 1 | 0008-0611 | 4JA1 | WAGON | ||
| 11 | I9-83345 063-0 | FILTER; M/VAC | 1 | 0612- | 4JA1-T | WAGON |
