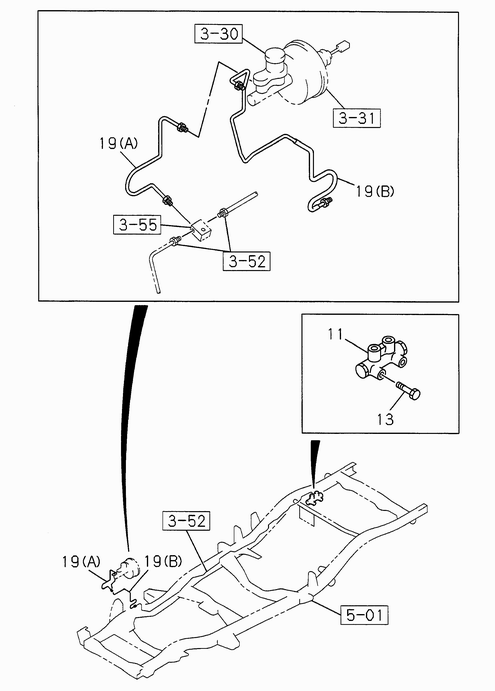

3-50 | BRAKE PIPING; OIL, MASTER CYLINDER
PANTHER
PANTHER
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 19 | I8-97957 648-A | PIPE; BRK, M/CYL TO UNION | 1 | 0612- | 4JA1-T | (B), LM, LV, LS | ||
| 11 | I8-94126 764-3 | VALVE; BRK CONT | 1 | 0612- | 4JA1-T | WAGON | ||
| 19 | I8-97957 556-A | PIPE; BRK, M/CYL TO UNION | 1 | 0008- | 4JA1 | (A) IND, PICK UP | ||
| 13 | I0-28080 845-0 | BOLT; VLV TO BRKT | 2 | 0612- | 4JA1-T | M8X45 FLANGE, PU, WGN | ||
| 13 | I0-28050 845-0 | BOLT; VLV TO BRKT | 2 | 0612- | 4JA1-T | M8X45 FLANGE, PU, WGN | ||
| 11 | I8-94126 764-3 | VALVE; BRK CONT | 1 | 0008-0611 | 4JA1 | WAGON | ||
| 19 | I8-97957 652-A | PIPE; BRK, M/CYL TO UNION | 1 | 0107-0611 | 4JA1 | (B), GRADE TOURING | ||
| 13 | I0-28080 845-0 | BOLT; VLV TO BRKT | 2 | 0008-0611 | 4JA1 | M8X45 FLANGE, PU, WGN | ||
| 19 | I8-97957 648-A | PIPE; BRK, M/CYL TO UNION | 1 | 0008-0611 | 4JA1 | (B), LM, LV, LS | ||
| 19 | I8-97957 652-A | PIPE; BRK, M/CYL TO UNION | 1 | 0612- | 4JA1 | (B), GRADE TOURING | ||
| 13 | I0-28050 845-0 | BOLT; VLV TO BRKT | 2 | 0008- | 4JA1 | M8X45 FLANGE, PU, WGN | ||
| 11 | I8-97012 557-0 | VALVE; BRK CONT | 1 | 0008- | 4JA1 | PICK UP |
