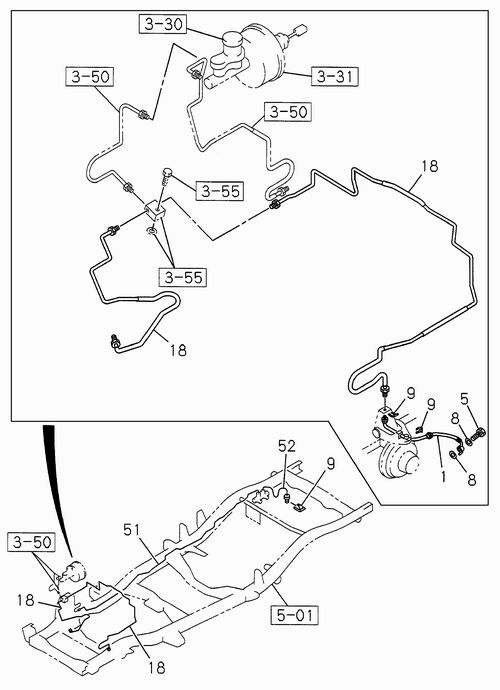

3-52 | BRAKE PIPING; OIL, FRONT
PANTHER
PANTHER
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 18 | I8-97957 558-A | PIPE; OIL, UNION TO FRT-FLEX HOSE (RH) | 1 | 0008-0106 | 4JA1 | RH, LM, LV, LS, IND | ||
| 18 | I8-97959 918-A | PIPE; OIL, UNION TO FRT-FLEX HOSE (RH) | 1 | 0107- | 4JA1 | RH, LM, LV, IND | ||
| 18 | I8-97562 664-A | PIPE; OIL, UNION TO FRT-FLEX HOSE (LH) | 1 | 0612- | 4JA1-T | GRADE TOURING, IND | ||
| 18 | I8-97957 649-A | PIPE; OIL, UNION TO FRT-FLEX HOSE (LH) | 1 | 0008-0106 | 4JA1 | LH, LM, LV, LS, IND | ||
| 1 | I8-97175 367-2 | HOSE; FLEX, FRT BRK | 2 | 0612- | 4JA1-T | WAGON | ||
| 18 | I8-97957 651-A | PIPE; OIL, UNION TO FRT-FLEX HOSE (LH) | 1 | 0107-0611 | 4JA1 | GRADE TOURING, IND | ||
| 51 | I8-97957 560-A | PIPE; BRK | 1 | 0612- | 4JA1-T | IND, PICK UP & WAGON LONG | ||
| 18 | I8-97957 650-A | PIPE; OIL, UNION TO FRT-FLEX HOSE (RH) | 1 | 0107-0611 | 4JA1 | GRADE TOURING, IND | ||
| 1 | I8-97175 367-2 | HOSE; FLEX, FRT BRK | 2 | 0107-0611 | 4JA1 | WAGON | ||
| 52 | I8-97957 562-A | PIPE; BRK | 1 | 0008-0611 | 4JA1 | IND, PICK UP, WAGON | ||
| 9 | I8-97162 347-0 | CLIP; FLEX HOSE, FRT BRK | 5 | 0008- | 4JA1 | PICK UP, WAGON | ||
| 51 | I8-97957 560-A | PIPE; BRK | 1 | 0008-0611 | 4JA1 | IND, PICK UP & WAGON LONG | ||
| 18 | I8-97957 650-A | PIPE; OIL, UNION TO FRT-FLEX HOSE (RH) | 1 | 0612- | 4JA1-T | GRADE TOURING, IND | ||
| 5 | I8-97381 454-0 | BOLT; EYE, FLEX HOSE | 2 | 0612- | 4JA1-T | |||
| 8 | I9-09571 410-0 | GASKET; FLEX HOSE | 4 | 0008-0611 | 4JA1 | ID=10.2 OD=16.0, PU/WGN | ||
| 5 | I8-98014 005-0 | BOLT; EYE, FLEX HOSE | 2 | 0612- | 4JA1-T | |||
| 51 | I8-97957 561-A | PIPE; BRK | 1 | 0008- | 4JA1 | IND, WAGON SHORT | ||
| 5 | I5-09675 017-0 | BOLT; EYE, FLEX HOSE | 2 | 0008-0611 | 4JA1 | M10X22, PICK UP, WAGON | ||
| 8 | I9-09571 410-0 | GASKET; FLEX HOSE | 4 | 0612- | 4JA1-T | ID=10.2 OD=16.0, PU/WGN | ||
| 9 | I8-94137 662-0 | CLIP; FLEX HOSE, FRT BRK | 5 | 0008- | 4JA1 | PICK UP, WAGON | ||
| 52 | I8-97957 562-A | PIPE; BRK | 1 | 0612- | 4JA1-T | IND, PICK UP, WAGON | ||
| 1 | I8-97175 367-1 | HOSE; FLEX, FRT BRK | 2 | 0008-0106 | 4JA1 | PICK UP, WAGON |
