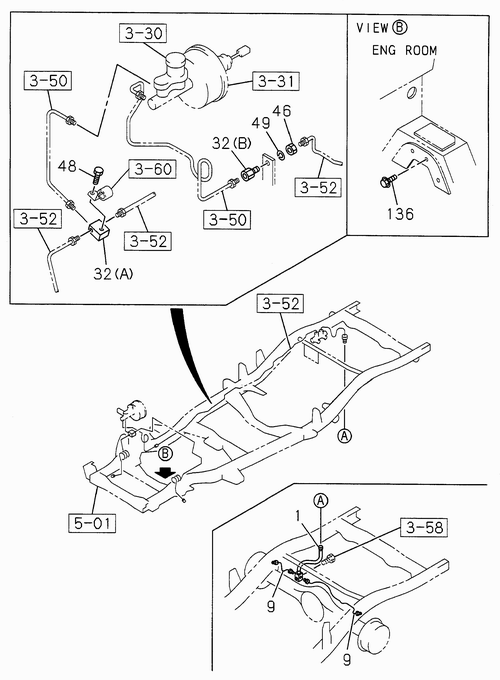

3-55 | BRAKE PIPING; OIL, REAR
PANTHER
PANTHER
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 46 | I0-91111 516-0 | NUT; UNION, OIL PIPE | 1 | 0612- | 4JA1-T | M16, WAGON | ||
| 9 | I8-97956 238-A | PIPE; BRK, RR AXLE | 1 | 0612- | 4JA1-T | LH IND, WAGON | ||
| 49 | I0-91510 516-0 | WASHER; LK, UNION, OIL PIPE | 1 | 0612- | 4JA1-T | ID=16, WAGON | ||
| 48 | I0-50140 635-0 | BOLT; PIPE CONNECTOR | 1 | 0612- | 4JA1-T | M6X35, WAGON | ||
| 9 | I8-97956 238-A | PIPE; BRK, RR AXLE | 1 | 0008-0611 | 4JA1 | LH IND, WAGON | ||
| 49 | I0-91510 516-0 | WASHER; LK, UNION, OIL PIPE | 1 | 0008- | 4JA1 | ID=16, WAGON | ||
| 9 | I8-97956 239-A | PIPE; BRK, RR AXLE | 1 | 0008-0611 | 4JA1 | RH IND, WAGON | ||
| 136 | I0-28050 610-0 | BOLT; GROMMET | 1 | 0612- | 4JA1-T | M6X10 FLANGE IND | ||
| 136 | I0-28050 610-0 | BOLT; GROMMET | 1 | 0008- | 4JA1 | M6X10 FLANGE IND | ||
| 48 | I0-50140 635-0 | BOLT; PIPE CONNECTOR | 1 | 0008-0611 | 4JA1 | M6X35, WAGON | ||
| 49 | I9-09150 516-0 | WASHER; LK, UNION, OIL PIPE | 1 | 0612- | 4JA1-T | ID=16, WAGON | ||
| 32 | I9-09227 055-0 | UNION; OIL PIPE | 1 | 0612- | 4JA1-T | (B) M16X17, PU/WAGON | ||
| 136 | I0-28080 610-0 | BOLT; GROMMET | 1 | 0612- | 4JA1-T | M6X10 FLANGE IND | ||
| 32 | I8-98008 113-0 | UNION; OIL PIPE | 1 | 0008- | 4JA1 | (A), WAGON | ||
| 9 | I8-97956 239-A | PIPE; BRK, RR AXLE | 1 | 0612- | 4JA1-T | RH IND, WAGON | ||
| 1 | I8-97251 612-0 | HOSE; FLEX, RR BRK | 1 | 0612- | 4JA1-T | WAGON | ||
| 1 | I8-97251 612-0 | HOSE; FLEX, RR BRK | 1 | 0008-0611 | 4JA1 | WAGON | ||
| 32 | I8-94406 895-0 | UNION; OIL PIPE | 1 | 0008-0611 | 4JA1 | (A), WAGON | ||
| 49 | I9-09150 516-0 | WASHER; LK, UNION, OIL PIPE | 1 | 0008-0611 | 4JA1 | ID=16, WAGON | ||
| 32 | I8-94406 895-0 | UNION; OIL PIPE | 1 | 0612- | 4JA1-T | (A), WAGON | ||
| 32 | I9-09227 055-0 | UNION; OIL PIPE | 1 | 0008-0611 | 4JA1 | (B) M16X17, PU/WAGON | ||
| 32 | I8-98008 113-0 | UNION; OIL PIPE | 1 | 0612- | 4JA1-T | (A), WAGON | ||
| 136 | I0-28080 610-0 | BOLT; GROMMET | 1 | 0008-0611 | 4JA1 | M6X10 FLANGE IND | ||
| 46 | I9-99111 416-0 | NUT; UNION, OIL PIPE | 1 | 0008-0611 | 4JA1 | M16, WAGON |
