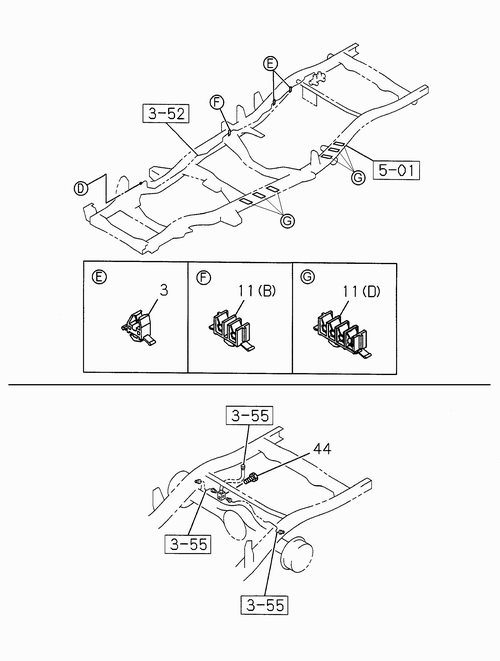

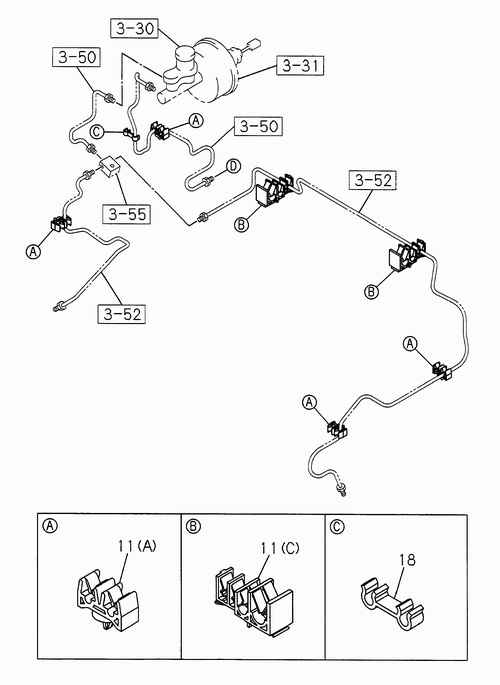

3-58 | FIXING PARTS; OIL PIPING
PANTHER
PANTHER
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 44 | I0-28680 830-0 | BOLT; CLIP TO FRAME | 1 | 0612- | 4JA1-T | M8X30 FLANGE | ||
| 18 | I8-94122 333-0 | CLIP; BRK PIPE | 1 | 0008- | 4JA1 | |||
| 18 | I8-94338 104-0 | CLIP; BRK PIPE | 1 | 0008-0611 | 4JA1 | |||
| 11 | I8-97102 873-0 | CLIP; OIL PIPE | 4 | 0612- | 4JA1-T | (C) | ||
| 11 | I8-94222 044-2 | CLIP; OIL PIPE | 4 | 0008-0611 | 4JA1 | (A) | ||
| 11 | I8-97146 096-0 | CLIP; OIL PIPE | 4 | 0612- | 4JA1-T | (D) | ||
| 11 | I8-94435 553-0 | CLIP; OIL PIPE | 4 | 0612- | 4JA1-T | (B) | ||
| 11 | I8-94435 553-0 | CLIP; OIL PIPE | 4 | 0008-0611 | 4JA1 | (B) | ||
| 44 | I0-28650 830-0 | BOLT; CLIP TO FRAME | 1 | 0008- | 4JA1 | M8X30 FLANGE | ||
| 11 | I8-97102 873-0 | CLIP; OIL PIPE | 4 | 0008-0611 | 4JA1 | (C) | ||
| 11 | I8-94222 044-2 | CLIP; OIL PIPE | 4 | 0612- | 4JA1-T | (A) | ||
| 3 | I8-94222 877-1 | CLIP; BRK PIPE | 2 | 0008-0611 | 4JA1 | H=28.8 | ||
| 18 | I8-94338 104-0 | CLIP; BRK PIPE | 1 | 0612- | 4JA1-T | |||
| 44 | I0-28650 830-0 | BOLT; CLIP TO FRAME | 1 | 0612- | 4JA1-T | M8X30 FLANGE | ||
| 18 | I8-94122 333-0 | CLIP; BRK PIPE | 1 | 0612- | 4JA1-T | |||
| 44 | I0-28680 830-0 | BOLT; CLIP TO FRAME | 1 | 0008-0611 | 4JA1 | M8X30 FLANGE | ||
| 3 | I8-94222 877-1 | CLIP; BRK PIPE | 2 | 0612- | 4JA1-T | H=28.8 |
