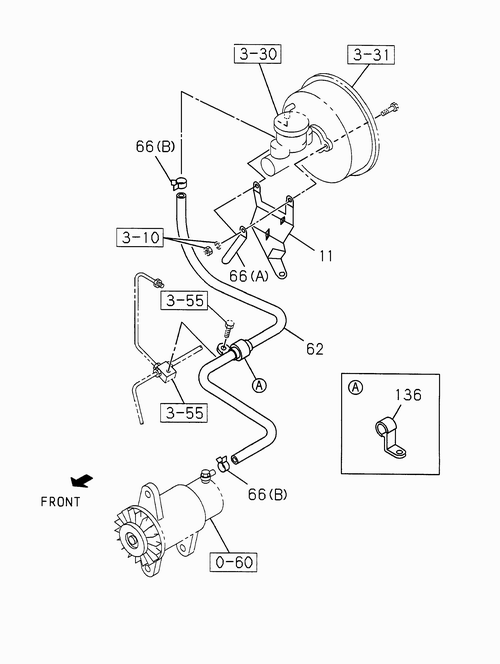

3-60 | BRAKE PIPING; VACUUM
PANTHER
PANTHER
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 66 | I8-98008 098-0 | CLIP; VAC HOSE, M/VAC | 2 | 0612- | 4JA1-T | (B) ID=16, WAGON | ||
| 62 | I8-97301 143-1 | HOSE; VAC, M/VAC TO VAC PUMP | 1 | 0008- | 4JA1 | WAGON, LM, LV, LS | ||
| 136 | I1-09700 909-0 | CLIP; VAC HOSE | 1 | 0612- | 4JA1-T | ID=19, H=40, L=25 WAGON | ||
| 62 | I8-97301 154-1 | HOSE; VAC, M/VAC TO VAC PUMP | 1 | 0107-0209 | 4JA1 | GRADE TOURING | ||
| 136 | I1-09700 909-0 | CLIP; VAC HOSE | 1 | 0008-0611 | 4JA1 | ID=19, WAGON | ||
| 66 | I8-98008 098-0 | CLIP; VAC HOSE, M/VAC | 2 | 0008- | 4JA1 | (B) ID=16, WAGON | ||
| 62 | I8-97313 702-0 | HOSE; VAC, M/VAC TO VAC PUMP | 1 | 0107-0209 | 4JA1 | LM, LV | ||
| 11 | I8-97356 402-0 | BRACKET; CLIP | 1 | 0612- | 4JA1-T | WAGON, THA | ||
| 66 | I8-94238 568-0 | CLIP; VAC HOSE, M/VAC | 2 | 0612- | 4JA1-T | (B) ID=16, WAGON | ||
| 66 | I8-94329 956-0 | CLIP; VAC HOSE, M/VAC | 2 | 0612- | 4JA1-T | (A) L=91 ID=8.5, WAGON | ||
| 62 | I8-97301 154-2 | HOSE; VAC, M/VAC TO VAC PUMP | 1 | 0210-0611 | 4JA1 | GRADE TOURING | ||
| 62 | I8-98019 828-1 | HOSE; VAC, M/VAC TO VAC PUMP | 1 | 0612- | 4JA1-T | LM, LV, LS | ||
| 62 | I8-97313 702-1 | HOSE; VAC, M/VAC TO VAC PUMP | 1 | 0210-0611 | 4JA1 | LM, LV, LS | ||
| 66 | I8-94238 568-0 | CLIP; VAC HOSE, M/VAC | 2 | 0008-0611 | 4JA1 | (B) ID=16, WAGON | ||
| 66 | I8-94329 956-0 | CLIP; VAC HOSE, M/VAC | 2 | 0008-0611 | 4JA1 | (A) L=91 ID=8.5, WAGON | ||
| 62 | I8-98020 848-1 | HOSE; VAC, M/VAC TO VAC PUMP | 1 | 0612- | 4JA1-T | GRADE TOURING | ||
| 62 | I8-97301 143-0 | HOSE; VAC, M/VAC TO VAC PUMP | 1 | 0009-0106 | 4JA1 | |||
| 62 | I8-97289 368-0 | HOSE; VAC, M/VAC TO VAC PUMP | 1 | 0008-0008 | 4JA1 | WAGON, LM, LV, LS | ||
| 62 | I8-97301 143-1 | HOSE; VAC, M/VAC TO VAC PUMP | 1 | 0009- | 4JA1 |
