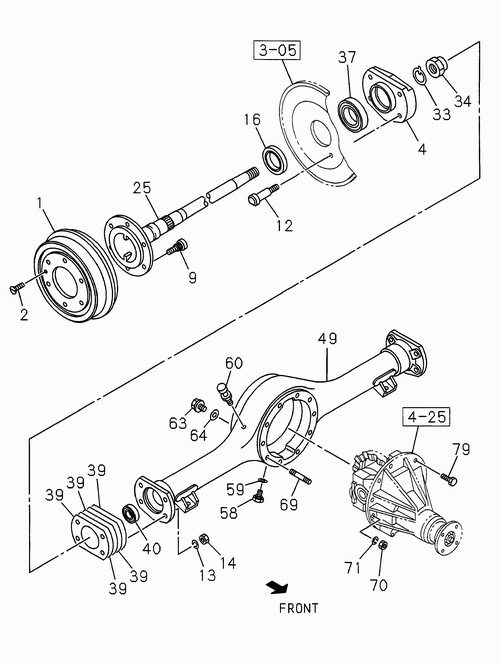

4-20 | REAR AXLE CASE AND SHAFT
PANTHER
PANTHER
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 12 | I8-94477 674-2 | BOLT; BEARING HOLDER | 4 | 0612- | 4JA1-T | M12X72 | ||
| 34 | I8-94177 815-0 | NUT; AXLE SHAFT | 2 | 0008-0611 | 4JA1 | WAGON | ||
| 13 | I9-09150 512-0 | WASHER; LK, BRG HOLDER | 8 | 0008-0611 | 4JA1 | ID=12 | ||
| 70 | I5-09400 020-0 | NUT; CARRIER | 2 | 0612- | 4JA1-T | M8 | ||
| 60 | I8-97383 656-0 | BREATHER; RR AXLE CASE | 1 | 0612- | 4JA1-T | L=22 | ||
| 16 | I8-94318 909-0 | SEAL; OIL, RR HUB, OUTER | 2 | 0008-0611 | 4JA1 | ID=47 OD=70 | ||
| 13 | I9-09150 512-0 | WASHER; LK, BRG HOLDER | 8 | 0612- | 4JA1-T | ID=12 | ||
| 49 | I8-97958 930-0 | CASE; RR AXLE | 1 | 0612- | 4JA1-T | IND | ||
| 79 | I8-98022 411-0 | BOLT; COVER TO CASE | 2 | 0612- | 4JA1-T | M8X30 W/LK WASHER | ||
| 79 | I8-97093 664-1 | BOLT; COVER TO CASE | 4 | 0612- | 4JA1-T | M8X25 W/LK WASHER | ||
| 9 | I8-97944 831-0 | PIN; WHEEL, RR AXLE | 12 | 0612- | 4JA1-T | M12X42.5, EURO 2 | ||
| 39 | I8-94469 779-0 | SHIM; BEARING HOLDER | AR | 0008- | 4JA1 | T=0.050 | ||
| 79 | I8-97093 664-1 | BOLT; COVER TO CASE | 4 | 0008-0611 | 4JA1 | M8X25 W/LK WASHER | ||
| 64 | I8-94462 734-0 | GASKET; OIL FILER, AXLE CASE | 1 | 0612- | 4JA1-T | ID=20 OD=30 | ||
| 71 | I9-09150 808-0 | WASHER; LK, FINAL DRIVE SETTING | 2 | 0008-0611 | 4JA1 | ID=8 | ||
| 70 | I5-09400 020-0 | NUT; CARRIER | 2 | 0008-0611 | 4JA1 | M8 | ||
| 2 | I9-03090 616-0 | BOLT; BRK DRUM | 2 | 0612- | 4JA1-T | M6X16 | ||
| 79 | I8-98022 411-0 | BOLT; COVER TO CASE | 2 | 0008- | 4JA1 | M8X30 W/LK WASHER | ||
| 59 | I9-09571 416-0 | GASKET; DRAIN PLUG | 1 | 0612- | 4JA1-T | ID=16.2 OD=24 | ||
| 12 | I9-42119 603-2 | BOLT; BEARING HOLDER | 4 | 0008-0611 | 4JA1 | M12X69 | ||
| 14 | I9-99110 412-0 | NUT; BRG HOLDER TO CASE | 8 | 0008-0611 | 4JA1 | M12 | ||
| 9 | I8-97944 831-0 | PIN; WHEEL, RR AXLE | 12 | 0008- | 4JA1 | M12X42.5, EURO 2 | ||
| 39 | I8-94469 778-0 | SHIM; BEARING HOLDER | AR | 0008- | 4JA1 | T=0.076 | ||
| 79 | I8-98022 410-0 | BOLT; COVER TO CASE | 4 | 0008- | 4JA1 | M8X25 W/LK WASHER | ||
| 79 | I8-97093 665-1 | BOLT; COVER TO CASE | 2 | 0612- | 4JA1-T | M8X30 W/LK WASHER | ||
| 49 | I8-97958 930-0 | CASE; RR AXLE | 1 | 0008-0611 | 4JA1 | IND | ||
| 71 | I0-91510 808-0 | WASHER; LK, FINAL DRIVE SETTING | 2 | 0612- | 4JA1-T | ID=8 | ||
| 2 | I9-03090 616-0 | BOLT; BRK DRUM | 2 | 0008-0611 | 4JA1 | M6X16 | ||
| 14 | I0-91110 512-0 | NUT; BRG HOLDER TO CASE | 8 | 0612- | 4JA1-T | M12 | ||
| 13 | I0-91510 512-0 | WASHER; LK, BRG HOLDER | 8 | 0612- | 4JA1-T | ID=12 | ||
| 37 | I9-00093 627-A | BEARING; HUB INN, RR AXLE | 2 | 0612- | 4JA1-T | (IADG) NSK IND | ||
| 40 | I8-94318 910-0 | SEAL; OIL, REAR AXLE | 2 | 0612- | 4JA1-T | WAGON | ||
| 2 | I0-36410 616-0 | BOLT; BRK DRUM | 2 | 0612- | 4JA1-T | M6X16 | ||
| 39 | I8-94469 776-0 | SHIM; BEARING HOLDER | AR | 0008- | 4JA1 | T=0.500 | ||
| 1 | I8-97956 672-A | DRUM; BRK, RR | 2 | 0612- | 4JA1-T | IND, PICK UP, WAGON | ||
| 4 | I8-94223 079-4 | HOLDER; BRG, AXLE SHAFT | 2 | 0008-0106 | 4JA1 | |||
| 40 | I6-94318 910-0 | OIL SEAL RR HUB TBR541 | 2 | 0908- | 4JA1 | (IADG) WAGON | ||
| 16 | I6-94318 909-0 | OIL SEAL RR HUB TBR541 | 2 | 0908- | 4JA1 | (IADG) ID=47 OD=70 | ||
| 79 | I8-97093 665-1 | BOLT; COVER TO CASE | 2 | 0008-0611 | 4JA1 | M8X30 W/LK WASHER | ||
| 69 | I5-09300 037-0 | STUD; AXLE CASE | 2 | 0008-0611 | 4JA1 | M8X25 L=36 | ||
| 40 | I8-94318 910-0 | SEAL; OIL, REAR AXLE | 2 | 0008-0611 | 4JA1 | WAGON | ||
| 59 | I9-09571 416-0 | GASKET; DRAIN PLUG | 1 | 0008-0611 | 4JA1 | ID=16.2 OD=24 | ||
| 64 | I8-94462 734-0 | GASKET; OIL FILER, AXLE CASE | 1 | 0008-0611 | 4JA1 | ID=20 OD=30 | ||
| 58 | I8-97109 869-0 | PLUG; DRAIN, AXLE CASE | 1 | 0008-0611 | 4JA1 | M16X12.5 | ||
| 71 | I0-91510 808-0 | WASHER; LK, FINAL DRIVE SETTING | 2 | 0008- | 4JA1 | ID=8 | ||
| 16 | I6-94318 909-0 | SEAL; OIL RR HUB OUT | 2 | 0008-0611 | 4JA1 | (IADG) ID=47 OD=70 | ||
| 58 | I8-97109 869-0 | PLUG; DRAIN, AXLE CASE | 1 | 0612- | 4JA1-T | M16X12.5 | ||
| 4 | I8-94223 079-4 | HOLDER; BRG, AXLE SHAFT | 2 | 0107-0611 | 4JA1 | |||
| 69 | I5-09300 037-0 | STUD; AXLE CASE | 2 | 0612- | 4JA1-T | M8X25 L=36 | ||
| 39 | I8-94469 775-0 | SHIM; BEARING HOLDER | AR | 0008- | 4JA1 | T=1.000 | ||
| 34 | I6-94177 815-0 | NUT AXLE SHAFT | 2 | 0008-0611 | 4JA1 | (IADG) WAGON | ||
| 4 | I8-94223 079-4 | HOLDER; BRG, AXLE SHAFT | 2 | 0612- | 4JA1-T | EURO 2 | ||
| 63 | I9-09662 005-0 | PLUG; OIL FILLER, AXLE CASE | 1 | 0612- | 4JA1-T | M20X10.5 | ||
| 13 | I0-91510 512-0 | WASHER; LK, BRG HOLDER | 8 | 0008- | 4JA1 | ID=12 | ||
| 187 | I5-87411 901-0 | PIN SET; WHEEL, RR | 12 | 1210- | 4JA1-T | REAR | ||
| 39 | I8-94469 777-0 | SHIM; BEARING HOLDER | AR | 0008- | 4JA1 | T=0.130 | ||
| 9 | I8-97213 870-0 | PIN; WHEEL, RR AXLE | 12 | 0612- | 4JA1-T | M12X42.5, EURO 2 | ||
| 9 | I8-97213 870-0 | PIN; WHEEL, RR AXLE | 12 | 0008-0611 | 4JA1 | M12X42.5, EURO 2 | ||
| 12 | I8-94477 674-2 | BOLT; BEARING HOLDER | 4 | 0008-0611 | 4JA1 | M12X72 | ||
| 33 | I8-97086 473-0 | WASHER; AXLE SHAFT | 2 | 0612- | 4JA1-T | WAGON | ||
| 60 | I8-94416 611-1 | BREATHER; RR AXLE CASE | 1 | 0008-0611 | 4JA1 | L=22 | ||
| 34 | I8-94177 815-0 | NUT; AXLE SHAFT | 2 | 0612- | 4JA1-T | WAGON | ||
| 37 | I9-00093 627-A | BEARING; HUB INNER, RR AXLE | 2 | 0008-0611 | 4JA1 | (IADG) NSK IND | ||
| 60 | I8-94416 611-1 | BREATHER; RR AXLE CASE | 1 | 0612- | 4JA1-T | L=22 | ||
| 79 | I8-98022 410-0 | BOLT; COVER TO CASE | 4 | 0612- | 4JA1-T | M8X25 W/LK WASHER | ||
| 1 | I8-97956 672-A | DRUM; BRK, RR | 2 | 0008-0611 | 4JA1 | IND, PICK UP, WAGON | ||
| 25 | I8-97942 194-0 | SHAFT; AXLE, RR | 2 | 0612- | 4JA1-T | THA, EURO 2 | ||
| 33 | I8-97086 473-0 | WASHER; AXLE SHAFT | 2 | 0008-0611 | 4JA1 | WAGON | ||
| 25 | I8-97942 194-0 | SHAFT; AXLE, RR | 2 | 0012-0611 | 4JA1 | THA | ||
| 71 | I9-09150 808-0 | WASHER; LK, FINAL DRIVE SETTING | 2 | 0612- | 4JA1-T | ID=8 | ||
| 60 | I8-97383 656-0 | BREATHER; RR AXLE CASE | 1 | 0008- | 4JA1 | L=22 | ||
| 2 | I0-36410 616-0 | BOLT; BRK DRUM | 2 | 0008- | 4JA1 | M6X16 | ||
| 79 | I8-97093 666-1 | BOLT; COVER TO CASE | 2 | 0612- | 4JA1-T | M8X90 W/LK WASHER | ||
| 79 | I8-98022 412-0 | BOLT; COVER TO CASE | 2 | 0008- | 4JA1 | M8X90 W/LK WASHER | ||
| 79 | I8-98022 412-0 | BOLT; COVER TO CASE | 2 | 0612- | 4JA1-T | M8X90 W/LK WASHER | ||
| 16 | I8-94318 909-0 | SEAL; OIL, RR HUB, OUTER | 2 | 0612- | 4JA1-T | ID=47 OD=70 | ||
| 63 | I9-09662 005-0 | PLUG; OIL FILLER, AXLE CASE | 1 | 0008-0611 | 4JA1 | M20X10.5 | ||
| 25 | I8-94178 143-4 | SHAFT; AXLE, RR | 2 | 0008-0011 | 4JA1 | THA | ||
| 12 | I9-42119 603-2 | BOLT; BEARING HOLDER | 4 | 0612- | 4JA1-T | M12X69 | ||
| 79 | I8-97093 666-1 | BOLT; COVER TO CASE | 2 | 0008-0611 | 4JA1 | M8X90 W/LK WASHER |
