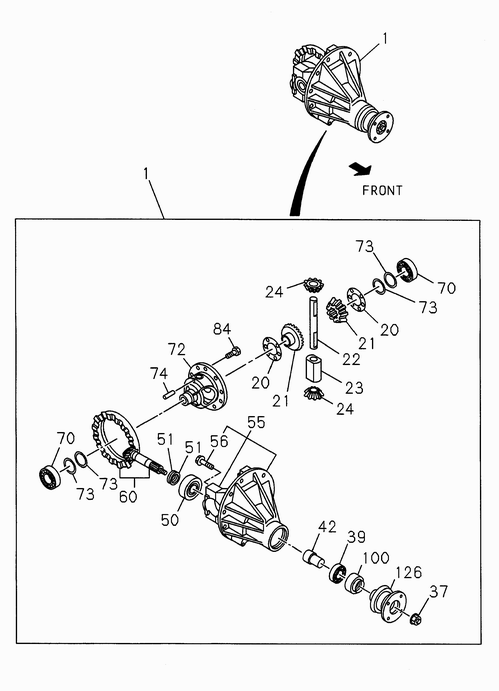

| 55 |
I5-41110 014-3 |
|
CARRIER; DIFF |
1 |
0008-0611 |
|
4JA1 |
WAGON |
| 74 |
I9-09878 096-0 |
|
PIN; LK, CROSS PIN |
1 |
0612- |
|
4JA1-T |
WAGON |
| 20 |
I5-41562 005-1 |
|
WASHER; THRUST, SIDE GEAR |
2 |
0008- |
|
4JA1 |
T=1.00 |
| 42 |
I8-94472 118-0 |
|
COLLAR; DIST, COLLAPSIBLE |
1 |
0008-0611 |
|
4JA1 |
WAGON |
| 50 |
I9-00093 621-1 |
|
BEARING; FINAL PINION |
1 |
0008-0611 |
|
4JA1 |
NSK |
| 21 |
I8-97302 697-1 |
|
GEAR; SIDE, DIFF |
2 |
0107- |
|
4JA1 |
WAGON M/T FINAL GEAR RATIO 43/10 WAGON A/T AISIN (RMD) FINAL GEAR RATIO 41/8 |
| 60 |
I8-97218 303-1 |
|
GEAR SET; FINAL DRIVE, RR |
1 |
0107- |
|
4JA1 |
M/T MSG 5 SPEED (M75) FINAL GEAR RATIO 43/10(S7C) |
| 51 |
I9-41519 153-1 |
|
SHIM; PINION, FINAL DRIVE |
AR |
0008- |
|
4JA1 |
T=2.18 |
| 84 |
I8-97038 065-0 |
|
BOLT; FINAL DRIVE GEAR |
10 |
0612- |
|
4JA1-T |
M10X17 |
| 1 |
I8-98074 855-0 |
|
DRIVE ASM; FINAL, RR |
1 |
0612- |
|
4JA1-T |
WAGON M/T, IND FINAL GEAR RATIO 43/11 |
| 1 |
I8-97306 616-A |
|
DRIVE ASM; FINAL, RR |
1 |
0107-0611 |
|
4JA1 |
WAGON M/T, IND FINAL GEAR RATIO 43/10 |
| 72 |
I8-97038 515-A |
|
CAGE; DIFF |
1 |
0008- |
|
4JA1 |
IND |
| 51 |
I9-41519 159-1 |
|
SHIM; PINION, FINAL DRIVE |
AR |
0008- |
|
4JA1 |
T=2.30 |
| 37 |
I8-94376 262-0 |
|
NUT; DRIVING PINION |
1 |
0008-0611 |
|
4JA1 |
M18 LOCK |
| 24 |
I8-97302 696-0 |
|
GEAR; PINION, DIFF |
2 |
0612- |
|
4JA1-T |
M/T MSG 5 SPEED(M75) FINAL GEAR RATIO 41/11 Z=10 |
| 70 |
I9-00093 074-A |
|
BEARING; DIFF CAGE |
2 |
0612- |
|
4JA1-T |
(IADG) NSK |
| 51 |
I9-41519 164-1 |
|
SHIM; PINION, FINAL DRIVE |
AR |
0008- |
|
4JA1 |
T=2.40 |
| 22 |
I9-41521 044-1 |
|
PIN; CROSS, DIFF PINION |
1 |
0612- |
|
4JA1-T |
WAGON |
| 126 |
I8-94426 786-A |
|
COUPLING; DRIVING PINION |
1 |
0612- |
|
4JA1-T |
IND |
| 51 |
I9-41519 154-1 |
|
SHIM; PINION, FINAL DRIVE |
AR |
0008- |
|
4JA1 |
T=2.20 |
| 51 |
I9-41519 162-1 |
|
SHIM; PINION, FINAL DRIVE |
AR |
0008- |
|
4JA1 |
T=2.36 |
| 60 |
I8-97220 400-0 |
|
GEAR SET; FINAL DRIVE, RR |
1 |
0107- |
|
4JA1 |
A/T AISIN(RMD) FINAL GEAR RATIO 41/8 (RU1) |
| 56 |
I8-94376 322-0 |
|
BOLT; BEARING CAP |
4 |
0008-0611 |
|
4JA1 |
M12X62 |
| 24 |
I8-97079 518-0 |
|
GEAR; PINION, DIFF |
2 |
0008-0611 |
|
4JA1 |
M/T MSG 5 SPEED(M75) FINAL GEAR RATIO 41/10(GT5) A/T AISIN (RMD) FINAL GEAR RATIO 43/9(S2J) |
| 21 |
I8-97302 697-0 |
|
GEAR; SIDE, DIFF |
2 |
0107-0611 |
|
4JA1 |
WAGON M/T FINAL GEAR RATIO 43/10 WAGON A/T AISIN (RMD) FINAL GEAR RATIO 41/8 |
| 50 |
I9-00093 621-A |
|
BEARING; FINAL PINION |
|
0008-0611 |
|
4JA1 |
(IADG) NSK |
| 51 |
I9-41519 165-1 |
|
SHIM; PINION, FINAL DRIVE |
AR |
0008- |
|
4JA1 |
T=2.42 |
| 60 |
I8-97039 251-1 |
|
GEAR SET; FINAL DRIVE, RR |
1 |
0107-0611 |
|
4JA1 |
M/T MSG 5 SPEED (M75) FINAL GEAR RATIO 43/10(S7C) |
| 51 |
I9-41519 160-1 |
|
SHIM; PINION, FINAL DRIVE |
AR |
0008- |
|
4JA1 |
T=2.32 |
| 60 |
I8-98013 577-1 |
|
GEAR SET; FINAL DRIVE, RR |
1 |
0612- |
|
4JA1-T |
M/T MSG 5 SPEED (M75) FINAL GEAR RATIO43/11(GT5) LM, SMART, SMAR FF, RYL, RYL FF, LS TURBO |
| 70 |
I9-00093 074-0 |
|
BEARING; DIFF CAGE |
2 |
0008-0611 |
|
4JA1 |
NSK |
| 51 |
I9-41519 172-1 |
|
SHIM; PINION, FINAL DRIVE |
AR |
0008- |
|
4JA1 |
T=2.56 |
| 1 |
I8-97302 762-A |
|
DRIVE ASM; FINAL, RR |
1 |
0107- |
|
4JA1 |
WAGON A/T, IND FINAL GEAR RATIO 41/8 |
| 51 |
I9-41519 155-1 |
|
SHIM; PINION, FINAL DRIVE |
AR |
0008- |
|
4JA1 |
T=2.22 |
| 51 |
I9-41519 170-1 |
|
SHIM; PINION, FINAL DRIVE |
AR |
0008- |
|
4JA1 |
T=2.52 |
| 1 |
I8-94314 055-3 |
|
DRIVE ASM; FINAL, RR |
1 |
0008- |
|
4JA1 |
WAGON A/T, IND FINAL GEAR RATIO 43/9 |
| 21 |
I8-97079 519-2 |
|
GEAR; SIDE, DIFF |
2 |
0008- |
|
4JA1 |
WAGON M/T FINAL GEAR RATIO 41/10 WAGON A/T AISIN (RMD) FINAL GEAR RATIO 43/9 Z=17 |
| 73 |
I9-41519 111-0 |
|
SHIM; DIFF SIDE BEARING |
AR |
0008- |
|
4JA1 |
T=0.15 |
| 21 |
I8-97079 519-2 |
|
GEAR; SIDE, DIFF |
2 |
0612- |
|
4JA1-T |
WAGON M/T FINAL GEAR RATIO 43/11 Z=17 |
| 100 |
I8-97146 826-0 |
|
SEAL; OIL, FINAL PINION |
1 |
0008-0611 |
|
4JA1 |
NOK |
| 39 |
I8-94472 099-A |
|
BEARING; FINAL PINION |
1 |
0612- |
|
4JA1-T |
(IADG) NSK |
| 70 |
I9-00093 074-A |
|
BEARING; DIFF CAGE |
|
0008-0611 |
|
4JA1 |
(IADG) NSK |
| 24 |
I8-97079 518-0 |
|
GEAR; PINION, DIFF |
2 |
0612- |
|
4JA1-T |
M/T MSG 5 SPEED(M75) FINAL GEAR RATIO 43/11 Z=10 |
| 20 |
I5-41562 007-1 |
|
WASHER; THRUST, SIDE GEAR |
2 |
0008- |
|
4JA1 |
T=1.10 |
| 100 |
I8-97207 784-0 |
|
SEAL; OIL, FINAL PINION |
1 |
0612- |
|
4JA1-T |
TKK |
| 100 |
I8-97146 826-0 |
|
SEAL; OIL, FINAL PINION |
1 |
0612- |
|
4JA1-T |
NOK |
| 21 |
I8-97079 519-1 |
|
GEAR; SIDE, DIFF |
2 |
0008-0611 |
|
4JA1 |
WAGON M/T FINAL GEAR RATIO 41/10 WAGON A/T AISIN (RMD) FINAL GEAR RATIO 43/9 Z=17 |
| 51 |
I9-41519 161-1 |
|
SHIM; PINION, FINAL DRIVE |
AR |
0008- |
|
4JA1 |
T=2.34 |
| 24 |
I8-97302 696-0 |
|
GEAR; PINION, DIFF |
2 |
0107- |
|
4JA1 |
M/T MSG 5 SPEED(M75) FINAL GEAR RATIO 43/10(S7C) A/T AISIN (RMD) FINAL GEAR RATIO 41/8(RU1) |
| 51 |
I9-41519 171-1 |
|
SHIM; PINION, FINAL DRIVE |
AR |
0008- |
|
4JA1 |
T=2.54 |
| 50 |
I9-00093 621-0 |
|
BEARING; FINAL PINION |
1 |
0612- |
|
4JA1-T |
NSK |
| 39 |
I8-94472 099-A |
|
BEARING F/PINION,PT |
|
0008-0611 |
|
4JA1 |
(IADG) NSK |
| 51 |
I9-41519 169-1 |
|
SHIM; PINION, FINAL DRIVE |
AR |
0008- |
|
4JA1 |
T=2.50 |
| 21 |
I8-97302 697-0 |
|
GEAR; SIDE, DIFF |
2 |
0612- |
|
4JA1-T |
WAGON M/T FINAL GEAR RATIO 43/10 Z=17 |
| 23 |
I9-41525 015-2 |
|
BLOCK; THRUST, DIFF BOX |
1 |
0008-0611 |
|
4JA1 |
WAGON |
| 73 |
I9-41519 109-0 |
|
SHIM; DIFF SIDE BEARING |
AR |
0008- |
|
4JA1 |
T=0.24 |
| 39 |
I8-94472 100-1 |
|
BEARING; FINAL PINION |
1 |
0612- |
|
4JA1-T |
KOYO |
| 1 |
I8-97306 616-A |
|
DRIVE ASM; FINAL, RR |
1 |
0612- |
|
4JA1-T |
WAGON M/T, IND FINAL GEAR RATIO 43/10 |
| 60 |
I8-97039 255-1 |
|
GEAR SET; FINAL DRIVE, RR |
1 |
0008- |
|
4JA1 |
A/T AISIN (RMD) FINAL GEAR RATIO 43/9 (S2J) |
| 51 |
I9-41519 168-1 |
|
SHIM; PINION, FINAL DRIVE |
AR |
0008- |
|
4JA1 |
T=2.48 |
| 60 |
I8-98013 593-1 |
|
GEAR SET; FINAL DRIVE, RR |
1 |
1409- |
|
4JA1 |
A/T AISIN(RMD) FINAL GEAR RATIO 41/8 (RU1) |
| 1 |
I8-94314 055-A |
|
DRIVE ASM; FINAL, RR |
1 |
0008- |
|
4JA1 |
WAGON A/T, IND FINAL GEAR RATIO 43/9 |
| 51 |
I9-41519 156-1 |
|
SHIM; PINION, FINAL DRIVE |
AR |
0008- |
|
4JA1 |
T=2.24 |
| 51 |
I9-41519 163-1 |
|
SHIM; PINION, FINAL DRIVE |
AR |
0008- |
|
4JA1 |
T=2.38 |
| 39 |
I8-94472 099-0 |
|
BEARING; FINAL PINION |
1 |
0008-0611 |
|
4JA1 |
NSK |
| 1 |
I8-98074 856-0 |
|
DRIVE ASM; FINAL, RR |
1 |
0008- |
|
4JA1 |
WAGON M/T, IND FINAL GEAR RATIO 41/10 |
| 126 |
I8-94426 786-A |
|
COUPLING; DRIVING PINION |
1 |
0008-0611 |
|
4JA1 |
IND |
| 84 |
I8-97038 065-0 |
|
BOLT; FINAL DRIVE GEAR |
10 |
0008-0611 |
|
4JA1 |
M10X17 |
| 100 |
I6-97146 826-0 |
|
OIL SEAL FINAL TBR541 |
1 |
0908- |
|
4JA1 |
(IADG) NOK |
| 70 |
I9-00093 074-0 |
|
BEARING; DIFF CAGE |
2 |
0612- |
|
4JA1-T |
NSK |
| 60 |
I8-97218 303-1 |
|
GEAR SET; FINAL DRIVE, RR |
1 |
0612- |
|
4JA1 |
M/T MSG 5 SPEED (M75) FINAL GEAR RATIO 43/10(S7C) LV ADV, TUOR, GTOUR |
| 51 |
I9-41519 166-1 |
|
SHIM; PINION, FINAL DRIVE |
AR |
0008- |
|
4JA1 |
T=2.44 |
| 100 |
I8-97207 784-0 |
|
SEAL; OIL, FINAL PINION |
1 |
0008-0611 |
|
4JA1 |
TKK |
| 39 |
I8-94472 100-1 |
|
BEARING; FINAL PINION |
1 |
0008-0611 |
|
4JA1 |
KOYO |
| 24 |
I8-97079 518-0 |
|
GEAR; PINION, DIFF |
2 |
0612- |
|
4JA1-T |
M/T MSG 5 SPEED(M75) FINAL GEAR RATIO 41/11 Z=10 |
| 73 |
I8-97130 386-0 |
|
SHIM; DIFF SIDE BEARING |
AR |
0008- |
|
4JA1 |
T=0.10 |
| 56 |
I8-94376 322-0 |
|
BOLT; BEARING CAP |
4 |
0612- |
|
4JA1-T |
M12X62 |
| 22 |
I9-41521 044-1 |
|
PIN; CROSS, DIFF PINION |
1 |
0008-0611 |
|
4JA1 |
WAGON |
| 1 |
I8-94474 305-A |
|
DRIVE ASM; FINAL, RR |
1 |
0008- |
|
4JA1 |
WAGON M/T, IND FINAL GEAR RATIO 41/10 |
| 73 |
I8-97130 387-0 |
|
SHIM; DIFF SIDE BEARING |
AR |
0008- |
|
4JA1 |
T=0.50 |
| 60 |
I8-97063 573-0 |
|
GEAR SET; FINAL DRIVE, RR |
1 |
0008-0611 |
|
4JA1 |
M/T MSG 5 SPEED (M75) FINAL GEAR RATIO41/10(GT5) |
| 21 |
I8-97302 697-1 |
|
GEAR; SIDE, DIFF |
2 |
0612- |
|
4JA1-T |
WAGON M/T FINAL GEAR RATIO 43/10 Z=17 |
| 39 |
I8-94472 099-A |
|
BEARING; FINAL PINION |
1 |
0612- |
|
4JA1-T |
(IADG) NSK |
| 100 |
I6-97146 826-0 |
|
SEAL; OIL FINAL PINION |
1 |
0008-0611 |
|
4JA1 |
(IADG) NOK |
| 72 |
I8-97038 515-A |
|
CAGE; DIFF |
1 |
0008- |
|
4JA1 |
IND |
| 50 |
I9-00093 621-A |
|
BEARING; FINAL PINION |
1 |
0612- |
|
4JA1-T |
(IADG) NSK |
| 55 |
I5-41110 014-3 |
|
CARRIER; DIFF |
1 |
0612- |
|
4JA1-T |
WAGON |
| 72 |
I8-97481 632-1 |
|
CAGE; DIFF |
1 |
0008- |
|
4JA1 |
IND |
| 20 |
I5-41562 006-1 |
|
WASHER; THRUST, SIDE GEAR |
2 |
0008- |
|
4JA1 |
T=1.05 |
| 1 |
I8-97304 194-A |
|
DRIVE ASM; FINAL, RR |
1 |
0612- |
|
4JA1-T |
WAGON M/T, IND FINAL GEAR RATIO 43/11 |
| 42 |
I8-94472 118-0 |
|
COLLAR; DIST, COLLAPSIBLE |
1 |
0612- |
|
4JA1-T |
WAGON |
| 23 |
I9-41525 015-2 |
|
BLOCK; THRUST, DIFF BOX |
1 |
0612- |
|
4JA1-T |
WAGON |
| 60 |
I8-97039 255-1 |
|
GEAR SET; FINAL DRIVE, RR |
1 |
0107- |
|
4JA1 |
A/T AISIN(RMD) FINAL GEAR RATIO43/9(RU1) |
| 21 |
I8-97079 519-1 |
|
GEAR; SIDE, DIFF |
2 |
0612- |
|
4JA1-T |
WAGON M/T FINAL GEAR RATIO 43/11 Z=17 |
| 74 |
I9-09878 096-0 |
|
PIN; LK, CROSS PIN |
1 |
0008-0611 |
|
4JA1 |
WAGON |
| 37 |
I8-94376 262-0 |
|
NUT; DRIVING PINION |
1 |
0612- |
|
4JA1-T |
M18 LOCK |
| 72 |
I8-97481 632-1 |
|
CAGE; DIFF |
1 |
0008- |
|
4JA1 |
IND |
| 51 |
I9-41519 167-1 |
|
SHIM; PINION, FINAL DRIVE |
AR |
0008- |
|
4JA1 |
T=2.46 |
| 60 |
I8-97039 251-1 |
|
GEAR SET; FINAL DRIVE, RR |
1 |
0612- |
|
4JA1 |
M/T MSG 5 SPEED (M75) FINAL GEAR RATIO 43/10(S7C) LV ADV, TUOR, GTOUR |
| 51 |
I9-41519 158-1 |
|
SHIM; PINION, FINAL DRIVE |
AR |
0008- |
|
4JA1 |
T=2.28 |
| 60 |
I8-98013 580-1 |
|
GEAR SET; FINAL DRIVE, RR |
1 |
0008- |
|
4JA1 |
M/T MSG 5 SPEED (M75) FINAL GEAR RATIO41/10(GT5) |
| 51 |
I9-41519 157-1 |
|
SHIM; PINION, FINAL DRIVE |
AR |
0008- |
|
4JA1 |
T=2.26 |
