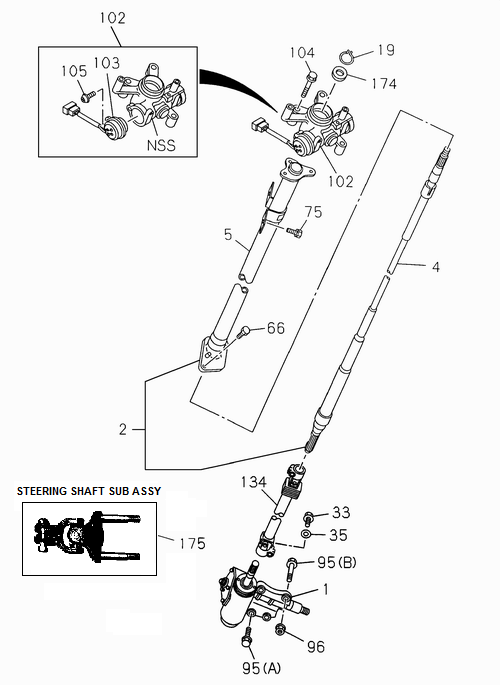

4-31 | STEERING COLUMN AND SHAFT
PANTHER
PANTHER
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 19 | I9-09180 017-0 | RING; SNAP, STRG SHAFT | 1 | 0008-0611 | 4JA1 | |||
| 174 | I8-97176 323-0 | RUBBER; CUSHION, STRG COLUMN | 1 | 0612- | 4JA1-T | |||
| 1 | I8-97175 660-0 | STEERING UNIT | 1 | 0008-0010 | 4JA1 | PICK UP | ||
| 102 | I8-97171 892-1 | LOCK ASM; STEERING | 1 | 0612- | 4JA1-T | EURO 2 | ||
| 2 | I8-97562 661-A | SHAFT; STEERING | 1 | 0612- | 4JA1-T | IND | ||
| 95 | I0-28091 025-0 | BOLT; STEERING UNIT | 1 | 0008-0611 | 4JA1 | (A) M10X25 | ||
| 1 | I8-97305 510-0 | STEERING UNIT | 1 | 0011-0106 | 4JA1 | PICK UP | ||
| 33 | I8-94247 692-0 | BOLT; STRG SHAFT TO UNIT | 1 | 0612- | 4JA1-T | M8X30 | ||
| 175 | I8-99161 010-A | STEERING SHAFT SUB ASSY | 1 | 1405- | 4JA1-T | TBR541 | ||
| 75 | I8-94331 747-1 | BOLT; STRG COLUMN | 2 | 0612- | 4JA1-T | M8X25 | ||
| 96 | I8-97087 007-0 | NUT; STEERING UNIT | 3 | 0008- | 4JA1 | M10 FLANGE | ||
| 2 | I8-97562 661-A | SHAFT; STEERING | 1 | 0008-0611 | 4JA1 | IND | ||
| 5 | I8-97956 598-A | COLUMN; STEERING | 1 | 0008- | 4JA1 | IND | ||
| 66 | I8-94331 747-1 | BOLT; STRG COLUMN | 2 | 0008-0611 | 4JA1 | M8X25 | ||
| 35 | I9-09150 508-0 | WASHER; LK, STRG SHAFT | 1 | 0612- | 4JA1-T | ID=8, 2 | ||
| 105 | I9-03910 412-0 | SCREW; IGNITION SWITCH | 1 | 0612- | 4JA1-T | M4X12 W/LK WASHER | ||
| 134 | I8-97562 646-A | SHAFT; STEERING, 2ND | 1 | 0612- | 4JA1-T | IND, LM, SMART, SMART FF RYL, RYL FF, LS TURBO EURO 2 | ||
| 96 | I8-97087 007-0 | NUT; STEERING UNIT | 3 | 0612- | 4JA1-T | M10 FLANGE | ||
| 95 | I8-94371 561-2 | BOLT; STEERING UNIT | 3 | 0612- | 4JA1-T | (B) M10X100 | ||
| 1 | I8-97175 632-5 | STEERING UNIT | 1 | 0612- | 4JA1-T | WAGON SHORT, LONG | ||
| 95 | I0-28091 025-0 | BOLT; STEERING UNIT | 1 | 0612- | 4JA1-T | (A) M10X25 | ||
| 103 | I8-97020 997-0 | SWITCH; IGNITION | 1 | 0008- | 4JA1 | |||
| 33 | I8-97359 615-0 | BOLT; STRG SHAFT TO UNIT | 1 | 0612- | 4JA1-T | M8X30 | ||
| 102 | I8-97171 892-1 | LOCK ASM; STEERING | 1 | 0008- | 4JA1 | |||
| 96 | I8-94313 797-0 | NUT; STEERING UNIT | 3 | 0612- | 4JA1-T | M10 FLANGE | ||
| 134 | I8-97562 659-A | SHAFT; STEERING, 2ND | 1 | 0612- | 4JA1-T | IND, ADVENDURE, TOURING GRAND TOURING EURO 2 | ||
| 19 | I9-09180 017-0 | RING; SNAP, STRG SHAFT | 1 | 0612- | 4JA1-T | |||
| 1 | I8-97175 632-5 | STEERING UNIT | 1 | 0008-0611 | 4JA1 | WAGON SHORT, LONG | ||
| 95 | I0-28061 025-0 | BOLT; STEERING UNIT | 1 | 0008- | 4JA1 | (A) M10X25 | ||
| 75 | I8-94331 747-1 | BOLT; STRG COLUMN | 2 | 0008-0611 | 4JA1 | M8X25 | ||
| 103 | I8-97020 997-0 | SWITCH; IGNITION | 1 | 0612- | 4JA1-T | |||
| 134 | I8-97956 599-A | SHAFT; STEERING, 2ND | 1 | 0008-0611 | 4JA1 | IND, NEW SUPER, ROYAL HI GRADE | ||
| 35 | I9-09150 508-0 | WASHER; LK, STRG SHAFT | 1 | 0008-0611 | 4JA1 | ID=8, 2 | ||
| 4 | I8-97956 597-A | SHAFT; STEERING | 1 | 0008- | 4JA1 | IND | ||
| 35 | I0-91510 508-0 | WASHER; LK, STRG SHAFT | 1 | 0612- | 4JA1-T | ID=8, 2 | ||
| 95 | I0-28061 025-0 | BOLT; STEERING UNIT | 1 | 0612- | 4JA1-T | (A) M10X25 | ||
| 33 | I8-97359 615-0 | BOLT; STRG SHAFT TO UNIT | 1 | 0008- | 4JA1 | M8X30 | ||
| 105 | I9-03910 412-0 | SCREW; IGNITION SWITCH | 1 | 0008- | 4JA1 | M4X12 W/LK WASHER | ||
| 134 | I8-97956 710-A | SHAFT; STEERING, 2ND | 1 | 0107-0611 | 4JA1 | IND, TOURING, GRD TOURING | ||
| 104 | I8-97122 790-0 | BOLT; STEERING LOCK | 3 | 0008- | 4JA1 | M6X25 W/LK & PL WASHER | ||
| 174 | I8-97176 323-0 | RUBBER; CUSHION, STRG COLUMN | 1 | 0008-0611 | 4JA1 | |||
| 104 | I8-97122 790-0 | BOLT; STEERING LOCK | 3 | 0612- | 4JA1-T | M6X25 W/LK & PL WASHER | ||
| 33 | I8-94247 692-0 | BOLT; STRG SHAFT TO UNIT | 1 | 0008-0611 | 4JA1 | M8X30 | ||
| 66 | I8-94331 747-1 | BOLT; STRG COLUMN | 2 | 0612- | 4JA1-T | M8X25 | ||
| 35 | I0-91510 508-0 | WASHER; LK, STRG SHAFT | 1 | 0008- | 4JA1 | ID=8, 2 | ||
| 96 | I8-94313 797-0 | NUT; STEERING UNIT | 3 | 0008-0611 | 4JA1 | M10 FLANGE | ||
| 95 | I8-94371 561-2 | BOLT; STEERING UNIT | 3 | 0008-0611 | 4JA1 | (B) M10X100 |
