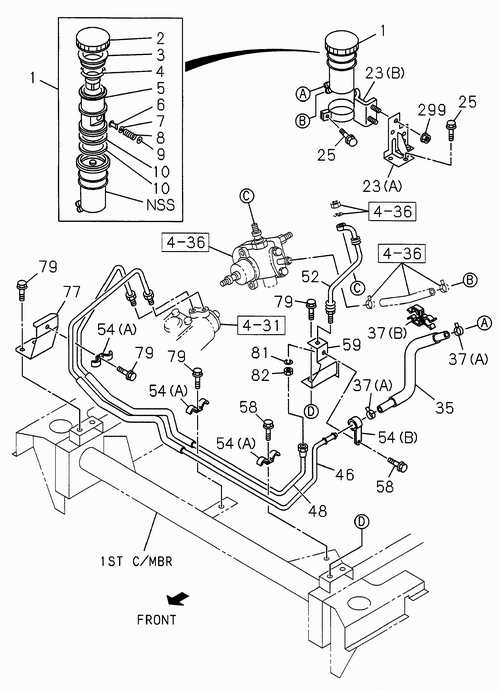

4-35 | POWER STEERING CONTROL; CHASSIS SIDE
PANTHER
PANTHER
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 25 | I0-28480 616-0 | BOLT; OIL TANK BRACKET | 3 | 0008-0611 | 4JA1 | COOLER WO/HEATER (YL1) M6X16 FLANGE | ||
| 77 | I8-97120 709-A | BRACKET; POWER STRG HOSE | 1 | 0008-0611 | 4JA1 | IND | ||
| 54 | I8-94222 795-A | CLIP; OIL PIPE | 3 | 0008-0611 | 4JA1 | (A) IND | ||
| 5 | I8-94405 458-1 | STRAINER; OIL TANK, P/S | 1 | 0008-0209 | 4JA1 | WAGON SHORT/LONG | ||
| 23 | I8-97957 744-A | BRACKET; OIL TANK, P/S | 1 | 0008-0611 | 4JA1 | (B) IND | ||
| 9 | I5-21219 006-0 | COVER; SPR, OIL TANK, P/S | 1 | 0008- | 4JA1 | WAGON SHORT/LONG | ||
| 10 | I8-94405 457-0 | SEAL; OIL TANK, P/S | 2 | 0612- | 4JA1-T | WAGON SHORT/LONG | ||
| 25 | I0-28480 616-0 | BOLT; OIL TANK BRACKET | 3 | 0612- | 4JA1-T | COOLER WO/HEATER (YL1) M6X16 FLANGE | ||
| 23 | I8-97957 742-A | BRACKET; OIL TANK, P/S | 1 | 0008-0611 | 4JA1 | (A) COOLER WO/HEATER (YL1) | ||
| 3 | I8-94246 510-0 | GASKET; OIL TANK, P/S | 1 | 0008-0611 | 4JA1 | WAGON SHORT/LONG | ||
| 54 | I8-94222 795-A | CLIP; OIL PIPE | 3 | 0612- | 4JA1-T | (A) IND | ||
| 46 | I8-97957 578-A | PIPE; OIL, P/S UNIT TO OIL TANK | 1 | 0008-0611 | 4JA1 | IND | ||
| 35 | I0-09809 450-0 | HOSE; RETURN, P/S TANK | 1 | 0204-0611 | 4JA1 | GRADE SUPER, ROYAL, LS | ||
| 299 | I8-98049 362-0 | NUT; OIL TANK BRKT | 2 | 0612- | 4JA1-T | M6 FLANGE | ||
| 58 | I0-28480 616-0 | BOLT; CLIP | 2 | 0008-0611 | 4JA1 | M6X16 FLANGE | ||
| 1 | I8-94105 282-7 | TANK ASM; OIL, P/S | 1 | 0008-0209 | 4JA1 | WAGON SHORT/LONG | ||
| 8 | I5-09580 088-1 | SPRING; OIL TANK, P/S | 1 | 0008- | 4JA1 | WAGON SHORT/LONG | ||
| 35 | I0-09809 450-0 | HOSE; RETURN, P/S TANK | 1 | 0612- | 4JA1-T | GRADE SUPER, ROYAL, LS | ||
| 35 | I8-97191 253-1 | HOSE; RETURN, P/S TANK | 1 | 0008-0203 | 4JA1 | GRADE SUPER, ROYAL | ||
| 77 | I8-97120 709-A | BRACKET; POWER STRG HOSE | 1 | 0612- | 4JA1-T | IND | ||
| 5 | I8-97351 631-0 | STRAINER; OIL TANK, P/S | 1 | 0612- | 4JA1-T | WAGON SHORT/LONG | ||
| 2 | I5-21241 001-2 | CAP; OIL TANK, P/S | 1 | 0008-0611 | 4JA1 | WAGON SHORT/LONG | ||
| 54 | I8-94296 897-A | CLIP; OIL PIPE | 1 | 0612- | 4JA1-T | (B) IND | ||
| 3 | I8-94246 510-0 | GASKET; OIL TANK, P/S | 1 | 0612- | 4JA1-T | WAGON SHORT/LONG | ||
| 37 | I8-94238 568-0 | CLIP; HOSE, P/S | 2 | 0612- | 4JA1-T | (A) ID=16 | ||
| 5 | I8-97351 631-0 | STRAINER; OIL TANK, P/S | 1 | 0210-0611 | 4JA1 | WAGON SHORT/LONG | ||
| 82 | I9-99111 516-0 | NUT; FLEX HOSE, P/S | 1 | 0612- | 4JA1-T | M16 | ||
| 4 | I8-94204 441-1 | FILTER; OIL TANK, P/S | 1 | 0612- | 4JA1-T | WAGON SHORT/LONG | ||
| 59 | I8-97148 544-A | BRACKET; CLIP, OIL PIPE | 1 | 0612- | 4JA1-T | IND | ||
| 82 | I9-99111 516-0 | NUT; FLEX HOSE, P/S | 1 | 0210-0611 | 4JA1 | M16 | ||
| 54 | I8-94222 795-1 | CLIP; OIL PIPE | 3 | 0008- | 4JA1 | (A) IND | ||
| 7 | I5-21219 007-0 | RING; GASKET, OIL TANK, P/S | 1 | 0008- | 4JA1 | WAGON SHORT/LONG | ||
| 37 | I8-94317 707-0 | CLIP; HOSE, P/S | 1 | 0008-0611 | 4JA1 | (B) D=14, 5/22 | ||
| 6 | I5-21219 005-0 | HOLDER; GASKET, OIL TANK P/S | 1 | 0008- | 4JA1 | WAGON SHORT/LONG | ||
| 4 | I8-94204 441-1 | FILTER; OIL TANK, P/S | 1 | 0008-0611 | 4JA1 | WAGON SHORT/LONG | ||
| 37 | I8-94238 568-0 | CLIP; HOSE, P/S | 2 | 0008-0611 | 4JA1 | (A) ID=16 | ||
| 54 | I8-94296 897-A | CLIP; OIL PIPE | 1 | 0008-0611 | 4JA1 | (B) IND | ||
| 37 | I8-98008 098-0 | CLIP; HOSE, P/S | 2 | 0008- | 4JA1 | (A) ID=16 | ||
| 46 | I8-97957 578-A | PIPE; OIL, P/S UNIT TO OIL TANK | 1 | 0612- | 4JA1-T | IND | ||
| 1 | I8-94105 282-8 | TANK ASM; OIL, P/S | 1 | 0612- | 4JA1-T | WAGON SHORT/LONG | ||
| 35 | I8-97204 869-1 | HOSE; RETURN, P/S TANK | 1 | 0107-0611 | 4JA1 | GRADE TOURING (RBG) | ||
| 58 | I0-28480 616-0 | BOLT; CLIP | 2 | 0612- | 4JA1-T | M6X16 FLANGE | ||
| 37 | I8-94317 707-0 | CLIP; HOSE, P/S | 1 | 0612- | 4JA1-T | (B) D=14, 5/22 | ||
| 82 | I9-99111 416-0 | NUT; FLEX HOSE, P/S | 1 | 0008-0209 | 4JA1 | M16 | ||
| 59 | I8-97148 544-A | BRACKET; CLIP, OIL PIPE | 1 | 0008-0611 | 4JA1 | IND | ||
| 54 | I8-94222 795-1 | CLIP; OIL PIPE | 3 | 0612- | 4JA1-T | (A) IND | ||
| 79 | I0-28480 616-0 | BOLT; BRACKET | 5 | 0008-0611 | 4JA1 | M6X16 FLANGE | ||
| 23 | I8-97957 742-A | BRACKET; OIL TANK, P/S | 1 | 0612- | 4JA1-T | (A) COOLER WO/HEATER (YL1) | ||
| 299 | I5-09440 004-0 | NUT; OIL TANK BRKT | 2 | 0008-0611 | 4JA1 | M6 FLANGE | ||
| 54 | I8-94296 897-1 | CLIP; OIL PIPE | 1 | 0008- | 4JA1 | (B) IND | ||
| 52 | I8-97255 065-2 | HOSE; FLEX, P/S CONT VLV | 1 | 0008-0611 | 4JA1 | WAGON SHORT/LONG | ||
| 25 | I0-28480 616-0 | BOLT; OIL TANK BRACKET | 1 | 0612- | 4JA1-T | M6X16 FLANGE | ||
| 299 | I5-09440 004-0 | NUT; OIL TANK BRKT | 2 | 0612- | 4JA1-T | M6 FLANGE | ||
| 23 | I8-97957 744-A | BRACKET; OIL TANK, P/S | 1 | 0612- | 4JA1-T | (B) IND | ||
| 1 | I8-94105 282-8 | TANK ASM; OIL, P/S | 1 | 0210-0611 | 4JA1 | WAGON SHORT/LONG | ||
| 52 | I8-97255 065-2 | HOSE; FLEX, P/S CONT VLV | 1 | 0612- | 4JA1-T | WAGON SHORT/LONG | ||
| 81 | I9-09151 216-0 | WASHER; LK, FLEX HOSE | 1 | 0612- | 4JA1-T | ID=16 | ||
| 48 | I8-97957 579-A | PIPE; OIL, FLEX HOSE TO STEERING UNIT | 1 | 0612- | 4JA1-T | IND | ||
| 2 | I5-21241 001-2 | CAP; OIL TANK, P/S | 1 | 0612- | 4JA1-T | WAGON SHORT/LONG | ||
| 54 | I8-94296 897-1 | CLIP; OIL PIPE | 1 | 0612- | 4JA1-T | (B) IND | ||
| 10 | I8-94405 457-0 | SEAL; OIL TANK, P/S | 2 | 0008-0611 | 4JA1 | WAGON SHORT/LONG | ||
| 48 | I8-97957 579-A | PIPE; OIL, FLEX HOSE TO STEERING UNIT | 1 | 0008-0611 | 4JA1 | IND | ||
| 81 | I9-09151 216-0 | WASHER; LK, FLEX HOSE | 1 | 0008-0611 | 4JA1 | ID=16 | ||
| 81 | I0-91541 216-0 | WASHER; LK, FLEX HOSE | 1 | 0008- | 4JA1 | ID=16 | ||
| 25 | I0-28480 616-0 | BOLT; OIL TANK BRACKET | 1 | 0008-0611 | 4JA1 | M6X16 FLANGE | ||
| 35 | I8-97204 869-1 | HOSE; RETURN, P/S TANK | 1 | 0612- | 4JA1 | GRADE TOURING (RBG) | ||
| 37 | I8-98008 098-0 | CLIP; HOSE, P/S | 2 | 0612- | 4JA1-T | (A) ID=16 | ||
| 299 | I8-98049 362-0 | NUT; OIL TANK BRKT | 2 | 0008- | 4JA1 | M6 FLANGE | ||
| 81 | I0-91541 216-0 | WASHER; LK, FLEX HOSE | 1 | 0612- | 4JA1-T | ID=16 | ||
| 79 | I0-28480 616-0 | BOLT; BRACKET | 5 | 0612- | 4JA1-T | M6X16 FLANGE |
