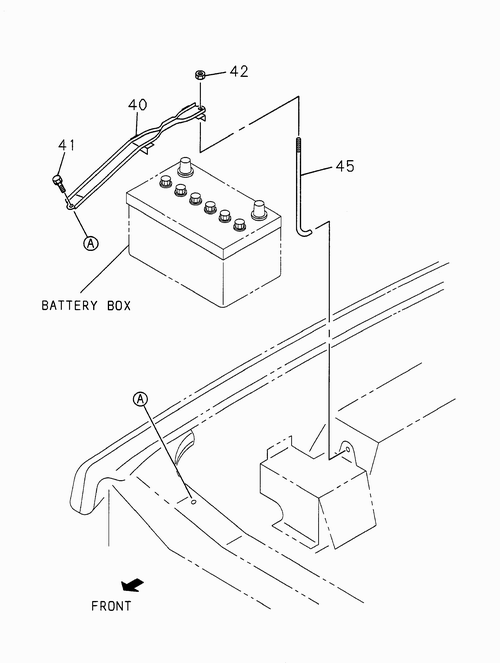

5-20 | BATTERY CARRIER
PANTHER
PANTHER
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 45 | I8-94238 991-A | ROD; TENSION, BATTERY | 1 | 0612- | 4JA1-T | L=190 IND | ||
| 41 | I0-28680 620-0 | BOLT; CLAMP, BATTERY | 1 | 0612- | 4JA1-T | M6 X 20 FLANGE | ||
| 42 | I0-91180 106-0 | NUT; CLAMP | 1 | 0008- | 4JA1 | M6 FLANGE | ||
| 45 | I8-94238 991-A | ROD; TENSION, BATTERY | 1 | 0008-0611 | 4JA1 | L=190 IND | ||
| 40 | I8-97958 860-A | CLAMP; BATTERY | 1 | 0008-0611 | 4JA1 | IND | ||
| 42 | I0-91150 106-0 | NUT; CLAMP | 1 | 0008-0611 | 4JA1 | M6 FLANGE | ||
| 42 | I0-91150 106-0 | NUT; CLAMP | 1 | 0612- | 4JA1-T | M6 FLANGE | ||
| 42 | I0-91180 106-0 | NUT; CLAMP | 1 | 0612- | 4JA1-T | M6 FLANGE | ||
| 40 | I8-97958 860-A | CLAMP; BATTERY | 1 | 0612- | 4JA1-T | IND | ||
| 41 | I0-28650 620-0 | BOLT; CLAMP, BATTERY | 1 | 0612- | 4JA1-T | M6 X 20 FLANGE | ||
| 41 | I0-28650 620-0 | BOLT; CLAMP, BATTERY | 1 | 0008- | 4JA1 | M6 X 20 FLANGE | ||
| 41 | I0-28680 620-0 | BOLT; CLAMP, BATTERY | 1 | 0008-0611 | 4JA1 | M6 X 20 FLANGE |
