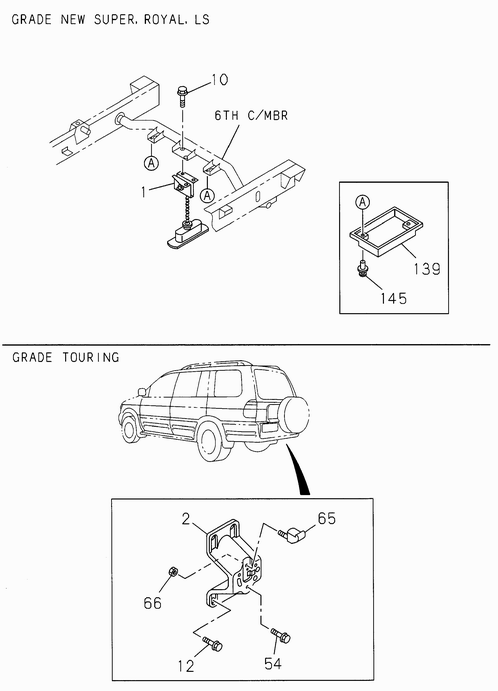

5-30 | SPARE TIRE CARRIER AND COVER
PANTHER
PANTHER
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 1 | I7-89910 113-A | HANGER ASM; TIRE FT | 1 | 1401- | 4JA1-T | TBR12 | ||
| 65 | I8-97170 336-1 | SADDLE SPARE TIRE | 1 | 0107-0611 | 4JA1 | GRADE TOURING (RBG) | ||
| 1 | I8-97943 827-1 | HANGER ASM; TIRE FT | 1 | 0008- | 4JA1 | LM, LV, LS | ||
| 1 | I8-97192 397-0 | HANGER ASM; TIRE FT | 1 | 0008-0209 | 4JA1 | LM, LV, LS | ||
| 54 | I8-97805 242-0 | BOLT SPARE TIRE MTG | 3 | 0112-0611 | 4JA1 | GRADE TOURING (RBG) | ||
| 54 | I8-97805 242-0 | BOLT SPARE TIRE MTG | 3 | 0612- | 4JA1-T | GRADE TOURING (RBG) | ||
| 12 | I8-97313 188-0 | BOLT, SPARE TIRE CARRIER | 4 | 0107- | 4JA1 | GRADE TOURING (RBG) M10X25 | ||
| 1 | I8-97943 827-0 | HANGER ASM; TIRE FT | 1 | 0612- | 4JA1-T | LM, LV, LS, BLCK PTH, THA | ||
| 139 | I8-97327 502-1 | STOPPER; SPARE TIRE | 2 | 0210-0611 | 4JA1 | LM, LV, LS | ||
| 145 | I1-09470 001-0 | CLIP; STOPPER | 4 | 0008- | 4JA1 | GRADE NEW SUPER(RBA). GRADE ROYAL (RBB). GRADE LS (RBD) | ||
| 139 | I8-97261 910-0 | STOPPER; SPARE TIRE | 2 | 0008-0112 | 4JA1 | LM, LV | ||
| 1 | I8-97943 827-1 | HANGER ASM; TIRE FT | 1 | 0612- | 4JA1-T | LM, LV, LS, BLCK PTH, THA | ||
| 65 | I8-97170 336-1 | SADDLE SPARE TIRE | 1 | 0612- | 4JA1-T | GRADE TOURING (RBG) | ||
| 139 | I8-97327 502-A | STOPPER; SPARE TIRE | 2 | 0612- | 4JA1-T | LM, LV, LS | ||
| 12 | I8-94279 212-0 | BOLT, SPARE TIRE CARRIER | 4 | 0107- | 4JA1 | GRADE TOURING (RBG) M10X25 | ||
| 1 | I8-97943 827-0 | HANGER ASM; TIRE FT | 1 | 0210-0611 | 4JA1 | LM, LV, LS, BLCK PTH, THA | ||
| 10 | I0-28080 816-0 | BOLT; TIRE HANGER | 3 | 0008- | 4JA1 | GRADE NEW SUPER(RBA) GRADE ROYAL (RBB). GRADE LS(RBD) M8 X 16 FLANGE IND | ||
| 66 | I0-91150 108-0 | NUT SADDLE SPARE TIRE | 1 | 0107- | 4JA1 | GRADE TOURING (RBG) M8 FLANGE IND | ||
| 54 | I8-97803 462-0 | BOLT SPARE TIRE MTG | 3 | 0107-0111 | 4JA1 | GRADE TOURING (RBG) | ||
| 2 | I8-97956 544-A | CARRIER ASM SPARE TIRE | 1 | 0612- | 4JA1-T | GRADE TOURING (RBG), IND | ||
| 2 | I8-97956 544-A | CARRIER ASM SPARE TIRE | 1 | 0107-0611 | 4JA1 | GRADE TOURING (RBG), IND | ||
| 1 | I8-97943 827-1 | HANGER ASM; TIRE FT | 1 | 0210- | 4JA1 | LM, LV, LS, BLCK PTH, THA |
