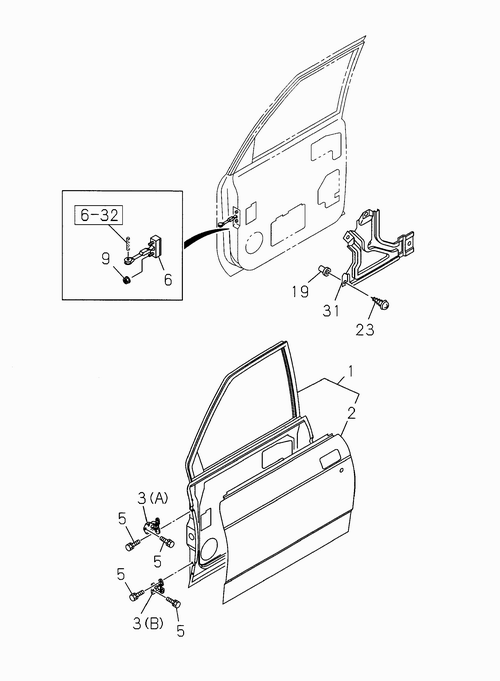

6-30 | FRONT DOOR AND HINGE
PANTHER
PANTHER
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 118 | I8-97959 375-A | EXTENTION FRONT DOOR RH | 1 | 0107- | 4JA1 | IND, TOURING, GRD TOURING | ||
| 2 | I8-97958 043-A | PANEL; FRT DOOR OUTER | 1 | 0107- | 4JA1 | LH, IND, GRADE TOURING | ||
| 5 | I8-94174 559-0 | BOLT; HINGE | 8 | 0008- | 4JA1 | M8X23 FLANGE IND | ||
| 3 | I8-94155 315-2 | HINGE FRONT DOOR RH | 1 | 0008- | 4JA1 | (B), LOWER | ||
| 1 | I8-97959 829-A | DOOR ASM; FRT, WO/TRIM | 0708- | 4JA1-T | RH, LSUP | |||
| 1 | I8-97958 048-A | DOOR ASM; FRT, WO/TRIM | 1 | 0107- | 4JA1 | RH, IND, GRADE TOURING | ||
| 23 | I0-74110 516-0 | SCREW; DOOR | 4 | 0106- | 4JA1 | M5X16 | ||
| 1 | I8-97955 917-A | DOOR ASM; FRT, WO/TRIM | 0708- | 4JA1-T | LH, SMART, SMARTFF, LV | |||
| 123 | I8-97959 967-1 | SPACER ASM EXT DOOR LH | 1 | 0107- | 4JA1 | (B), OVER FENDER | ||
| 2 | I8-97955 918-A | PANEL; FRT DOOR OUTER | 1 | 0008- | 4JA1 | RH, IND | ||
| 123 | I8-97959 966-0 | SPACER ASM EXT DOOR RH | 1 | 0107- | 4JA1 | (B), OVER FENDER | ||
| 23 | I0-74160 520-0 | SCREW; DOOR | 4 | 0106- | 4JA1 | M5X16 | ||
| 19 | I8-94441 539-0 | GROMMET; SCREW, DOOR STP | 1 | 0106- | 4JA1 | D=7.9 X 7.9 L=20 M5 | ||
| 119 | I8-97105 922-0 | CLIP, EXTENTION | 2 | 0107- | 4JA1 | (A) | ||
| 1 | I8-97955 916-A | DOOR ASM; FRT, WO/TRIM | 1 | 0008- | 4JA1 | RH, IND | ||
| 1 | I8-97959 825-A | DOOR ASM; FRT, WO/TRIM | 0612-0611 | 4JA1-T | RH, LVUP, TOUR, GTOUR | |||
| 1 | I8-97959 826-A | DOOR ASM; FRT, WO/TRIM | 0708- | 4JA1-T | LH, LV UP | |||
| 123 | I8-97959 963-0 | SPACER ASM EXT DOOR | 10 | 0107- | 4JA1 | (A), OVER FENDER | ||
| 1 | I8-97959 836-A | DOOR ASM; FRT, WO/TRIM | 0708- | 4JA1-T | LH, TOUR, GTOUR | |||
| 3 | I8-94230 393-4 | HINGE REAR DOOR RH | 1 | 0008- | 4JA1 | (A), UPPER | ||
| 1 | I8-97955 917-A | DOOR ASM; FRT, WO/TRIM | 0612-0611 | 4JA1-T | LH, SMART, SMARTFF, LV, LVFF, LSUP | |||
| 2 | I8-97958 042-A | PANEL; FRT DOOR OUTER | 1 | 0107- | 4JA1 | RH, IND, GRADE TOURING | ||
| 9 | I8-98049 362-0 | NUT; CHECK ARM | 4 | 0008- | 4JA1 | M6 FLANGE | ||
| 124 | I8-97307 379-1 | FINISHER; EXT FRT DOOR | 2 | 0107- | 4JA1 | OVER FENDER, IND | ||
| 9 | I5-09440 004-0 | NUT; CHECK ARM | 4 | 0008- | 4JA1 | M6 FLANGE | ||
| 123 | I8-97959 967-0 | SPACER ASM EXT DOOR LH | 1 | 0107- | 4JA1 | (B), OVER FENDER | ||
| 31 | I8-97959 837-A | REINFORCEMENT; FRT DOOR | 1 | 0106- | 4JA1 | IND | ||
| 3 | I8-94155 314-2 | HINGE FRONT DOOR LH | 1 | 0008- | 4JA1 | (B), LOWER | ||
| 1 | I8-97958 049-A | DOOR ASM; FRT, WO/TRIM | 1 | 0107- | 4JA1 | LH, IND, GRADE TOURING | ||
| 2 | I8-97955 919-A | PANEL; FRT DOOR OUTER | 1 | 0008- | 4JA1 | LH, IND | ||
| 1 | I8-97959 830-A | DOOR ASM; FRT, WO/TRIM | 0708- | 4JA1-T | LH, LSUP | |||
| 1 | I8-97959 835-A | DOOR ASM; FRT, WO/TRIM | 0708- | 4JA1-T | RH, TOUR, GTOUR | |||
| 1 | I8-97955 917-A | DOOR ASM; FRT, WO/TRIM | 1 | 0008- | 4JA1 | LH, IND | ||
| 6 | I8-94358 619-1 | ARM; CHECK, FRT DOOR | 2 | 0008- | 4JA1 | |||
| 3 | I8-94230 392-4 | HINGE REAR DOOR LH | 1 | 0008- | 4JA1 | (A), UPPER | ||
| 6 | I8-94358 619-0 | ARM; CHECK, FRT DOOR | 2 | 0008- | 4JA1 | |||
| 123 | I8-97959 966-1 | SPACER ASM EXT DOOR RH | 1 | 0107- | 4JA1 | (B), OVER FENDER | ||
| 119 | I8-97117 942-0 | CLIP, EXTENTION | 22 | 0107- | 4JA1 | (B) | ||
| 123 | I8-97959 963-1 | SPACER ASM EXT DOOR | 10 | 0107- | 4JA1 | (A), OVER FENDER | ||
| 1 | I8-97959 825-A | DOOR ASM; FRT, WO/TRIM | 0708- | 4JA1-T | RH, LV UP | |||
| 1 | I8-97959 826-A | DOOR ASM; FRT, WO/TRIM | 0612-0611 | 4JA1-T | LH, LVUP, TOUR, GTOUR | |||
| 118 | I8-97959 376-A | EXTENTION FRONT DOOR LH | 1 | 0107- | 4JA1 | IND, TOURING, GRD TOURING |
