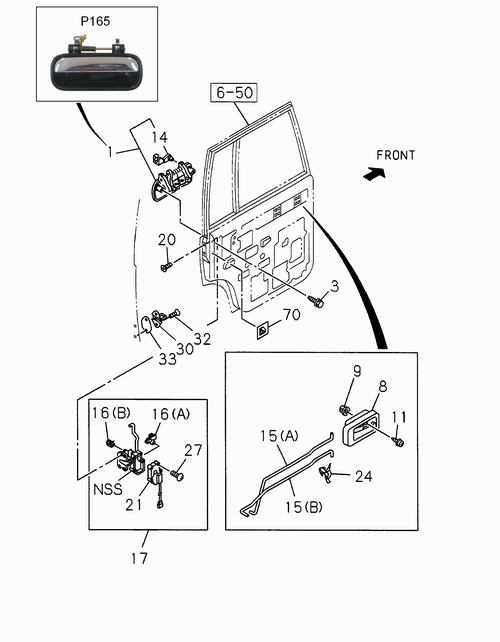

6-52 | REAR DOOR LOCK AND HANDLE
PANTHER
PANTHER
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 21 | I8-97251 148-1 | ACTUATOR; RR DOOR LOCK | 1 | 0008-0611 | 4JA1 | RH AUTO DOOR LOCK<AU4> | ||
| 15 | I8-97248 084-0 | LINK; RR DOOR LOCK | 1 | 0612- | 4JA1-T | LH (A), WAGON LONG | ||
| 9 | I8-94152 494-0 | GROMMET; SCREW, INSIDE HANDLE | 2 | 0008- | 4JA1 | IND | ||
| 16 | I8-97264 614-0 | CLIP; DOOR LOCK LINK | 1 | 0008- | 4JA1 | LH (A) | ||
| 15 | I8-97248 083-0 | LINK; RR DOOR LOCK | 1 | 0008-0611 | 4JA1 | RH (A), WAGON LONG | ||
| 20 | I8-97113 761-0 | SCREW; DOOR LOCK | 6 | 0008- | 4JA1 | M6X16 OVBAL-HD IND | ||
| 27 | I8-97264 615-0 | SCREW; RR DOOR LOCK | 4 | 0008- | 4JA1 | AUTO DOOR LOCK<AU4> | ||
| 15 | I8-97248 083-0 | LINK; RR DOOR LOCK | 1 | 0612- | 4JA1-T | RH (A), WAGON LONG | ||
| 1 | I7-26502 002-A | HANDLE ASM CHROME | 1 | 0409- | 4JA1 | P165, LH, IND HI GRADE UP, G.TOUR, BP | ||
| 1 | I8-97072 484-A | HANDLE; OUTSIDE, FR DOOR | 1 | 0612- | 4JA1-T | RH, P160, IND | ||
| 15 | I8-97248 089-1 | LINK; RR DOOR LOCK | 1 | 0008- | 4JA1 | RH (B), WAGON SHORT | ||
| 1 | I7-26502 120-A | HANDLE; OUTSIDE, FR DOOR | 1 | 0409- | 4JA1 | RH, P164/165, IND HI GRADE, TOURING | ||
| 1 | I8-97072 485-A | HANDLE; OUTSIDE, FR DOOR | 1 | 0612- | 4JA1-T | LH, P160, IND | ||
| 15 | I8-97248 087-0 | LINK; RR DOOR LOCK | 1 | 0008-0611 | 4JA1 | RH (B), WAGON LONG | ||
| 15 | I8-97248 088-0 | LINK; RR DOOR LOCK | 1 | 0008-0611 | 4JA1 | LH (B), WAGON LONG | ||
| 15 | I8-97248 084-0 | LINK; RR DOOR LOCK | 1 | 0008-0611 | 4JA1 | LH (A), WAGON LONG | ||
| 11 | I8-94152 495-0 | SCREW; INSIDE HANDLE | 2 | 0008- | 4JA1 | M5X14 IND | ||
| 70 | I8-97287 966-1 | SEAL; LOCK CHILD LEVER | 1 | 0008- | 4JA1 | RH | ||
| 21 | I8-97251 149-1 | ACTUATOR; RR DOOR LOCK | 1 | 0612- | 4JA1-T | LH AUTO DOOR LOCK<AU4> | ||
| 20 | I8-94172 523-0 | SCREW; DOOR LOCK | 6 | 0008- | 4JA1 | M6X16 OVBAL-HD IND | ||
| 17 | I8-97248 072-1 | LOCK; DOOR, RR DOOR LH | 1 | 0612- | 4JA1-T | EXC.AUTO DOOR LOCK<AU4> | ||
| 15 | I8-97248 090-1 | LINK; RR DOOR LOCK | 1 | 0008- | 4JA1 | LH (B), WAGON SHORT | ||
| 21 | I8-97251 148-1 | ACTUATOR; RR DOOR LOCK | 1 | 0612- | 4JA1-T | RH AUTO DOOR LOCK<AU4> | ||
| 32 | I9-03097 820-0 | SCREW; DOOR STRIKER | 4 | 0008- | 4JA1 | M8X20 | ||
| 15 | I8-97248 086-1 | LINK; RR DOOR LOCK | 1 | 0008- | 4JA1 | LH (A), WAGON SHORT | ||
| 70 | I8-97287 967-1 | SEAL; LOCK CHILD LEVER | 1 | 0008- | 4JA1 | LH | ||
| 17 | I8-97248 071-1 | LOCK; DOOR, RR DOOR RH | 1 | 0008-0611 | 4JA1 | EXC.AUTO DOOR LOCK<AU4> | ||
| 8 | I8-97398 366-0 | HANDLE; INSIDE, FRT DOOR | 1 | 0612- | 4JA1-T | LH BLACK | ||
| 17 | I8-97248 071-1 | LOCK; DOOR, RR DOOR RH | 1 | 0612- | 4JA1-T | EXC.AUTO DOOR LOCK<AU4> | ||
| 17 | I8-97248 073-2 | LOCK; DOOR, RR DOOR RH | 1 | 0612- | 4JA1-T | AUTO DOOR LOCK<AU4> | ||
| 14 | I8-97037 508-A | HOLDER; DOOR LOCK ROD | 1 | 0008- | 4JA1 | RH, WHITE, IND | ||
| 17 | I8-97248 074-2 | LOCK; DOOR, RR DOOR LH | 1 | 0008-0611 | 4JA1 | AUTO DOOR LOCK<AU4> | ||
| 17 | I8-97248 074-2 | LOCK; DOOR, RR DOOR LH | 1 | 0612- | 4JA1-T | AUTO DOOR LOCK<AU4> | ||
| 21 | I8-97251 149-1 | ACTUATOR; RR DOOR LOCK | 1 | 0008-0611 | 4JA1 | LH AUTO DOOR LOCK<AU4> | ||
| 3 | I8-98048 996-0 | BOLT; DOOR OUTSIDE HANDLE | 4 | 0008- | 4JA1 | M6X8 IND | ||
| 30 | I8-94115 959-0 | STRIKER; RR DOOR | 2 | 0008- | 4JA1 | |||
| 15 | I8-97248 088-0 | LINK; RR DOOR LOCK | 1 | 0612- | 4JA1-T | LH (B), WAGON LONG | ||
| 1 | I8-97072 484-A | HANDLE; OUTSIDE, FR DOOR | 1 | 0008-0611 | 4JA1 | RH, P160, IND | ||
| 8 | I8-97196 873-0 | HANDLE; INSIDE, FRT DOOR | 1 | 0008-0209 | 4JA1 | RH GRAY | ||
| 15 | I8-97248 087-0 | LINK; RR DOOR LOCK | 1 | 0612- | 4JA1-T | RH (B), WAGON LONG | ||
| 33 | I8-97023 010-0 | SHEET; ADJ, RR DOOR STRIKER | AR | 0008- | 4JA1 | IND | ||
| 1 | I7-26502 001-A | HANDLE ASM CHROME | 1 | 0409- | 4JA1 | P165, RH, IND HI GRADE UP, G.TOUR, BP | ||
| 1 | I8-97072 485-A | HANDLE; OUTSIDE, FR DOOR | 1 | 0008-0611 | 4JA1 | LH, P160, IND | ||
| 33 | I8-94239 378-0 | SHEET; ADJ, RR DOOR STRIKER | AR | 0008- | 4JA1 | IND | ||
| 15 | I8-97248 085-1 | LINK; RR DOOR LOCK | 1 | 0008- | 4JA1 | RH (A), WAGON SHORT | ||
| 8 | I8-97196 874-0 | HANDLE; INSIDE, FRT DOOR | 1 | 0008-0209 | 4JA1 | LH GRAY | ||
| 16 | I8-97264 613-0 | CLIP; DOOR LOCK LINK | 1 | 0008- | 4JA1 | RH (A) | ||
| 8 | I8-97394 016-0 | HANDLE; INSIDE, FRT DOOR | 1 | 0210-0611 | 4JA1 | RH GRAY | ||
| 32 | I0-30218 820-0 | SCREW; DOOR STRIKER | 4 | 0008- | 4JA1 | M8X20 | ||
| 8 | I8-97394 017-0 | HANDLE; INSIDE, FRT DOOR | 1 | 0210-0611 | 4JA1 | LH GRAY | ||
| 17 | I8-97248 073-2 | LOCK; DOOR, RR DOOR RH | 1 | 0008-0611 | 4JA1 | AUTO DOOR LOCK<AU4> | ||
| 16 | I8-97264 639-0 | CLIP; DOOR LOCK LINK | 1 | 0008- | 4JA1 | RH (B) | ||
| 17 | I8-97248 072-1 | LOCK; DOOR, RR DOOR LH | 1 | 0008-0611 | 4JA1 | EXC.AUTO DOOR LOCK<AU4> | ||
| 1 | I7-26503 120-A | HANDLE; OUTSIDE, FR DOOR | 1 | 0409- | 4JA1 | LH, P164/165, IND HI GRADE, TOURING | ||
| 16 | I8-97264 640-0 | CLIP; DOOR LOCK LINK | 1 | 0008- | 4JA1 | LH (B) | ||
| 24 | I8-97126 660-0 | ANTIRATTLER; DOOR INSIDE HANDLE | 4 | 0008- | 4JA1 | |||
| 8 | I8-97398 365-0 | HANDLE; INSIDE, FRT DOOR | 1 | 0612- | 4JA1-T | RH BLACK | ||
| 14 | I8-97037 509-A | HOLDER; DOOR LOCK ROD | 1 | 0008- | 4JA1 | LH, BROWN, IND | ||
| 3 | I8-94155 893-0 | BOLT; DOOR OUTSIDE HANDLE | 4 | 0008- | 4JA1 | M6X8 IND |
