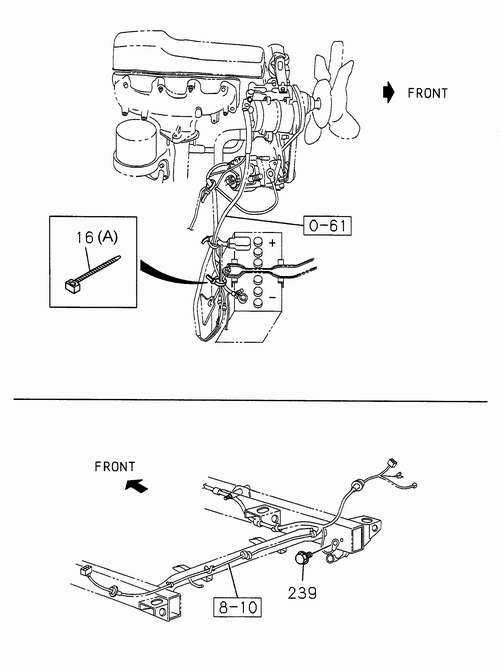

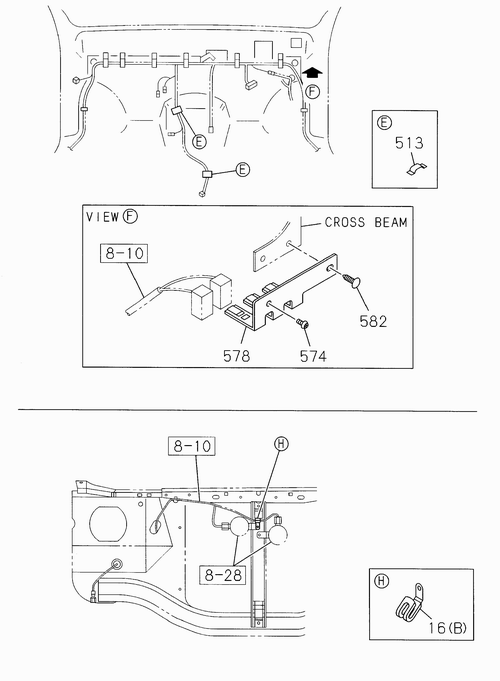

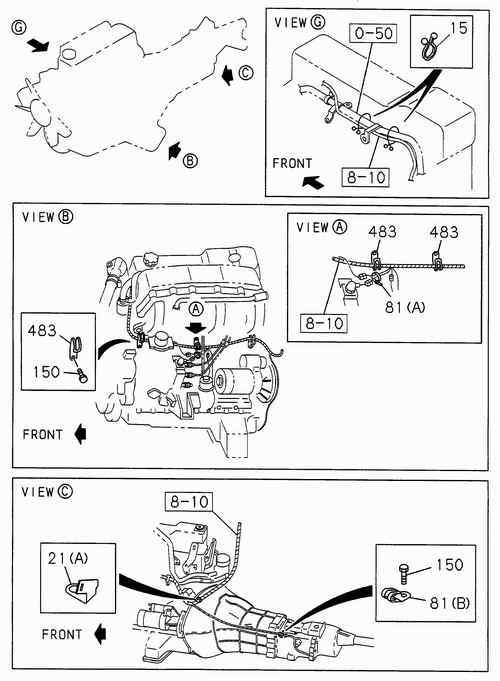

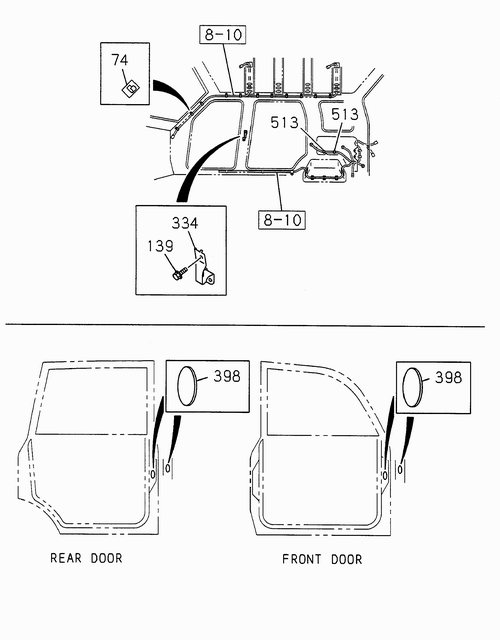

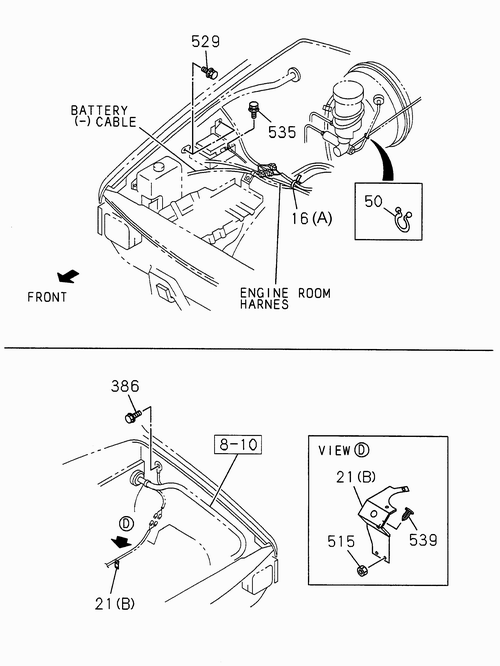

8-15 | FIXING PARTS; WIRING HARNESS
PANTHER
PANTHER
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 139 | I8-94430 946-0 | BOLT; BRACKET | 2 | 0008- | 4JA1 | M6X12 W/WASHER ET SCREW | ||
| 15 | I8-94120 831-0 | CLIP; PURSE LOCK | 2 | 0008- | 4JA1 | GRADE LS (RBD) ID=25, WAGON LONG | ||
| 16 | I5-09707 031-0 | CLIP; HARNESS | 2 | 0008- | 4JA1 | (A), L=140 IND | ||
| 21 | I8-97958 919-A | BRACKET; ENG HARNESS | 1 | 0008- | 4JA1 | M/T MSG 5 SPEED (M75) GRADE LS (RBD) (A) IND, WAGON LONG | ||
| 529 | I8-94412 422-0 | BOLT; RELAY BOX | 2 | 0008- | 4JA1 | M6X20 | ||
| 21 | I8-97957 935-A | BRACKET; ENG HARNESS | 1 | 0008- | 4JA1 | M/T MSG 5 SPEED (M75) (B) IND | ||
| 574 | I8-94120 094-0 | SCREW; FUSE BOX | 1 | 0008- | 4JA1 | M5X12 | ||
| 515 | I0-91150 106-0 | NUT; BRACKET | 2 | 0008- | 4JA1 | A/T AISIN (RMD) M6 FLANGE | ||
| 81 | I5-09700 350-0 | CLIP; HARNESS | 2 | 0008- | 4JA1 | M/T MSG 5 SPEED (M75) (B) ID=12 IND | ||
| 334 | I8-97957 646-A | BRACKET LH | 1 | 0008- | 4JA1 | IND | ||
| 535 | I0-28080 612-0 | BOLT; FUSE BOX | 1 | 0008- | 4JA1 | M6X12 FLANGE | ||
| 398 | I8-94111 754-0 | SEAL; RR DOOR, BODY SIDE | 4 | 0008- | 4JA1 | GRADE NEW SUPER (RBA) GRADE ROYAL (RBB) EXC. HI GRADE (6PQ) OD=50 T=0.08 BLACK | ||
| 21 | I8-97957 937-A | BRACKET; ENG HARNESS | 1 | 0008- | 4JA1 | GRADE NEW SUPER (RBA) GRADE ROYAL (RBB) A/T AISIN (RMD) GRADE LS (RBD) (A) IND | ||
| 16 | I5-09700 350-0 | CLIP; HARNESS | 1 | 0410- | 4JA1 | (B), ID=12 IND | ||
| 150 | I0-28080 812-0 | BOLT; CLIP | 1 | 0008- | 4JA1 | M8X12 FLANGE IND | ||
| 21 | I8-97957 936-A | BRACKET; ENG HARNESS | 1 | 0008- | 4JA1 | A/T AISIN (RMD) (B) IND | ||
| 81 | I5-09707 031-0 | CLIP; HARNESS | 2 | 0008- | 4JA1 | M/T MSG 5 SPEED (M75) (A) L=140 IND | ||
| 539 | I8-94345 178-0 | CLIP; SEAL | 1 | 0008- | 4JA1 | BLACK L=12.5 | ||
| 513 | I8-94137 544-0 | TAPE; SOFT, HARNESS | 7 | 0008-0110 | 4JA1 | |||
| 582 | I8-94345 178-0 | CLIP; FUSE BOX | 1 | 0008- | 4JA1 | BLACK L=12.5 | ||
| 515 | I0-91180 106-0 | NUT; BRACKET | 2 | 0008- | 4JA1 | A/T AISIN (RMD) M6 FLANGE | ||
| 483 | I5-09700 350-0 | CLIP; ENG HARNESS | 4 | 0008- | 4JA1 | ID=12 IND | ||
| 578 | I8-97956 799-A | BRACKET; FUSE BOX | 1 | 0008- | 4JA1 | IND | ||
| 16 | I5-09707 030-0 | CLIP; HARNESS | 1 | 0008- | 4JA1 | (A), L=250 IND | ||
| 239 | I5-09009 032-0 | BOLT; GRAND | 1 | 0008- | 4JA1 | M6X16, PICK UP | ||
| 513 | I8-97304 371-0 | TAPE; SOFT, HARNESS | 7 | 0111-0210 | 4JA1 | |||
| 50 | I1-09709 082-0 | CLIP; PURSE LOCK,-HARNESS | 1 | 0008- | 4JA1 | COLLER WO/HEATER (YL1) ID=8.3 | ||
| 334 | I8-97957 645-A | BRACKET RH | 1 | 0008- | 4JA1 | IND | ||
| 74 | I8-94138 987-0 | CLIP; ROOM LAMP HARNESS | 3 | 0008- | 4JA1 | GRADE NEW SUPER (RBA) | ||
| 74 | I8-94138 987-0 | CLIP; ROOM LAMP HARNESS | 6 | 0008- | 4JA1 | GRADE ROYAL (RBB) GRADE ROYAL (RBB) GRADE LS (RBD) | ||
| 386 | I8-97206 407-0 | BOLT; GRAND HARNESS | 4 | 0008- | 4JA1 | M6X14 W/WASHER | ||
| 386 | I8-97086 822-0 | BOLT; GRAND HARNESS | 4 | 0008- | 4JA1 | M6X14 W/WASHER | ||
| 150 | I0-28080 812-0 | BOLT; CLIP | 2 | 0008- | 4JA1 | M/T MSG 5 SPEED (M75) M8X12 FLANGE IND |
