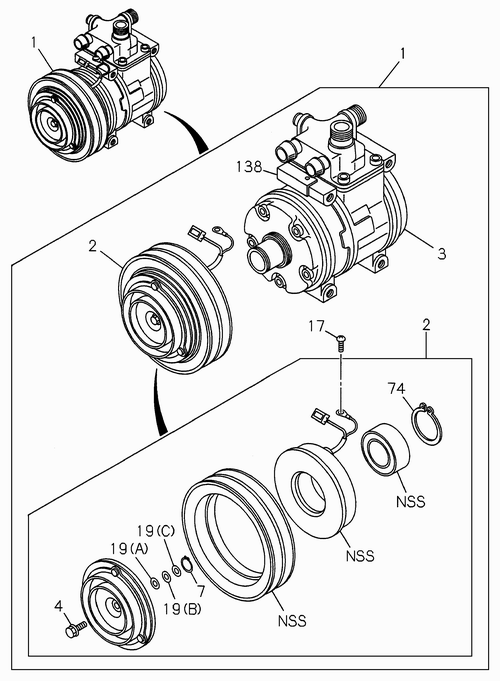

8-71 | COMPRESSOR; AIR CONDITIONING
PANTHER
PANTHER
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 2 | I8-97254 499-0 | CLUTCH; MAGNET, A/C | 1 | 0612- | 4JA1-T | COOLER WO/HEATER (YL1) | ||
| 3 | I8-98048 992-0 | COMPRESSOR ASM; A/C | 1 | 0612- | 4JA1-T | COOLER WO/HEATER (YL1) LS TURBO, TOUR, GTOUR | ||
| 4 | I1-83539 323-0 | BOLT; MAGNET CLUTCH | 1 | 0008- | 4JA1 | COOLER WO/HEATER (YL1) | ||
| 19 | I1-83579 891-0 | WASHER; LK, PULLEY | 1 | 0008- | 4JA1 | (B), COOLER WO/HEATER (YL1) T=0.3 | ||
| 3 | I8-97254 498-A | COMPRESSOR ASM; A/C | 1 | 0008- | 4JA1 | COOLER WO/HEATER (YL1) | ||
| 7 | I1-83579 932-0 | RING; SNAP, PULLEY | 1 | 0008- | 4JA1 | COOLER WO/HEATER (YL1) | ||
| 17 | I5-81129 130-0 | SCREW; WIRE CLIP | 1 | 0008- | 4JA1 | COOLER WO/HEATER (YL1) | ||
| 2 | I8-97254 499-A | CLUTCH; MAGNET, A/C | 1 | 0612- | 4JA1-T | COOLER WO/HEATER (YL1) | ||
| 1 | I8-97956 891-0 | COMPRESSOR ASM; A/C | 1 | 0008-0611 | 4JA1 | COOLER WO/HEATER (YL1) | ||
| 74 | I1-83579 889-0 | RING; SNAP, MAGNET CLU | 1 | 0008- | 4JA1 | COOLER WO/HEATER (YL1) | ||
| 3 | I8-97254 498-0 | COMPRESSOR ASM; A/C | 1 | 0008-0611 | 4JA1 | COOLER WO/HEATER (YL1) | ||
| 1 | I8-97562 627-0 | COMPRESSOR ASM; A/C | 1 | 0612- | 4JA1-T | COOLER WO/HEATER (YL1) LM, SMART, SMART FF, RYL, RYL FF, LV ADV | ||
| 3 | I8-98016 874-0 | COMPRESSOR ASM; A/C | 1 | 0612- | 4JA1-T | COOLER WO/HEATER (YL1) LM, SMART, SMART FF, RYL, RYL FF, LV ADV | ||
| 2 | I8-97254 499-A | CLUTCH; MAGNET, A/C | 1 | 0008- | 4JA1 | COOLER WO/HEATER (YL1) | ||
| 19 | I1-83579 892-0 | WASHER; LK, PULLEY | 1 | 0008- | 4JA1 | (C), COOLER WO/HEATER (YL1) T=0.5 | ||
| 138 | I8-97254 501-0 | BRACKET; COMPRESSOR | 1 | 0008- | 4JA1 | COOLER WO/HEATER (YL1) | ||
| 2 | I8-97254 499-0 | CLUTCH; MAGNET, A/C | 1 | 0008-0611 | 4JA1 | COOLER WO/HEATER (YL1) | ||
| 19 | I1-83579 890-0 | WASHER; LK, PULLEY | 1 | 0008- | 4JA1 | (A), COOLER WO/HEATER (YL1) T=0.1 | ||
| 1 | I8-97562 628-0 | COMPRESSOR ASM; A/C | 1 | 0008- | 4JA1 | COOLER WO/HEATER (YL1) LS TURBO, TOUR, GTOUR |
