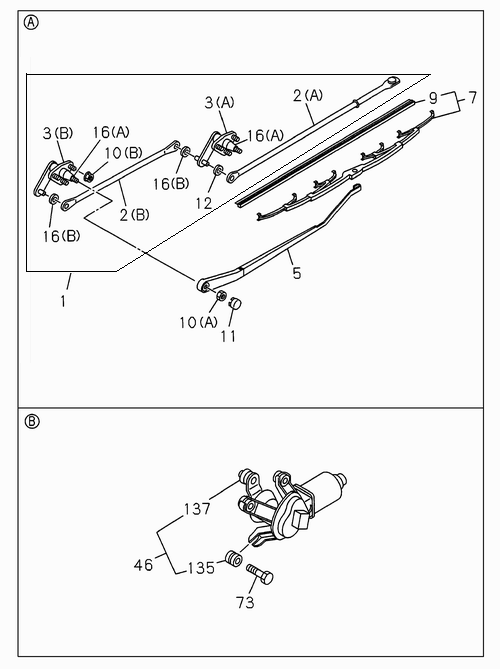

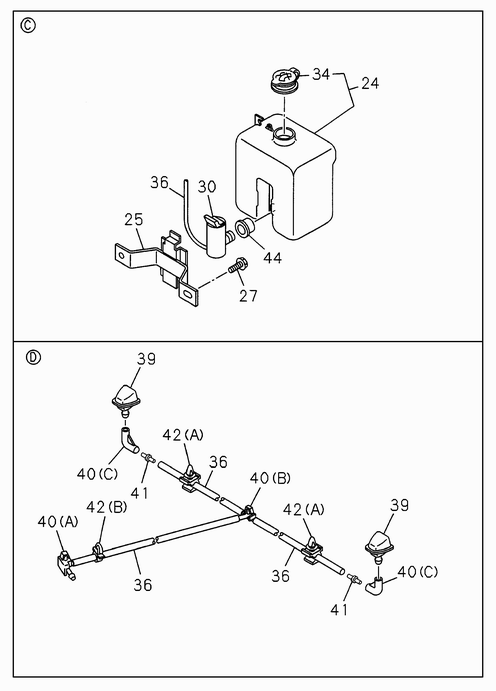

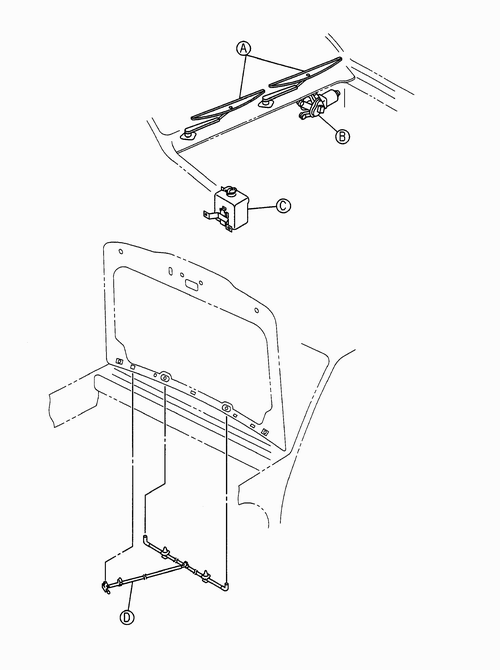

8-80 | WINDSHIELD WIPER AND WASHER
PANTHER
PANTHER
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 44 | I8-97958 547-A | GASKET; MOTOR TO TANK | 1 | 0008- | 4JA1 | IND | ||
| 5 | I8-97562 238-A | ARM; WIPER | 1 | 0306-0611 | 4JA1 | DRIVER, IND | ||
| 73 | I8-98048 997-0 | BOLT | 4 | 0008- | 4JA1 | M6 X 33 W/PL WASHER | ||
| 16 | I8-97264 708-0 | SEAL; BALL JOINT | 2 | 0008- | 4JA1 | (A) | ||
| 7 | I8-97562 240-A | BLADE; WIPER | 1 | 0306- | 4JA1 | DRIVER, IND | ||
| 42 | I8-94206 730-0 | CLIP; WASHER HOSE | 2 | 0008- | 4JA1 | (A) L=8 | ||
| 7 | I8-97192 287-0 | BLADE; WIPER | 1 | 0008-0305 | 4JA1 | PASSENGER | ||
| 27 | I8-94239 622-0 | BOLT; WASHER TANK | 2 | 0008- | 4JA1 | M6X18 | ||
| 5 | I8-97192 270-0 | ARM; WIPER | 1 | 0008-0305 | 4JA1 | PASSENGER | ||
| 46 | I8-97562 234-A | MOTOR ASM; FRONT-WINDSHIELD WIPER | 1 | 0008- | 4JA1 | IND | ||
| 42 | I8-94155 681-0 | CLIP; WASHER HOSE | 2 | 0008- | 4JA1 | (A) L=8 | ||
| 11 | I8-97148 349-0 | COVER; WIPER ARM | 2 | 0008- | 4JA1 | |||
| 2 | I8-97261 516-0 | LINK; FRONT WIPER | 1 | 0612- | 4JA1-T | (B) | ||
| 1 | I8-97562 236-A | LINK ASM; FRONT WIPER | 1 | 0008- | 4JA1 | |||
| 137 | I8-94167 624-A | SEAL; JOINT, WIPER MOTOR | 1 | 0008- | 4JA1 | IND | ||
| 41 | I8-97958 181-A | VALVE; CHECK, WASHER TANK | 2 | 0008- | 4JA1 | IND | ||
| 10 | I8-94223 325-0 | NUT; WIPER ARM TO WIPER PIVOT | 6 | 0008- | 4JA1 | (B) M16 W/CONE WASHER | ||
| 9 | I8-97264 691-0 | RUBBER; FRT WIPER BLADE | 1 | 0008-0305 | 4JA1 | PASSENGER | ||
| 5 | I8-97562 239-A | ARM; WIPER | 1 | 0306-0611 | 4JA1 | PASSENGER, IND | ||
| 30 | I8-97958 183-A | MOTOR ASM; FRT WASHER TANK | 1 | 0008- | 4JA1 | IND | ||
| 39 | I8-97175 433-2 | NOZZLE; WINDSHIELD WASHER | 2 | 0107- | 4JA1 | |||
| 7 | I6-97192 287-0 | BLADE; WIPER | 1 | 0008-0305 | 4JA1 | (IADG) PASSENGER | ||
| 10 | I8-98049 367-0 | NUT; WIPER ARM TO WIPER PIVOT | 2 | 0008- | 4JA1 | (A) M10 FLANGE | ||
| 12 | I8-94167 624-0 | RETAINER; BALL JOINT, FRT WIPER LINK | 1 | 0008- | 4JA1 | |||
| 73 | I8-97164 266-0 | BOLT | 4 | 0008- | 4JA1 | M6 X 33 W/PL WASHER | ||
| 16 | I8-97025 889-0 | SEAL; BALL JOINT | 2 | 0008- | 4JA1 | (B) | ||
| 46 | I8-97192 268-0 | MOTOR ASM; FRONT-WINDSHIELD WIPER | 1 | 0008- | 4JA1 | |||
| 39 | I8-97175 433-1 | NOZZLE; WINDSHIELD WASHER | 2 | 0008-0106 | 4JA1 | |||
| 40 | I8-97958 179-A | JOINT; WASHER HOSE | 1 | 0008- | 4JA1 | (B) IND | ||
| 2 | I8-97261 515-0 | LINK; FRONT WIPER | 1 | 0612- | 4JA1-T | (A) | ||
| 135 | I8-94387 088-A | RUBBER; CUSHION, WIPER MOTOR | 4 | 0008- | 4JA1 | IND | ||
| 34 | I8-97958 185-A | CAP; WASHER TANK | 1 | 0008- | 4JA1 | IND | ||
| 40 | I8-97958 180-A | JOINT; WASHER HOSE | 2 | 0008- | 4JA1 | (C) IND | ||
| 10 | I8-94144 220-0 | NUT; WIPER ARM TO WIPER PIVOT | 2 | 0008- | 4JA1 | (A) M10 FLANGE | ||
| 7 | I8-97562 241-A | BLADE; WIPER | 1 | 0306- | 4JA1 | PASSENGER, IND | ||
| 7 | I8-97254 765-A | BLADE; WIPER | 1 | 0008- | 4JA1 | DRIVER, L=55 cm, IND | ||
| 3 | I8-97261 513-0 | PIVOT ASM; FRONT WIPER | 1 | 0008- | 4JA1 | (A) | ||
| 5 | I8-97562 239-A | ARM; WIPER | 1 | 0612- | 4JA1-T | PASSENGER, IND | ||
| 5 | I8-97192 269-0 | ARM; WIPER | 1 | 0008-0305 | 4JA1 | DRIVER | ||
| 24 | I8-97958 186-A | TANK ASM; WASHER | 1 | 0008- | 4JA1 | IND | ||
| 2 | I8-97261 516-0 | LINK; FRONT WIPER | 1 | 0008-0611 | 4JA1 | (B) | ||
| 36 | I8-97958 549-A | HOSE; WASHER | 2 | 0008- | 4JA1 | IND | ||
| 25 | I8-97958 187-A | BRACKET; WASHER TANK | 1 | 0008- | 4JA1 | IND | ||
| 9 | I8-97372 240-0 | RUBBER; FRT WIPER BLADE | 1 | 0306- | 4JA1 | PASSENGER | ||
| 9 | I8-97142 512-0 | RUBBER; FRT WIPER BLADE | 1 | 0008-0305 | 4JA1 | DRIVER | ||
| 7 | I6-97254 765-0 | BLADE; WIPER | 1 | 0008- | 4JA1 | (IADG) DRIVER, L=55 cm, IND | ||
| 7 | I8-97192 287-A | BLADE; WIPER | 1 | 0008- | 4JA1 | PASSENGER, L=40 cm, IND | ||
| 5 | I8-97562 238-A | ARM; WIPER | 1 | 0612- | 4JA1-T | DRIVER, IND | ||
| 7 | I6-97192 287-0 | WIPER BLADE,TBR541 | 1 | 0908- | 4JA1 | (IADG) PASSENGER, L=40 cm, IND | ||
| 9 | I8-97372 049-0 | RUBBER; FRT WIPER BLADE | 1 | 0306- | 4JA1 | DRIVER | ||
| 42 | I8-94417 625-0 | CLIP; WASHER HOSE | 1 | 0008- | 4JA1 | (B) ID=6 | ||
| 40 | I8-97958 178-A | JOINT; WASHER HOSE | 1 | 0008- | 4JA1 | (A) IND | ||
| 7 | I8-97134 567-0 | BLADE; WIPER | 1 | 0008-0305 | 4JA1 | DRIVER | ||
| 7 | I6-97254 765-0 | WIPER BLADE,TBR541 | 1 | 0908- | 4JA1 | (IADG) NULL | ||
| 3 | I8-97261 514-0 | PIVOT ASM; FRONT WIPER | 1 | 0008- | 4JA1 | (B) | ||
| 2 | I8-97261 515-0 | LINK; FRONT WIPER | 1 | 0008-0611 | 4JA1 | (A) | ||
| 228 | I8-97956 892-A | HOSE ASM; WASHER | 1 | 0210- | 4JA1 | IND | ||
| 12 | I1-83318 116-0 | RETAINER; BALL JOINT, FRT WIPER LINK | 1 | 0008- | 4JA1 |
