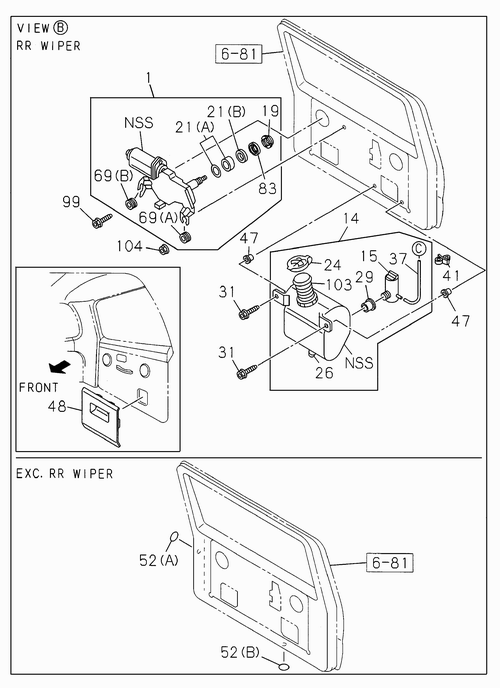

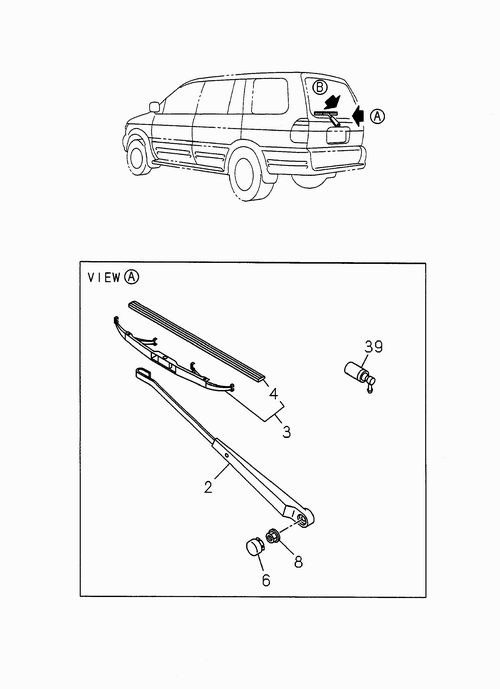

8-85 | REAR WIPER AND WASHER
PANTHER
PANTHER
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 8 | I9-09844 190-0 | NUT; RR WIPER ARM TO-WIPER MOTOR | 1 | 0008- | 4JA1 | RR WIPER<C25> M8 FLANGE | ||
| 21 | I8-97260 183-A | SEAL; PIVOT, REAR WIPER | 1 | 0008- | 4JA1 | RR WIPER<C25> (B) IND | ||
| 69 | I8-97264 710-A | RUBBER; CUSHION, REAR, WIPER | 1 | 0008- | 4JA1 | RR WIPER<C25> (B) IND | ||
| 69 | I8-97264 709-A | RUBBER; CUSHION, REAR, WIPER | 1 | 0008- | 4JA1 | RR WIPER<C25> (A) IND | ||
| 48 | I8-97394 010-1 | LID; RR WASHER TANK | 1 | 0210- | 4JA1 | RR WIPER<C25>, BLACK | ||
| 52 | I8-97957 855-A | PLUG; RR WASHER | 1 | 0008- | 4JA1 | EXC. RR WIPER<C25> IND | ||
| 2 | I7-39509 109-A | ARM ASM; REAR WIPER | 1 | 0008- | 4JA1 | RR WIPER<C25> | ||
| 15 | I8-97958 183-0 | MOTOR ASM; RR, WASHER TANK | 1 | 0008- | 4JA1 | RR WIPER<C25> IND | ||
| 37 | I8-97958 549-A | HOSE; WASHER TANK, RR | 1 | 0008- | 4JA1 | RR WIPER<C25> IND | ||
| 2 | I8-97175 418-0 | ARM ASM; REAR WIPER | 1 | 0008- | 4JA1 | RR WIPER<C25> | ||
| 19 | I8-97260 188-A | NUT; LOCK, PIVOT | 1 | 0008- | 4JA1 | RR WIPER<C25> IND | ||
| 6 | I8-94460 965-0 | CLIP; COVER | 1 | 0008- | 4JA1 | RR WIPER<C25> | ||
| 48 | I8-97198 127-1 | LID; RR WASHER TANK | 1 | 0008-0209 | 4JA1 | RR WIPER<C25> . GRAY | ||
| 103 | I8-97958 621-A | NECK; RR WASHER TANK | 1 | 0008- | 4JA1 | RR WIPER<C25> IND | ||
| 3 | I7-39509 139-A | BLADE ASM; REAR WIPER | 1 | 0008- | 4JA1 | RR WIPER<C25> | ||
| 1 | I8-97306 684-0 | MOTOR ASM; RR WIPER | 1 | 0107-0206 | 4JA1 | RR WIPER<C25>, IND | ||
| 1 | I8-97322 389-0 | MOTOR ASM; RR WIPER | 1 | 0207-0209 | 4JA1 | RR WIPER<C25>, IND | ||
| 3 | I6-97175 464-0 | WIPER BLADE RR,TBR541 | 1 | 0908- | 4JA1 | (IADG) RR WIPER | ||
| 99 | I8-98057 965-0 | BOLT; WIPER MOTOR | 1 | 0008- | 4JA1 | RR WIPER<C25> M6X10 W/PL WASHER | ||
| 8 | I8-98053 188-0 | NUT; RR WIPER ARM TO-WIPER MOTOR | 1 | 0008- | 4JA1 | RR WIPER<C25> M8 FLANGE | ||
| 3 | I8-97175 464-0 | BLADE ASM; REAR WIPER | 1 | 0008- | 4JA1 | RR WIPER<C25> | ||
| 47 | I8-97023 281-0 | NUT; HANGER, RR WIPER | 2 | 0008- | 4JA1 | RR WIPER<C25> M6 RUBBER NUT | ||
| 3 | I6-97175 464-0 | BLADE; WIPER REAR | 1 | 0008- | 4JA1 | (IADG) RR WIPER<C25> | ||
| 29 | I8-97958 547-A | GASKET; TANK TO MOTOR | 1 | 0008- | 4JA1 | RR WIPER<C25> IND | ||
| 24 | I8-97958 184-A | CAP; WASHER TANK, REAR | 1 | 0008- | 4JA1 | RR WIPER<C25> IND | ||
| 83 | I8-97260 184-A | COVER; LOCK NUT | 1 | 0008- | 4JA1 | RR WIPER<C25> IND | ||
| 1 | I8-97322 718-0 | MOTOR ASM; RR WIPER | 1 | 0210- | RR WIPER<C25> | |||
| 41 | I8-94417 625-0 | CLIP; RR WASHER TANK HOSE | 5 | 0008- | 4JA1 | RR WIPER<C25> ID=6 | ||
| 104 | I0-91150 106-0 | NUT; WIPER MOTOR | 1 | 0008- | 4JA1 | RR WIPER<C25> M6 FLANGE | ||
| 31 | I9-03900 625-0 | SCREW; RR WASHER TANK TO BODY | 2 | 0008- | 4JA1 | RR WIPER<C25> M6X25 | ||
| 99 | I8-94416 136-0 | BOLT; WIPER MOTOR | 1 | 0008- | 4JA1 | RR WIPER<C25> M6X10 W/PL WASHER | ||
| 4 | I8-97264 873-0 | RUBBER; BLADE, RR WIPER | 1 | 0008- | 4JA1 | RR WIPER<C25> | ||
| 21 | I8-97260 182-A | SEAL; PIVOT, REAR WIPER | 1 | 0008- | 4JA1 | RR WIPER<C25> (A) IND | ||
| 104 | I0-91180 106-0 | NUT; WIPER MOTOR | 1 | 0008- | 4JA1 | RR WIPER<C25> M6 FLANGE | ||
| 14 | I8-97958 182-A | TANK ASM; WASHER, REAR WIPER | 1 | 0008- | 4JA1 | RR WIPER<C25> IND | ||
| 1 | I8-97175 434-1 | MOTOR ASM; RR WIPER | 1 | 0008-0106 | 4JA1 | RR WIPER<C25> | ||
| 48 | I8-97412 249-1 | LID; RR WASHER TANK | 1 | 0708- | 4JA1 | RR WIPER<C25>, BEIGE | ||
| 39 | I8-97175 419-1 | NOZZLE; RR WINDSHIELD, WASHER | 1 | 0008- | 4JA1 | RR WIPER<C25> | ||
| 26 | I8-97958 548-A | RUBBER; CUSHION, RR WASHER TANK | 1 | 0008- | 4JA1 | RR WIPER<C25> IND |
