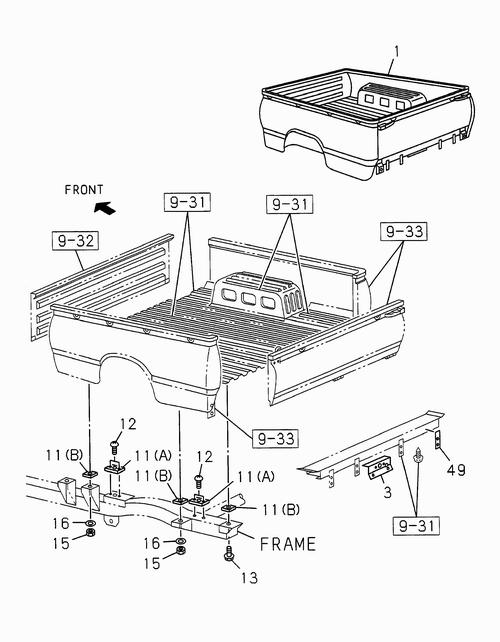

9-30 | REAR BODY ASM AND MOUNTING
PANTHER
PANTHER
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 11 | I8-94331 737-A | GASKET; RR BODY MTG | 6 | 0008- | 4JA1 | (B) IND | ||
| 3 | I8-94367 177-1 | BRACKET; LICENSE PLATE LAMP | 1 | 0008- | 4JA1 | IND | ||
| 13 | I8-97169 423-0 | BOLT; RR BODY MOUNTING | 2 | 0008- | 4JA1 | M12X35 W/PL WASHER | ||
| 1 | I8-94367 143-A | BODY ASM; REAR | 1 | 0008- | 4JA1 | IND | ||
| 16 | I9-09164 612-0 | WASHER; FRAME END, RR BODY | 6 | 0008- | 4JA1 | ID=12 | ||
| 13 | I8-94483 977-0 | BOLT; RR BODY MOUNTING | 2 | 0008- | 4JA1 | M12X35 W/PL WASHER | ||
| 49 | I8-94367 173-A | BRACKET; RR COMB LAMP | 4 | 0008- | 4JA1 | IND | ||
| 49 | I8-94367 173-0 | BRACKET; RR COMB LAMP | 4 | 0008- | 4JA1 | IND | ||
| 16 | I0-91614 712-0 | WASHER; FRAME END, RR BODY | 6 | 0008- | 4JA1 | ID=12 | ||
| 3 | I8-94367 177-A | BRACKET; LICENSE PLATE LAMP | 1 | 0008- | 4JA1 | IND | ||
| 11 | I8-94331 738-A | GASKET; RR BODY MTG | 8 | 0008- | 4JA1 | (A) IND | ||
| 12 | I0-74100 614-0 | SCREW; RR BODY MTG-GASKET | 12 | 0008- | 4JA1 | |||
| 15 | I8-97028 764-0 | NUT; RR BODY MOUNTING | 6 | 0008- | 4JA1 | M12 |
