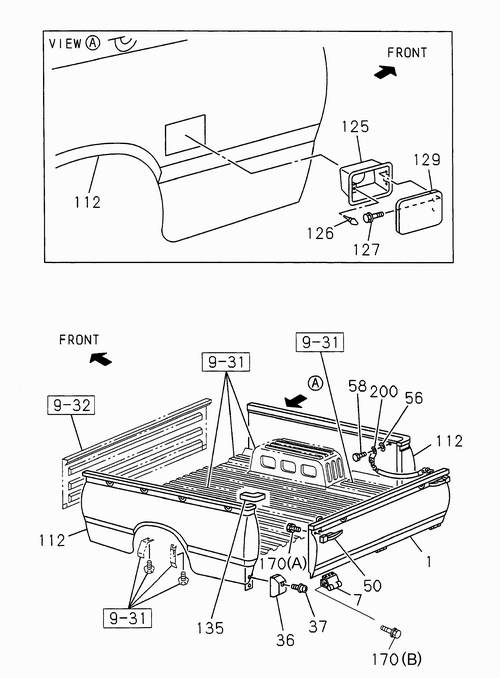

9-33 | REAR BODY; GATE AND SIDE GUARD
PANTHER
PANTHER
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 200 | I8-94367 702-0 | CHAIN; REAR GATE | 2 | 0008- | 4JA1 | IND | ||
| 7 | I8-94367 231-A | HINGE ASM; RR GATE | 3 | 0008- | 4JA1 | IND | ||
| 127 | I8-94279 201-0 | BOLT; FUEL FILLER LID | 2 | 0008- | 4JA1 | M6X12 W/LK & PL WASHER | ||
| 37 | I9-03900 620-0 | SCREW | 2 | 0008- | 4JA1 | M6X20 | ||
| 170 | I8-94419 345-0 | BOLT; TAIL GATE LOCK | 6 | 0008- | 4JA1 | (B) M8X18 | ||
| 135 | I8-94367 216-1 | STRIKER; TAIL GATE, RR-BODY | 2 | 0008- | 4JA1 | IND | ||
| 112 | I8-94367 185-A | PANEL; SIDE GATE | 1 | 0008- | 4JA1 | LH IND | ||
| 50 | I8-94385 443-A | LOCK ASM; TAIL GATE, RR BODY | 2 | 0008- | 4JA1 | IND | ||
| 135 | I8-94367 216-A | STRIKER; TAIL GATE, RR-BODY | 2 | 0008- | 4JA1 | IND | ||
| 37 | I0-36210 620-0 | SCREW | 2 | 0008- | 4JA1 | M6X20 | ||
| 127 | I0-50140 612-0 | BOLT; FUEL FILLER LID | 2 | 0008- | 4JA1 | M6X12 W/LK & PL WASHER | ||
| 125 | I8-94380 515-A | RECESS; FUEL FILLER NECK RR BODY | 1 | 0008- | 4JA1 | RH IND | ||
| 56 | I9-09160 708-0 | WASHER; PL, CHAIN TO RR BODY | 2 | 0008- | 4JA1 | ID=8 OD=22 | ||
| 7 | I8-94367 231-0 | HINGE ASM; RR GATE | 3 | 0008- | 4JA1 | IND | ||
| 56 | I0-91610 708-0 | WASHER; PL, CHAIN TO RR BODY | 2 | 0008- | 4JA1 | ID=8 OD=22 | ||
| 129 | I8-94380 518-A | LID ASM; FUEL FILLER, RR BODY | 1 | 0008- | 4JA1 | RH IND | ||
| 36 | I8-94367 697-A | RUBBER; STOPPER, RR GATE | 2 | 0008- | 4JA1 | IND | ||
| 1 | I8-94367 226-A | GATE ASM; RR | 1 | 0008- | 4JA1 | IND | ||
| 58 | I5-09000 065-2 | BOLT; CHAIN TO RR BODY | 2 | 0008- | 4JA1 | |||
| 112 | I8-94367 184-A | PANEL; SIDE GATE | 1 | 0008- | 4JA1 | RH IND | ||
| 170 | I0-28280 618-0 | BOLT; TAIL GATE LOCK | 4 | 0008- | 4JA1 | (A) M6X18 | ||
| 126 | I9-09956 829-A | RUBBER; STOPPER, FUEL FILLER LID | 1 | 0008- | 4JA1 | IND | ||
| 200 | I8-94367 702-A | CHAIN; REAR GATE | 2 | 0008- | 4JA1 | IND |
