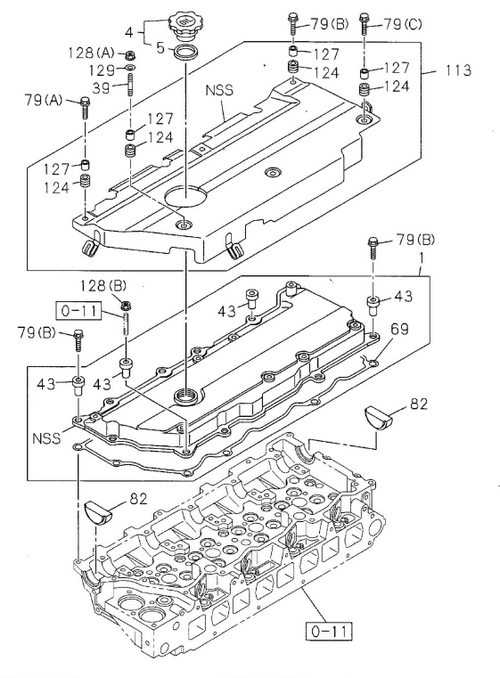

0-10 | CYLINDER HEAD COVER
GIGA
GIGA FRR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 79 | I1-09044 072-1 | BOLT; COVER | 7 | 1103- | A | (B) M8X65 FLANGE | ||
| 1 | I8-97846 577-0 | COVER; CYL HD | 1 | 2201- | A | |||
| 79 | I8-97127 607-0 | BOLT; COVER | 4 | 1103- | A | (C) M6X20 | ||
| 5 | I8-94123 623-1 | GASKET; OIL FILLER | 1 | 1103- | A | ID=32 OD=40 | ||
| 69 | I8-97331 359-1 | GASKET; HD TO COVER | 1 | 1103- | A | |||
| 79 | I0-28650 835-0 | BOLT; COVER | 2 | 1103- | A | (A) M8X35 FLANGE | ||
| 124 | I8-97226 908-0 | RUBBER; MTG, COVER | 6 | 1103- | A | |||
| 1 | I8-97331 361-2 | COVER; CYL HD | 1 | 1103-2112 | A | |||
| 129 | I0-91610 706-0 | WASHER; COVER, CYL HEAD COVER | 1 | 1103- | A | ID=6.4 DD=18 | ||
| 127 | I8-97092 314-0 | RETAINER; COVER | 6 | 1103- | A | |||
| 128 | I0-91180 108-0 | NUT; COVER, CYL HEAD COVER | 2 | 1103- | A | (B) M8 FLANGE | ||
| 4 | I8-94133 207-5 | CAP; OIL FILLER | 1 | 1103- | A | |||
| 128 | I0-91180 106-0 | NUT; COVER, CYL HEAD COVER | 2 | 1103- | A | (A) M6 FLANGE | ||
| 113 | I8-97354 803-3 | COVER; CYL HEAD COVER | 1 | 1103- | A | |||
| 39 | I0-41010 625-0 | STUD; COVER, HD | 2 | 1103- | A | M6X25 L=34 | ||
| 82 | I8-98163 813-0 | PLUG; CYL HD COVER | 2 | 1103- | A | |||
| 43 | I8-94395 684-0 | RUBBER; MTG, HD COVER, OUTER | 11 | 1103- | A | OD=22 |
