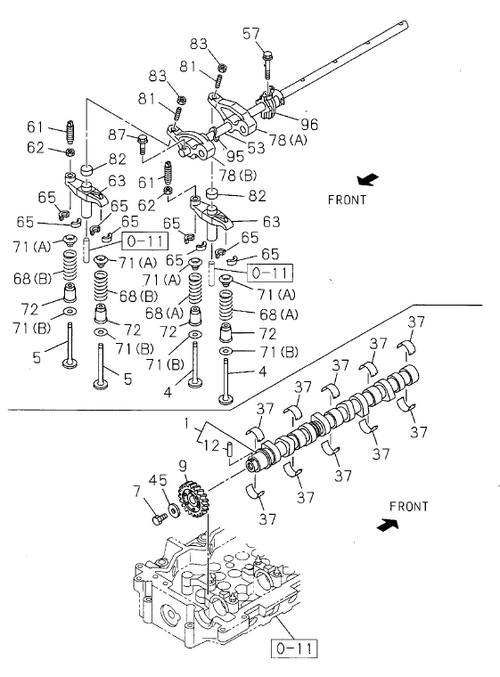

0-14 | CAMSHAFT AND VALVE
GIGA
GIGA FRR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 68 | I8-97210 682-0 | SPRING; VLV | 8 | 1103- | A | (B) EXHAUST MARK RED | ||
| 101 | I0-28060 816-0 | BOLT; THRUST COLLAR | 3 | 1103- | A | (B) M8X16 FLANGE | ||
| 107 | I8-97186 398-1 | SHAFT; IDLE GEAR | 1 | 1103- | A | ( D) | ||
| 96 | I8-97334 414-0 | BRACKET; ROCKER ARM SHAFT | 3 | 1103- | A | |||
| 267 | I8-98019 024-0 | SENSOR; CAM ANGLE . | 1 | 1103- | A | |||
| 81 | I8-94395 024-0 | SCREW; ADJ, ROCKER ARM | 8 | 1103- | A | 1110 L=32 | ||
| 269 | I0-28050 612-0 | BOLT; SENSOR | 1 | 1103- | A | M6X12 FLANGE | ||
| 63 | I8-94392 002-3 | BRIDGE | 8 | 1103- | A | |||
| 112 | I8-97120 005-1 | GEAR; IDLE | 1 | 1103- | A | (C) Z=34 | ||
| 107 | I8-97350 021-A | SHAFT; IDLE GEAR | 1 | 1103- | A | (A) | ||
| 57 | I8-94393 131-0 | BOLT; ROCKER ARM BRKT | 3 | 1103- | A | M10X62 FLANGE | ||
| 206 | I8-97606 770-0 | BUSHING; IDLE GEAR | 1 | 1103- | A | (C) AFTER PRESS FITTING, MACHINE IT. | ||
| 350 | I8-97369 404-0 | GASKET; SENSOR, CAM ANGLE | 1 | 1103- | A | |||
| 112 | I8-97606 929-0 | GEAR; IDLE | 1 | 1103- | A | (D) Z=41 | ||
| 78 | I8-97306 424-3 | ARM; ROCKER | 4 | 1103- | A | (B) EXHAUST | ||
| 53 | I8-97389 921-0 | SHAFT; ROCKER ARM | 1 | 1103- | A | |||
| 224 | I0-28050 816-0 | BOLT; COVER | 2 | 1103- | A | M8X16 FLANGE | ||
| 65 | I5-12565 004-0 | COLLAR; SPLIT | 1 | 1103- | A | |||
| 101 | I8-94372 221-1 | BOLT; THRUST COLLAR | 1 | 1103- | A | (A) M14X36.5 | ||
| 206 | I8-97606 768-0 | BUSHING; IDLE GEAR | 1 | 1103- | A | (B) AFTER PRESS FITTING, MACHINE IT. | ||
| 82 | I8-94396 015-2 | CAP; ROCKER SHAFT . | 8 | 1103- | A | |||
| 101 | I9-92361 425-0 | BOLT; THRUST COLLAR | 1 | 1103- | A | (C) M14X25 | ||
| 62 | I9-09844 574-0 | NUT; ADJ SCREW LK BRIDGE | 8 | 1103- | A | M8 FLANGE | ||
| 4 | I8-94395 882-2 | VALVE; INL . | 8 | 1103- | A | |||
| 105 | I0-16956 460-0 | BOLT; IDLE GEAR SHAFT | 1 | 1103- | A | M14X60 | ||
| 107 | I8-94334 682-1 | SHAFT; IDLE GEAR | 1 | 1103- | A | (C) | ||
| 206 | I1-12528 028-0 | BUSHING; IDLE GEAR | 1 | 1103- | A | (A) AFTER PRESS FITTING, MACHINE IT | ||
| 5 | I8-97209 876-4 | VALVE; EXH | 8 | 1103- | A | |||
| 68 | I8-97352 888-0 | SPRING; VLV | 8 | 1103- | A | (A) INLET MARK BLUE | ||
| 37 | I8-97386 189-0 | METAL; CM/SHF | 10 | 1103- | A | B=16 | ||
| 102 | I8-97096 826-A | COVER; IDLE GEAR | 1 | 1103- | A | (B) OD=51 | ||
| 9 | I8-98018 935-3 | GEAR; CM/SHF | 1 | 1103- | A | Z=35 | ||
| 1 | I8-97262 166-0 | CAMSHAFT . | 1 | 1103- | A | |||
| 12 | I8-94399 487-0 | KEY; CAM GEAR SET | 2 | 1103- | A | |||
| 87 | I0-28050 840-0 | BOLT; ROCKER SHAFT | 2 | 1103- | A | M13X40 FLANGE | ||
| 223 | I1-09623 423-0 | GASKET; COVER, IDLE GEAR | 1 | 1103- | A | ID =105.6 | ||
| 7 | I8-94396 439-0 | BOLT; CM/SHF GEAR | 1 | 1103- | A | M4X40 | ||
| 112 | I8-97600 586-1 | GEAR; IDLE | 1 | 1103- | A | (B) Z=72-60-30 | ||
| 107 | I8-94334 682-1 | SHAFT; IDLE GEAR | 1 | 1103- | A | (C) | ||
| 107 | I8-98060 780-0 | SHAFT; IDLE GEAR | 1 | 1103- | A | (B) | ||
| 72 | I8-97376 720-0 | SEAL; VLV GUIDE | 16 | 1103- | A | |||
| 112 | I8-97606 767-0 | GEAR; IDLE | 1 | 1103- | A | (A) Z=61 | ||
| 71 | I8-94391 468-0 | SEAT; SPR | 16 | 1103- | A | (B) LOWER ID=14.3 T=1.0 | ||
| 117 | I8-97113 167-0 | BOLT; FLANGE | 1 | 1103- | A | M14X65 FLANGE | ||
| 111 | I8-97209 728-A | COLLAR; THRUST, IDLE GEAR | 4 | 1103- | A | ID =14.5 OD=46 | ||
| 78 | I8-97306 421-3 | ARM; ROCKER | 4 | 1103- | A | (A) INLET | ||
| 61 | I8-94394 803-0 | SCREW; ADJ, BRIDGE | 8 | 1103- | A | M8X21 | ||
| 95 | I8-94392 999-0 | SPRING; ROCKER SHAFT . | 4 | 1103- | A | |||
| 83 | I0-91111 510-0 | NUT; ADJ SCREW, LK | 8 | 1103- | A | M10 | ||
| 45 | I9-09851 850-A | WASHER; GEAR CAM | 1 | 1103- | A | 1D=14.5 | ||
| 102 | I8-94334 681-1 | COVER; IDLE GEAR | 1 | 1103- | A | (A) | ||
| 71 | I8-94390 783-2 | SEAT; SPR | 16 | 1103- | A | (A) UPPER OD=32.8 T=12.75 |
