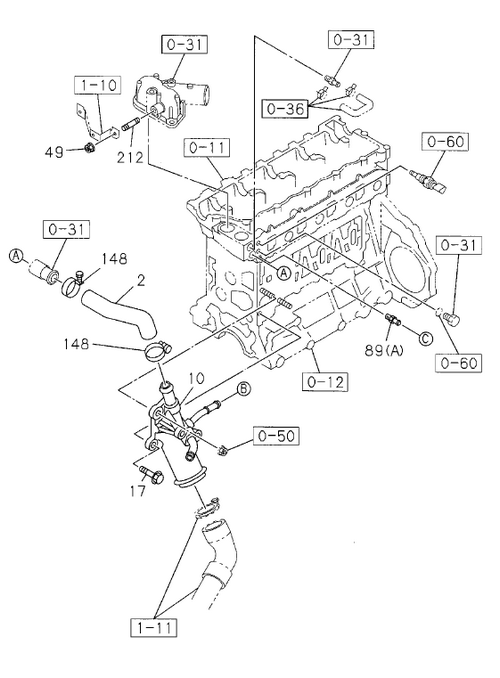

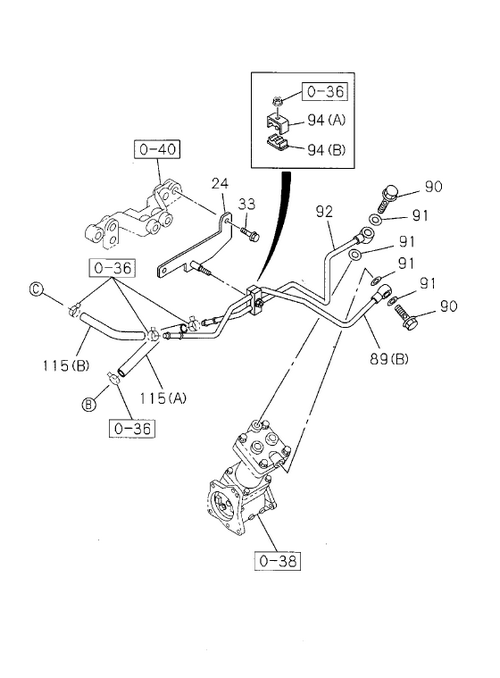

0-32 | WATER PIPING; ENGINE
GIGA
GIGA FRR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 49 | I0-91180 108-0 | NUT; WATER PIPE | 2 | 1103- | A | M8 FLANGE | ||
| 91 | I1-09630 085-0 | GASKET; WATER PIPE, AIR CMPR | 4 | 1103- | A | ID=14.2 OD-19.2 | ||
| 2 | I8-97379 228-1 | HOSE; WATER, BY-PASS | 1 | 1103- | A | |||
| 115 | I8-98136 884-0 | HOSE; RUBBER | 1 | 1103- | A | (A) | ||
| 33 | I0-28050 610-0 | BOLT; BRKT | 2 | 1103- | A | M6X1O FLANGE | ||
| 24 | I8-97379 140-0 | BRACKET; WATER PIPE | 1 | 1103- | A | |||
| 90 | I1-09675 193-0 | BOLT; EYE, WATER PIPE, AlR CMPR | 2 | 1103- | A | M14X27 EYE-BOLT | ||
| 148 | I1-09704 037-0 | CLIP; BYPASS HOSE | 2 | 1103-1109 | A | 11)=30 | ||
| 17 | I8-94458 473-1 | BOLT; PIPE | 1 | 1103- | A | M8X48 FLANGE | ||
| 89 | I8-97376 783-1 | PIPE; WATER, AIR CMPR, IN | 1 | 1103- | A | (B) | ||
| 148 | I1-09704 037-0 | CLIP; BYPASS HOSE | 2 | 1110- | A | 11)=30 | ||
| 115 | I8-98009 361-0 | HOSE; RUBBER | 1 | 1103- | A | (B) | ||
| 212 | I8-94217 227-0 | STUD; PIPE | 2 | 1103- | A | M8X45 L=55 | ||
| 92 | I8-97376 784-0 | PIPE; WATER, AIR CMPR, OUT | 1 | 1103- | A | |||
| 94 | I8-94393 280-3 | CLIP; WATER PIPE | 1 | 1103- | A | (A) ID=10 & 10 L=25 | ||
| 89 | I8-97358 699-0 | PIPE; WATER, AIR CMPR, IN | 1 | 1103- | A | (A) | ||
| 10 | I8-98166 995-0 | PIPE; SUCTION | 1 | 1103- | A | |||
| 94 | I1-09701 180-0 | CLIP; WATER PIPE | 1 | 1103- | A | (B) |
