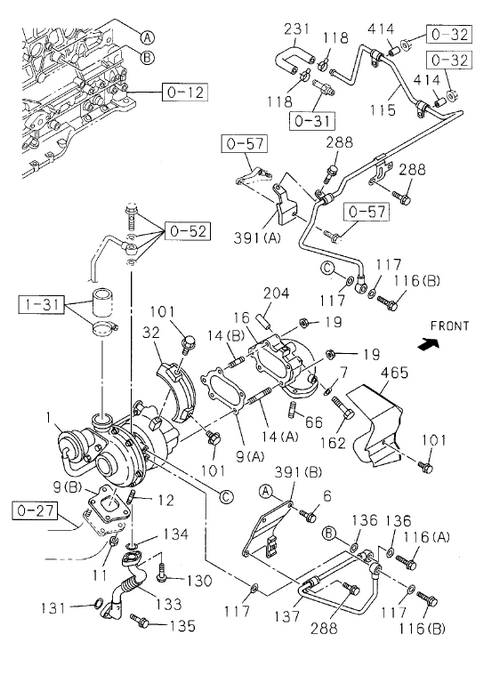

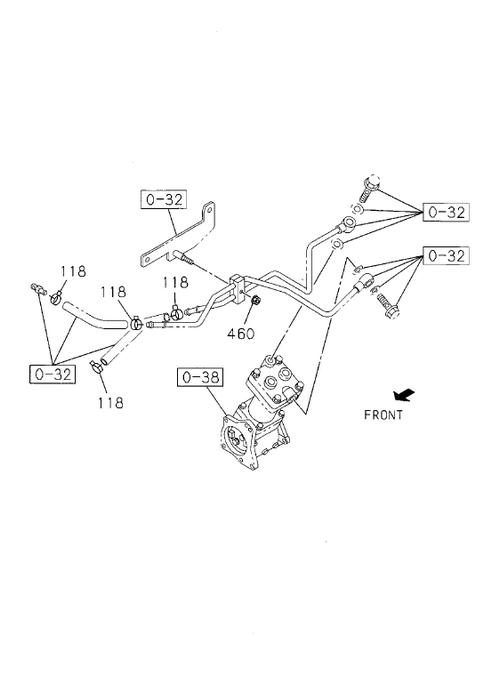

0-36 | TURBOCHARGER SYSTEM
GIGA
GIGA FRR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 133 | I8-98172 662-0 | PIPE; OIL DRAIN, TURBOCHARGER | 1 | 1103- | A | |||
| 414 | I1-11369 081-0 | SPACER | 2 | 1103- | A | 18X 10 | ||
| 117 | I9-09571 412-0 | GASKET; WATER PIPE | 4 | 1103- | A | ID=12.2 | ||
| 465 | I8-97351 167-0 | PROTECTOR; HEAT, EXH ADAPTER | 1 | 1103- | A | |||
| 231 | I8-97209 950-A | HOSE; RUBBER TURBOCHARGER OUT | 1 | 1103- | A | |||
| 116 | I8-98037 827-0 | BOLT; WATER PIPE | 1 | 1103- | A | (A) M14X30 EYE-BOLT | ||
| 66 | I0-44011 025-0 | STUD; EXH PIPE | 3 | 1103- | A | M10X25 L=40 | ||
| 116 | I1-09675 081-0 | BOLT; WATER PIPE | 2 | 1103- | A | (B) M12X24 EYE-BOLT | ||
| 9 | I8-97039 777-1 | GASKET; TURBOCHARGER TO EXH DUCT | 1 | 1103- | A | ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) | ||
| 118 | I8-94221 519-0 | CLIP; WATER HOSE | 6 | 1103- | A | ID =15.5 | ||
| 11 | I9-09842 007-0 | NUT; TURBOCHARGER | 4 | 1103- | A | M10 P=1.5 H=8 | ||
| 16 | I8-97039 748-4 | ADAPTER; EXH PIPE | 1 | 1103- | A | |||
| 391 | I8-98013 958-0 | BRACKET; WATER PIPE | 1 | 1103- | A | ( A) | ||
| 1 | I8-98070 143-2 | TURBOCHARGER ASM | 1 | 1103- | A | SEE FIG-NO 0-37 FOR COMPONENT. | ||
| 32 | I8-97351 168-0 | PROTECTOR; HEAT, TURBOCHARGER | 1 | 1103- | A | |||
| 231 | I6-97209 950-0 | HOSE; RUBBER TURBOCHARGER OUT | 1 | 1103- | A | |||
| 101 | I8-98054 289-0 | BOLT; HEAT PROTECTOR | 6 | 1103- | A | M6X12 W/PL WASHER | ||
| 136 | I1-09630 085-0 | GASKET; WATER PIPE | 2 | 1103- | A | ID =14.2 OD=19.2 | ||
| 162 | I5-09000 275-0 | BOLT; ADAPTER | 1 | 1103- | A | M8X57 | ||
| 19 | I8-94170 486-0 | NUT; EXH PIPE TURBOCHARGER | 5 | 1103- | A | M8 FLANGE | ||
| 16 | I8-97039 748-4 | ADAPTER; EXH PIPE | 1 | 1103- | A | |||
| 9 | I8-97374 412-0 | GASKET; TURBOCHARGER TO EXH DUCT | 1 | 1103- | A | ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) | ||
| 204 | I8-97214 384-1 | COLLAR; PIPE ADAPTER | 1 | 1103- | A | |||
| 115 | I8-98063 841-0 | PIPE; WATER, TURBOCHARGER OUT | 1 | 1103- | A | |||
| 130 | I0-50540 620-0 | BOLT; OIL PI PE TO TURBOCHARGER DRAIN | 2 | 1103- | A | M6X20 W/LK WASHER | ||
| 137 | I8-98063 007-0 | PIPE; WATER, TURBOCHARGER IN | 1 | 1103- | A | |||
| 14 | I8-97019 477-0 | STUD; TURBOCHARGER TO EXH PIPE | 2 | 1103- | A | (A) M8X94 L=108 | ||
| 134 | I1-09623 462-0 | GASKET; OIL PIPE, TURBOCHARGER DRAIN | 1 | 1103- | A | ID=22.8 | ||
| 131 | I8-94394 671-0 | GASKET; OIL PIPE, C/BL | 1 | 1103- | A | ID=30 | ||
| 135 | I0-28050 820-0 | BOLT; OIL PIPE TO C/BL | 2 | 1103- | A | il8X20 FLANGE | ||
| 7 | I8-94174 537-0 | WASHER; PL, BRKT | 1 | 1103- | A | ID=8 OD=18 T=3 | ||
| 391 | I8-98057 168-2 | BRACKET; WATER PIPE | 1 | 1103- | A | (B) | ||
| 460 | I0-91180 106-0 | NUT; PIPE | 1 | 1103- | A | LI6 FLANGE | ||
| 6 | I0-28050 816-0 | BOLT; BRKT TO C/BL | 2 | 1103- | A | M8X16 FLANGE | ||
| 288 | I0-28050 816-0 | BOLT; WATER PIPE CLIP | 2 | 1103- | A | M8 X16 FLANGE | ||
| 12 | I9-04731 028-0 | STUD; TURBOCHARGER | 2 | 1103- | A | M10X28 | ||
| 14 | I8-97019 478-0 | STUD; TURBOCHARGER TO EXH PIPE | 3 | 1103- | A | (B) M8X49 L=63 |
