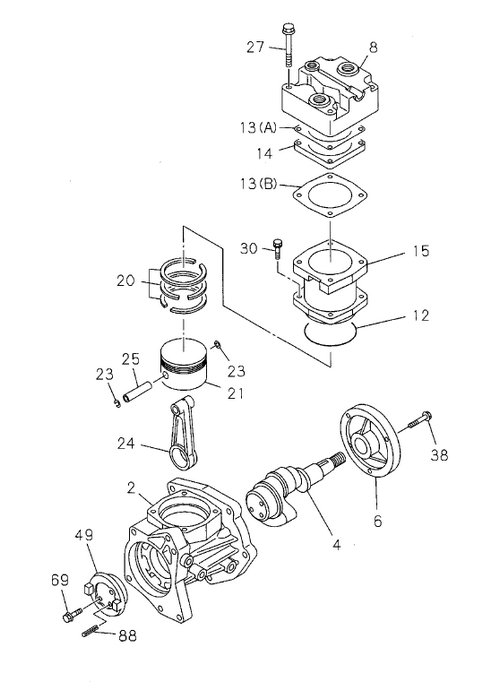

0-39 | AIR COMPRESSOR; BRAKE
GIGA
GIGA FRR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 15 | I1-19163 068-1 | CYLINDER; AIR CMPR | 1 | 1103- | A | |||
| 6 | I1-19156 086-1 | COVER ASM; BRG, AIR CMPR | 1 | 1103- | A | |||
| 8 | I1-19110 075-0 | HEAD ASM; CYL, AIR CMPR | 1 | 1103- | A | |||
| 30 | I0-50741 025-0 | BOLT; CYL TO CRANKCASE | 4 | 1110- | A | M10X25 | ||
| 2 | I1-19151 303-0 | CRANKCASE; AIR CMPR | 1 | 1103- | A | |||
| 13 | I1-19115 015-0 | GASKET; AIR CMPR | 1 | 1103- | A | (A) | ||
| 88 | I1-19179 034-0 | PIN; SPRING | 1 | 1103- | A | |||
| 12 | I1-09623 539-0 | GASKET; AIR CMPR | 1 | 1103- | A | |||
| 30 | I0-50741 025-0 | BOLT; CYL TO CRANKCASE | 4 | 1103-1109 | A | M10X25 | ||
| 69 | I1-19179 033-0 | BOLT ASM; AIR COMP | 2 | 1103- | A | |||
| 14 | I8-98271 713-0 | PLATE; AIR CMPR | 1 | 1411- | A | |||
| 20 | I1-19163 069-0 | RING KIT; PISTON, AIR CMPR | 1 | 1103-1103 | A | |||
| 4 | I1-19171 090-1 | CRANKSHAFT; AIR CMPR | 1 | 1103- | A | |||
| 49 | I1-19179 032-0 | COUPLING ASM | 1 | 1103- | A | |||
| 25 | I9-19167 003-0 | PIN; PISTON, AIR CMPR | 1 | 1103-1109 | A | |||
| 27 | I8-98188 172-0 | BOLT; HD | 4 | 1104- | A | |||
| 20 | I8-97522 052-0 | RING KIT; PISTON, AIR CMPR | 1 | 1104- | A | |||
| 14 | I8-98271 713-0 | PLATE; AIR CMPR | 1 | 1103- | A | |||
| 25 | I9-19167 003-0 | PIN; PISTON, AIR CMPR | 1 | 1110- | A | |||
| 23 | I1-19169 004-0 | RING; SNAP, PISTON, AIR CMPR | 2 | 1103- | A | |||
| 38 | I1-19159 023-0 | COVER FIX | 3 | 1103- | A | |||
| 13 | I1-19115 016-0 | GASKET; AIR CMPR | 1 | 1103- | A | (B) | ||
| 21 | I1-19161 027-0 | PISTON; AIR CMPR | 1 | 1103- | A | |||
| 24 | I1-19173 023-0 | ROD ASM; CONN, AIR CMPR | 1 | 1103- | A | |||
| 27 | I1-19119 039-0 | BOLT; HD | 4 | 1103 | A |
