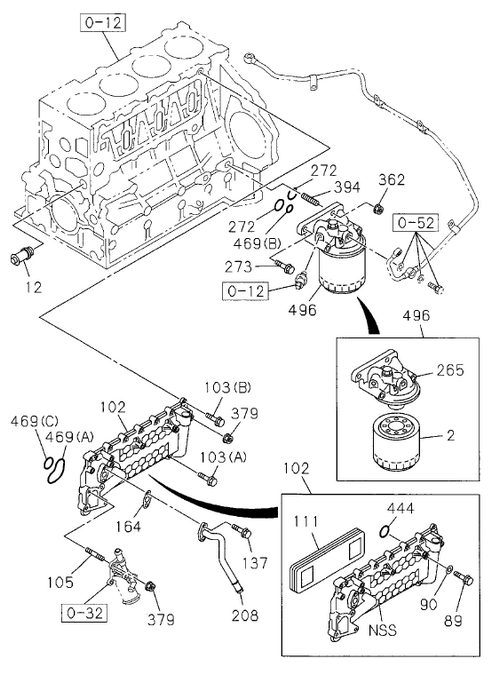

0-50 | OIL COOLER AND OIL FILTER
GIGA
GIGA FRR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 265 | I8-98328 486-0 | BODY; OIL FILTER | 1 | 1103-1601 | A | |||
| 379 | I0-91180 108-0 | NUT; OIL COOLER | 3 | 1103- | A | M8 FLANGE | ||
| 273 | I0-59311 030-0 | BOLT; OIL FILTER | 3 | 1110- | A | M10X30 | ||
| 105 | I8-97016 314-0 | STUD; OIL COOLER | 3 | 1103- | A | M8X52 L=63 | ||
| 90 | I1-21729 043-0 | GASKET; BOLT OIL COOLER | 4 | 1103- | A | |||
| 496 | I8-97148 268-3 | FILTER ASM; OIL | 1 | 1103- | A | |||
| 111 | I8-97334 100-2 | CORE; OIL COOLER | 1 | 1103- | A | |||
| 469 | I8-94338 878-A | GASKET; OIL COOLER TO C/BL | 1 | 1103- | A | (A) | ||
| 89 | I0-28050 816-0 | BOLT; ELEMENT TO CASE | 4 | 1103- | A | M8X16 FLANGE | ||
| 103 | I0-28050 835-0 | BOLT; OIL COOLER | 8 | 1103- | A | (B) M8X35 FLANGE | ||
| 102 | I8-98085 312-5 | COOLER ASM; OIL | 1 | 1103 - | A | |||
| 469 | I8-98045 447-A | GASKET; OIL COOLER TO C/BL | 1 | 1103- | A | (C) OD-30.2 W/PLATE | ||
| 2 | I6-97247 514-0 | ELEMENT; OIL FILTER | 1 | 1110- | A | |||
| 103 | I0-28050 820-0 | BOLT; OIL COOLER | 8 | 1103- | A | (A) M8X20 FLANGE | ||
| 444 | I8-97384 130-0 | GASKET; ELEMENT TO BODY | 1 | 1103- | A | |||
| 164 | I8-97146 684-A | GASKET; HTR PIPE | 1 | 1103- | A | |||
| 362 | I0-91180 110-0 | NUT; OIL FILTER | 1 | 1103- | A | M10 FLANGE | ||
| 2 | I2-97247 514-0 | ELEMENT; OIL FILTER | 1 | 1110- | A | |||
| 273 | I0-59311 030-0 | BOLT; OIL FILTER | 3 | 1103-1109 | A | M10X30 | ||
| 265 | I8-98328 486-0 | BODY; OIL FILTER | 1 | 1602- | A | |||
| 2 | I2-97247 514-0 | ELEMENT; OIL FILTER | 1 | 1103-1109 | A | |||
| 208 | I8-97146 519-0 | PIPE; WATER, HTR | 1 | 1103- | A | |||
| 137 | I0-28650 820-0 | BOLT | 4 | 1103- | A | M8X20 FLANGE IDN | ||
| 12 | I8-97013 566-2 | VALVE ASM; BYPASS | 1 | 1103- | A | |||
| 469 | I8-94399 339-0 | GASKET; OIL COOLER TO C/BL | 1 | 1103- | A | (B) ID=9.8 | ||
| 394 | I0-49241 025-0 | STUD; OIL FILTER | 1 | 1103- | A | M10X25 L-48.5 | ||
| 272 | I8-94399 399-0 | GASKET; OIL FILTER TO C/BL | 2 | 1103- | A | ID=22.1 |
