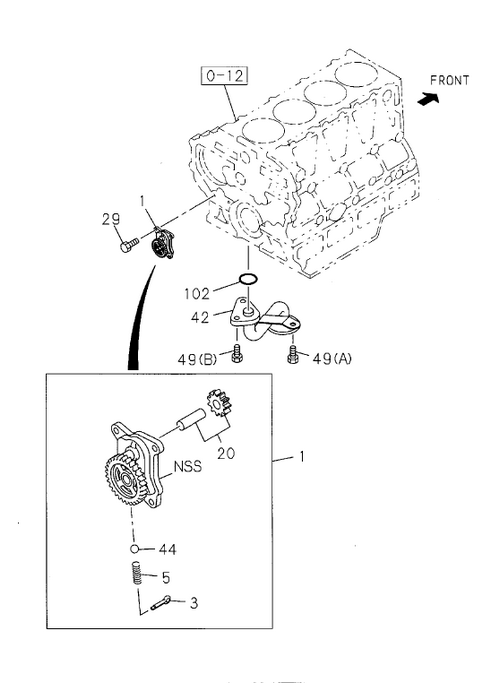

0-51 | OIL PUMP AND OIL STAINER
GIGA
GIGA FRR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 1 | I8-98017 585-1 | PUMP ASM; OIL | 1 | 1103- | A | |||
| 20 | I8-98059 192-0 | GEAR; DR I VE, OIL PUMP | 1 | 1103- | A | |||
| 3 | I0-81124 030-0 | PIN; SPLIT | 1 | 1103-1109 | A | L=30 | ||
| 49 | I8-97071 956-0 | BOLT; STRAINER, OIL PUMP | 1 | 1103- | A | (A) M10X80 | ||
| 102 | I8-94399 398-0 | GASKET; STRANER | 1 | 1103- | A | ALSO INCLUDED IN GASKET SET(ENG INE) . ID =24.5 | ||
| 5 | I5-09580 098-0 | SPRING; COIL | 1 | 1103- | A | |||
| 29 | I0-28060 825-0 | BOLT; OIL PUMP | 2 | 1103- | A | M8X25 FLANGE | ||
| 49 | I0-28060 816-0 | BOLT; STRAINER, OIL PUMP | 2 | 1103- | A | (B) M8X16 FLANGE | ||
| 3 | I0-81124 030-0 | PIN; SPLIT | 1 | 1110- | A | L=30 | ||
| 44 | I5-09843 003-0 | BALL; RELIEF VLV | 1 | 1103- | A | |||
| 42 | I8-97373 119-0 | STRAINER; OIL , OIL PUMP | 1 | 1103- | A | |||
| 29 | I0-28060 830-0 | BOLT; OIL PUMP | 2 | 1103- | A | M8X30 FLANGE |
