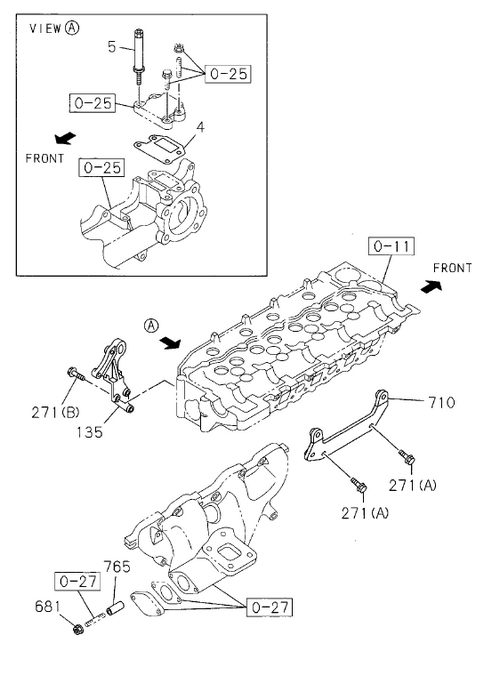

0-57 | EMISSION PIPING
GIGA
GIGA FRR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 710 | I8-98079 255-0 | BRACKET; EGR COOLER | 1 | 1103- | A | |||
| 271 | I0-28151 230-0 | BOLT; BRKT | 3 | 1103- | A | (B) M12X30 FLANGE | ||
| 135 | I8-97310 498-2 | BRACKET; EGR | 1 | 1103- | A | |||
| 4 | I8-97306 040-0 | GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE | 1 | 1103- | A | |||
| 765 | I8-94225 562-0 | SPACER; EGR PIPE | 2 | 1103- | A | |||
| 271 | I0-28050 820-0 | BOLT; BRKT | 2 | 1103- | A | (A) M8X20 FLANGE | ||
| 5 | I8-97377 804-0 | ADAPTER ASM | 1 | 1103- | A | |||
| 681 | I0-91180 208-0 | NUT; EGR PIPE | 2 | 1103- | A | M8 FLANGE |
