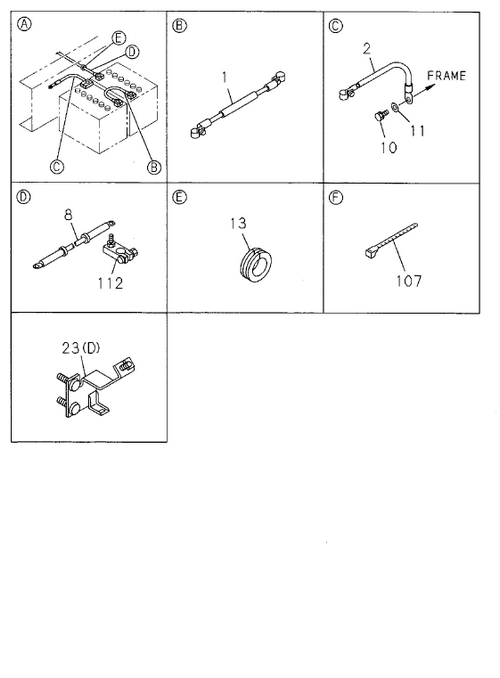

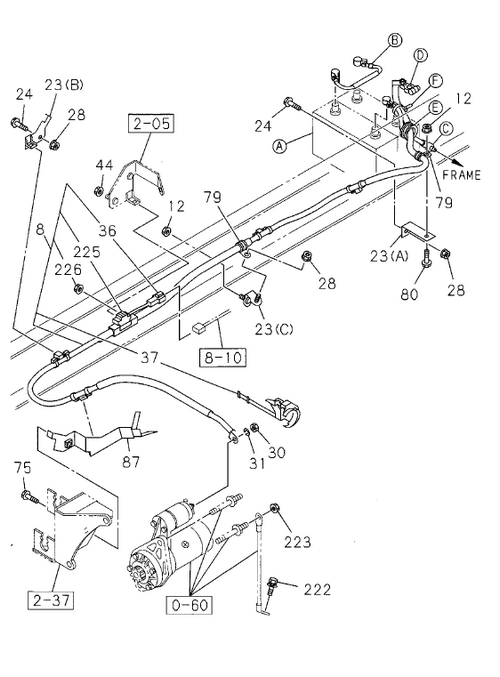

0-61 | BATTERY AND ENGINE ELECTRICAL PARTS
GIGA
GIGA FRR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 10 | I8-94279 219-0 | BOLT; BATTERY CABLE CLIP | 1 | 1110- | A | M10X25 W/LK&PL WASHER | ||
| 23 | I1-82699 085-0 | BRACKET; CABLE CLIP TO FRAME | 1 | 1103- | A | ( A ) L=95 | ||
| 222 | I8-94279 219-0 | BOLT; EARTH CABLE | 1 | 1103-1109 | A | M10X25 W/LK&PL WASHER | ||
| 223 | I7-05110 010-A | NUT; EARTH CABLE | 1 | 1103- | A | M10 FLANGE | ||
| 1 | I8-98025 412-A | CABLE; BATTERY | 1 | 1103- | A | |||
| 225 | I8-98029 689-0 | BLOCK; TERMINAL | 1 | 1103- | A | |||
| 2 | I8-97619 727-A | CABLE; BATTERY | 1 | 1103- | A | L=240 | ||
| 226 | I8-94424 179-0 | NUT; FUSIBLE LINK | 1 | 1103- | A | M6 W/LK WASHER | ||
| 30 | I0-91110 508-0 | NUT; CABLE, STARTER | 1 | 1103- | A | M8 IDN CABLE, STARTER TO BATTERY | ||
| 8 | I8-98171 731-A | CABLE; BATTERY, STARTER | 1 | 1103- | A | L=2385 | ||
| 36 | I8-97615 498-1 | FUSIBLE LINK; BATTERY | 1 | 1103- | A | |||
| 23 | I8-98051 381-2 | BRACKET; CABLE CLIP TO FRAME | 1 | 1103- | A | (C) | ||
| 44 | I7-05110 010-A | NUT; BRKT | 2 | 1103- | A | M10 FLANGE | ||
| 80 | I0-28650 825-0 | BOLT; BATTERY CABLE CLIP | 1 | 1103- | A | M8X25 FLANGE IDN | ||
| 23 | I8-98047 277-1 | BRACKET; CABLE CLIP TO FRAME | 1 | 1103- | A | (B) | ||
| 44 | I7-05110 010-A | NUT; BRKT | 2 | 1103- | A | M10 FLANGE | ||
| 24 | I0-28650 830-0 | BOLT; BRKT TO FRAME | 1 | 1103- | A | M8X30 FLANGE | ||
| 87 | I8-98171 733-0 | BRACKET; HARNESS | 1 | 1103- | A | |||
| 223 | I7-05110 010-A | NUT; EARTH CABLE | 1 | 1103- | A | M10 FLANGE | ||
| 1 | I7-42502 223-A | CABLE; BATTERY | 1 | 2010- | A | |||
| 24 | I0-28651 030-0 | BOLT; BRKT TO FRAME | 1 | 1103- | A | M10X30 FLANGE | ||
| 10 | I8-94279 219-0 | BOLT; BATTERY CABLE CLIP | 1 | 1103-1109 | A | M10X25 W/LK&PL WASHER | ||
| 2 | I8-97619 727-A | CABLE; BATTERY | 1 | 1103- | A | L=240 | ||
| 8 | I8-97695 084-A | CABLE; BATTERY, STARTER | 1 | 1407- | A | |||
| 79 | I8-98019 191-0 | CLIP; BATTERY CABLE | 2 | 1103- | A | ID =21 L=24 | ||
| 112 | I8-97365 771-0 | TERMINAL; BATTERY | 1 | 1103- | A | |||
| 23 | I8-98077 904-1 | BRACKET; CABLE CLIP TO FRAME | 1 | 1103- | A | (D) | ||
| 8 | I8-98171 731-A | CABLE; BATTERY, STARTER | 1 | 1103- | A | L=2385 | ||
| 13 | I9-09956 256-2 | GROMMET; BATTERY | 1 | 1103- | A | ID=28 OD=35 T=17 | ||
| 31 | I0-91510 508-0 | WASHER; LK, CABLE, | 1 | 1103- | A | ID=8.2 | ||
| 28 | I7-05110 010-A | NUT; BRKT TO FRAME | 1 | 1103- | A | M10 FLANGE | ||
| 37 | I8-98042 507-0 | CAP; TERMINAL, BATTERY CABLE | 1 | 1103- | A | |||
| 107 | I5-09707 031-1 | CLIP; BAND | 1 | 1103- | A | L= 140 IDN | ||
| 28 | I7-05110 010-A | NUT; BRKT TO FRAME | 1 | 1103- | A | M10 FLANGE | ||
| 12 | I0-91180 108-0 | NUT; BATTERY CABLE CLIP | 2 | 1103- | A | U8 FLANGE BATTERY CABLE | ||
| 28 | I0-91180 108-0 | NUT; BRKT TO FRAME | 2 | 1103- | A | M8 FLANGE | ||
| 11 | I1-09503 265-0 | WASHER; BATTERY CABLE EARTH | 1 | 1103- | A | ID =10.5 CABLE CLIP | ||
| 222 | I8-94279 219-0 | BOLT; EARTH CABLE | 1 | 1110- | A | M10X25 W/LK&PL WASHER | ||
| 75 | I0-28650 820-0 | BOLT; BRKT | 1 | 1103- | A | M8X20 FLANGE IDN |
