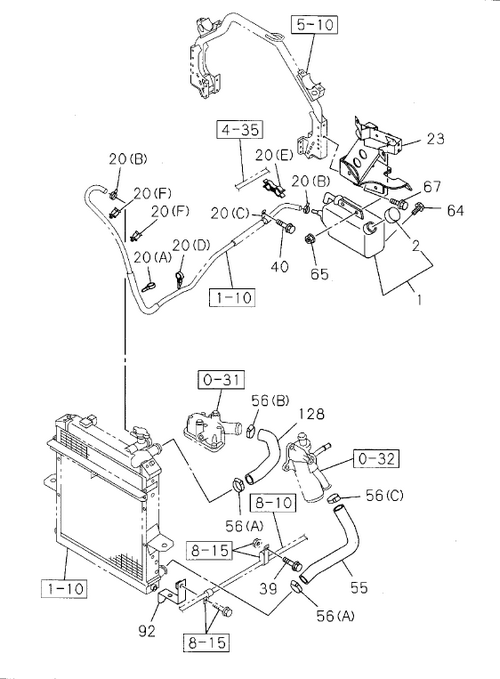

1-11 | RADIATOR HOSE AND SUB TANK
GIGA
GIGA FRR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 65 | I0-91180 108-0 | NUT; BRKT, SUB | 1 | 1103- | A | |||
| 55 | I6-98010 573-0 | HOSE; WATER, RAD OUTLET | 1 | 1103- | A | |||
| 23 | I8-98010 310-3 | BRACKET; RESERVE TANK | 1 | 1103- | A | |||
| 56 | I1-09704 057-0 | CLIP; WATER HOSE, RAD | 1 | 1103- | A | (B) I D=52 | ||
| 20 | I0-95235 235-0 | CLIP; HOSE, RAD | 1 | 1103- | A | ( C) ID=13 L=20 | ||
| 39 | I0-28650 820-0 | BOLT; BRKT FIX | 1 | 1103- | A | M8X20 FLANGE IDN | ||
| 20 | I9-09917 427-0 | CLIP; HOSE, RAD | 1 | 1103- | A | ( D) 10-14 L=44 | ||
| 2 | I8-98178 074-0 | CAP; SURGE TANK | 1 | 1103- | A | |||
| 128 | I6-98010 572-0 | HOSE; WATER, | 1 | 1103- | A | |||
| 56 | I8-98133 957-0 | CLIP; WATER | 1 | 1103- | A | (C) ID-=62 | ||
| 64 | I1-09030 093-0 | BOLT; BRKT, | 3 | 1103- | A | |||
| 20 | I8-97375 638-0 | CLIP; HOSE, RAD | 2 | 1103- | A | (B) ID=11.5 | ||
| 20 | I9-09917 430-0 | CLIP; HOSE, RAD | 1 | 1103- | A | (A) I D=20 L=50 | ||
| 1 | I8-98171 757-0 | TANK; SURGE, RAD | 1 | 1103- | A | |||
| 20 | I8-94381 420-0 | CLIP; HOSE, RAD | 1 | 1103- | A | (E) ID=10.5 & 18 | ||
| 20 | I8-98029 256-0 | CLIP; HOSE, RAD | 3 | 1103- | A | ( F ) I D=12 | ||
| 67 | I0-28650 820-0 | BOLT; BRKT | 3 | 1103- | A | |||
| 56 | I8-98133 956-0 | CLIP; WATER HOSE, RAD | 2 | 1103- | A | (A) ID=48 | ||
| 55 | I8-98010 573-2 | HOSE; WATER, RAD OUTLET | 1 | 1103- | A | |||
| 128 | I8-98010 572-1 | HOSE; WATER, | 1 | 1103- | A | |||
| 40 | I0-28650 820-0 | BOLT; CLIP | 1 | 1103- | A | M8X20 FLANGE IDN | ||
| 92 | I8-98055 051-0 | BRACKET; CLIP, | 1 | 1103- | A |
