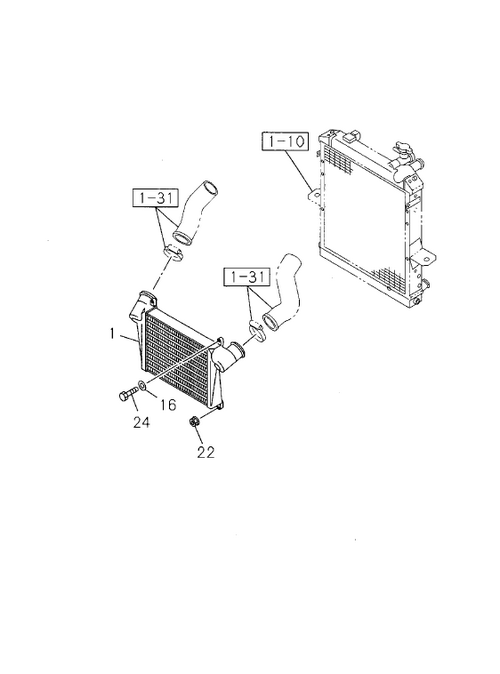

1-35 | CHARGE AIR COOLER
GIGA
GIGA FRR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 22 | I0-91180 108-0 | NUT | 2 | 1103- | A | M8 FLANGE | ||
| 16 | I0-91610 508-A | WASHER; P , CHARGE | 2 | 1103- | A | ID=8.4 OD=16 | ||
| 22 | I0-91180 108-A | NUT | 2 | 1103- | A | M8 FLANGE | ||
| 1 | I8-98006 479-A | COOLER; CHARGE AIR | 1 | 1103- | A | |||
| 1 | I8-98006 479-A | COOLER; CHARGE AIR | 1 | 1103- | A | |||
| 1 | I8-98006 479-A | COOLER; CHARGE AIR | 1 | 1103- | A | |||
| 16 | I0-91610 508-0 | WASHER; P , CHARGE | 2 | 1103- | A | ID=8.4 OD=16 | ||
| 24 | I0-28050 825-0 | BOLT; COOLER TO RAD | 2 | 1103- | A | N8X25 FLANGE | ||
| 22 | I0-91180 108-0 | NUT | 2 | 1103- | A | M8 FLANGE | ||
| 16 | I0-91610 508-0 | WASHER; P , CHARGE | 2 | 1103- | A | ID=8.4 OD=16 |
