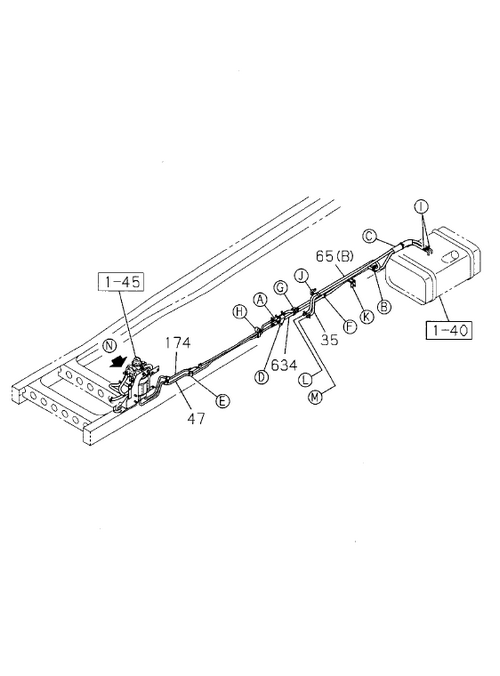

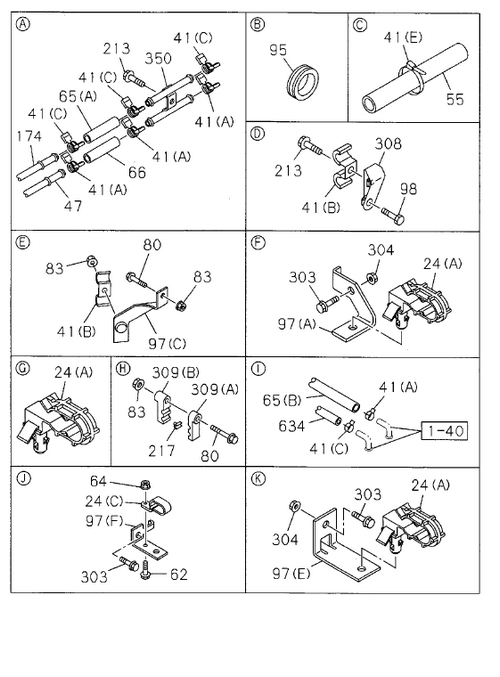

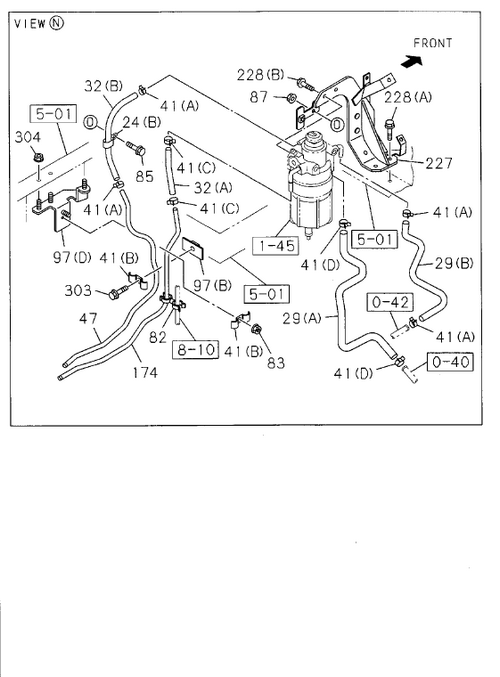

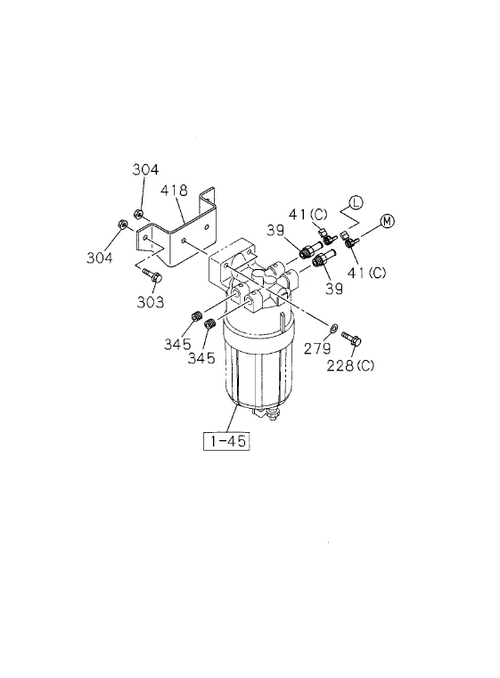

1-41 | FUEL PIPING; CHASSIS
GIGA
GIGA FRR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 65 | I0-01260 300-0 | HOSE; FUEL, DELIVERY PIPE | 1 | 1103- | A | (B) L=2900 SERVICED BY L=3000 | ||
| 97 | I8-98078 201-0 | BRACKET; CLIP | 1 | 1103- | A | |||
| 29 | I8-98078 195-A | HOSE; FUEL | 1 | 1103- | A | (B) | ||
| 228 | I0-28050 825-0 | BOLT; BRKT, SEDIMENTER | 2 | 1103- | A | ( A) M8X25 FLANGE | ||
| 309 | I1-09709 241-0 | CLIP; PIPE | 3 | 1103- | A | (A) ID=10&10 | ||
| 304 | I7-05110 010-A | NUT; BRKT | 2 | 1103- | A | M10 FLANGE | ||
| 304 | I7-05110 010-A | NUT; BRKT | 2 | 1103- | A | M10 FLANGE | ||
| 66 | I0-01558 300-0 | HOSE; FUEL, RETURN PIPE L=60 | 1 | 1103- | A | SERVICED BY L=3000 | ||
| 29 | I8-98285 410-A | HOSE; FUEL | 1 | 1602- | A | (A) | ||
| 303 | I0-28651 030-0 | BOLT; BRKT | 1 | 1103- | A | M10X30 FLANGE | ||
| 80 | I0-28650 820-0 | BOLT; CLIP, FUEL TANK | 1 | 1103- | A | M8X20 FLANGE IDN | ||
| 85 | I0-28650 820-0 | BOLT; CLIP, | 1 | 1103- | A | |||
| 29 | I0-01859 130-A | HOSE; FUEL | 1 | 1602- | A | (C) | ||
| 97 | I8-98109 768-0 | BRACKET; CLIP | 1 | 1103- | A | |||
| 350 | I8-98084 131-A | PIPE; FUEL, | 1 | 1103- | A | |||
| 174 | I8-98100 140-A | PIPE; FUEL, FEED, FRT | 1 | 1103- | A | |||
| 29 | I8-98078 194-A | HOSE; FUEL | 1 | 1103-1601 | A | (A) | ||
| 41 | I8-98008 098-0 | CLIP; FUEL PIPE, FUEL TANK | 2 | 1110- | A | (D) ID=16 | ||
| 24 | I1-09700 744-0 | CLIP; FUEL HOSE | 1 | 1103- | A | (C) H=15 ID=14 | ||
| 80 | I0-28050 850-0 | BOLT; CLIP, FUEL TANK | 1 | 1103- | A | M8X50 FLANGE | ||
| 308 | I8-98117 691-0 | BRACKET; FUEL | 1 | 1103- | A | |||
| 32 | I0-01260 300-0 | PIPE; DELIVERY, FUEL TANK | 1 | 1103- | A | L=140 SERVICED BY L=3000 | ||
| 41 | I5-09707 030-1 | CLIP; PIPE, FUEL TANK | 3 | 1103- | A | ( E) L=250 IDN | ||
| 41 | I8-98150 357-0 | CLIP; FUEL PIPE, FUEL TANK | 8 | 1103-1109 | A | (A) I D=13 | ||
| 82 | I8-94169 028-0 | CLIP; FUEL HOUSE | 1 | 1103- | A | |||
| 350 | I8-98084 131-A | PIPE; FUEL, | 1 | 1103- | A | |||
| 303 | I0-28650 830-0 | BOLT; BRKT | 1 | 1103- | A | M8X30 FLANGE | ||
| 41 | I1-09700 688-0 | CLIP; PIPE, FUEL TANK | 3 | 1103-1109 | A | (B) ID=11 & 9 L=17.5 & 17.5 | ||
| 228 | I0-28051 050-0 | BOLT; BRKT, SEDIMENTER | 2 | 1103- | A | ( C ) M10X50 FLANGE | ||
| 309 | I1-09709 243-0 | CLIP; PIPE | 3 | 1103- | A | (B) ID=10&10 | ||
| 95 | I9-09956 256-2 | BUSHING; PIPE, | 1 | 1103- | A | |||
| 41 | I1-09704 102-0 | CLIP; PIPE, FUEL TANK | 6 | 1103- | A | ( C) ID=14 | ||
| 29 | I8-98078 195-A | HOSE; FUEL | 1 | 1103- | A | (B) | ||
| 303 | I0-28651 035-0 | BOLT; BRKT | 2 | 1103- | A | M10X35 FLANGE IDN | ||
| 98 | I0-28651 030-0 | BOLT; BRKT, FUEL PIPE | 1 | 1103- | A | |||
| 41 | I1-09700 688-0 | CLIP; PIPE, FUEL TANK | 3 | 1110- | A | (B) ID=11 & 9 L=17.5 & 17.5 | ||
| 41 | I8-98008 098-0 | CLIP; FUEL PIPE, FUEL TANK | 2 | 1103-1109 | A | (D) ID=16 | ||
| 55 | I1-09361 018-0 | COVER; PIPE, FUEL TANK | 1 | 1103- | A | L=800 | ||
| 227 | I8-98130 667-0 | BRACKET; FUEL SED I MENTER | 1 | 1103- | A | |||
| 35 | I0-01260 300-0 | PIPE; TANK, RETURN | 1 | 1103- | A | L=1350 SERVICED BY L=3000 | ||
| 62 | I0-28650 820-0 | BOLT; CLIP FIX | 1 | 1103- | A | M8X20 FLANGE IDN | ||
| 279 | I0-91614 710-0 | WASHER | 2 | 1103- | A | ID=10.5 OD=26 | ||
| 39 | I8-98122 953-A | PIPE; FUEL | 2 | 1103- | A | |||
| 41 | I1-09704 102-0 | CLIP; PIPE, FUEL TANK | 2 | 1103- | A | (C) I D=14 | ||
| 217 | I1-47459 011-0 | COLLAR; FUEL PIPE FIX | 3 | 1103- | A | ID=8 | ||
| 304 | I0-91180 108-0 | NUT; BRKT | 1 | 1103- | A | M8 FLANGE | ||
| 213 | I0-28650 820-0 | BOLT; FUEL PIPE FIX | 1 | 1103- | A | |||
| 634 | I0-01558 300-0 | HOSE; RUBBER | 1 | 1103- | A | L=400 SERVICED BY L=3000 | ||
| 228 | I0-28650 820-0 | BOLT; BRKT, SEDIMENTER | 2 | 1103- | A | (B) M8X20 FLANGE IDN | ||
| 97 | I8-98083 349-0 | BRACKET; CLIP | 1 | 1103- | A | |||
| 345 | I8-97329 623-0 | PLUG | 2 | 1103- | A | NPTF3/8-18 | ||
| 83 | I0-91180 108-0 | NUT; CLIP, FUEL TANK | 4 | 1103- | A | |||
| 39 | I8-98122 953-A | PIPE; FUEL | 2 | 1103- | A | |||
| 64 | I0-91180 108-0 | NUT; CLIP | 1 | 1103- | A | M8 FLANGE | ||
| 24 | I1-09701 246-1 | CLIP; FUEL HOSE | 7 | 1103- | A | (A) | ||
| 47 | I1-47428 851-0 | PIPE; FUEL, RETURN | 1 | 1103- | A | L=1496 SERVICED BY L=1550 | ||
| 24 | I1-09700 606-0 | CLIP; FUEL HOSE | 1 | 1103- | A | (B) ID=15 H=24 L=20 | ||
| 65 | I0-01260 300-0 | HOSE; FUEL, DELIVERY PIPE | 1 | 1103- | A | (A) L=60 SERVICED BY L=3000 | ||
| 304 | I0-91180 108-0 | NUT; BRKT | 2 | 1103- | A | M8 FLANGE | ||
| 174 | I8-98100 140-A | PIPE; FUEL, FEED, FRT | 1 | 1103- | A | |||
| 97 | I8-98100 216-1 | BRACKET; CLIP | 1 | 1103- | A | |||
| 87 | I0-91180 108-0 | NUT; CLIP, FUEL HOUSE | 1 | 1103- | A | |||
| 418 | I8-98114 787-0 | BRACKET; PRE | 1 | 1103- | A | |||
| 32 | I0-01558 300-0 | PIPE; DELIVERY, FUEL TANK | 1 | 1103- | (B) L=210 SERVICED BY L=3000 | |||
| 29 | I8-98078 194-A | HOSE; FUEL | 1 | 1103- | A | (A) | ||
| 41 | I8-98150 357-0 | CLIP; FUEL PIPE, FUEL TANK | 8 | 1110- | A | (A) I D=13 | ||
| 304 | I7-05110 010-A | NUT; BRKT | 1 | 1103- | A | M10 FLANGE | ||
| 304 | I7-05110 010-A | NUT; BRKT | 1 | 1103- | A | M10 FLANGE | ||
| 97 | I1-47475 299-2 | BRACKET; CLIP | 1 | 1103- | A | |||
| 97 | I8-98083 537-0 | BRACKET; CLIP | 1 | 1103- | A |
