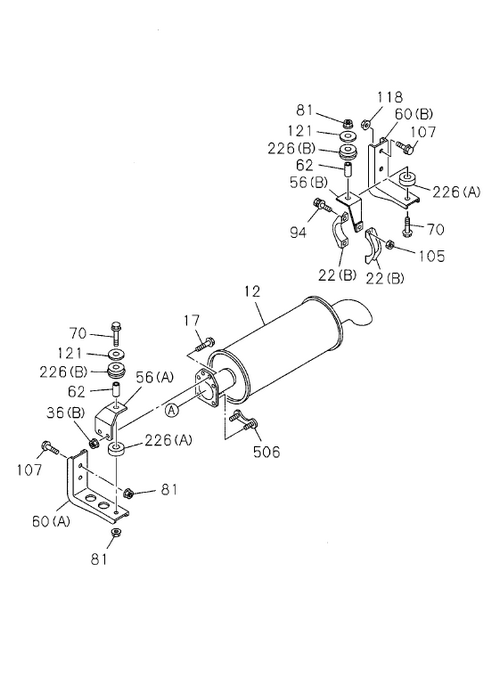

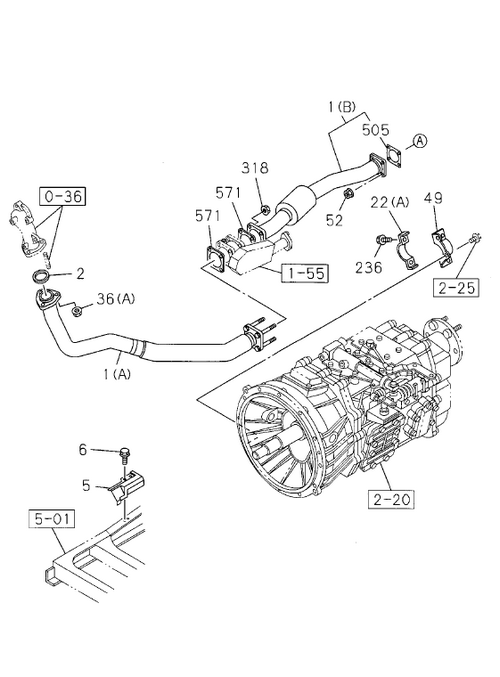

1-50 | EXHAUST PIPE AND SILENCER
GIGA
GIGA FRR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 2 | I8-97381 455-0 | GASKET; PIPE TO MANIFOLD | 1 | 1103- | A | |||
| 226 | I8-94457 277-A | RUBBER; CUSHION | 2 | 1110- | A | (A) IDN | ||
| 22 | I8-97646 674-0 | CLAMP; EXH PIPE FRR90 | 2 | 1309- | A | (B) | ||
| 226 | I8-94457 278-A | RUBBER; CUSHION | 2 | 1103-1109 | A | (B) IDN | ||
| 506 | I1-22131 963-0 | BRACKET; STUD | 2 | 1103- | A | |||
| 52 | I0-91180 212-0 | NUT; B R KT | 4 | 1103- | A | |||
| 12 | I8-98090 389-2 | SILENCER ASM; | 1 | 1103- | A | |||
| 236 | I0-28651 030-0 | BOLT; PIPE | 2 | 1103- | A | |||
| 56 | I8-98074 824-1 | BRACKET; CLAMP, EXH PIPE | 1 | 1103- | A | (A) | ||
| 226 | I8-94457 277-A | RUBBER; CUSHION | 2 | 1103-1109 | A | (A) IDN | ||
| 12 | I8-98090 389-2 | SILENCER ASM; | 1 | 1103- | A | |||
| 62 | I8-98060 852-0 | TUBE; DIST, BRKT | 2 | 1103- | A | |||
| 107 | I0-28651 035-0 | BOLT; BRKT | 4 | 1103- | A | M10X35 FLANGE IDN | ||
| 1 | I8-98082 498-A | PIPE; EXH | 1 | 1103- | A | (A) | ||
| 105 | I7-05110 010-A | NUT; CLAMP | 2 | 1103- | A | M10 FLANGE | ||
| 94 | I0-28651 040-0 | BOLT; CLAMP | 2 | 1103- | A | M10X40 FLANGE | ||
| 118 | I7-05110 010-A | NUT; SILENCER MTG BRKT | 2 | 1103- | A | M10 FLANGE | ||
| 571 | I8-97373 108-0 | GASKET | 2 | 1103- | A | |||
| 226 | I8-94457 278-A | RUBBER; CUSHION | 2 | 1110- | A | (B) IDN | ||
| 36 | I8-97096 192-1 | NUT; EXH PIPE | 3 | 1103- | A | |||
| 70 | I0-28051 070-0 | BOLT; BRKT | 2 | 1103- | A | M10X70 FLANGE IDN | ||
| 22 | I1-22133 233-A | CLAMP; EXH | 2 | 1103- | A | |||
| 121 | I1-09503 154-2 | WASHER; PL, BRKT | 2 | 1103- | A | ID=8.4 OD=22 | ||
| 1 | I8-98096 347-A | PIPE; EXH | 1 | 1103- | A | (B) | ||
| 60 | I8-98245 530-0 | BRACKET; FRAME TO BRKT FRR90 | 1 | 1309- | A | (B) | ||
| 60 | I8-98059 753-1 | BRACKET; FRAME TO BRKT | 1 | 1103- | A | (B) | ||
| 60 | I1-22152 274-1 | BRACKET; FRAME TO BRKT | 1 | 1103- | A | (A) | ||
| 36 | I7-05110 010-A | NUT; EXH PIPE | 2 | 1103- | A | |||
| 318 | I8-97581 234-0 | NUT; EXH PIPE, FRT I | 4 | 1103- | A | M8 W/LK WASHER IDN | ||
| 49 | I8-98234 530-0 | BRACKET; EXH PIPE TO TRANS | 1 | 1302- | A | |||
| 22 | I1-22133 295-0 | CLAMP; EXH | 1 | 1103- | A | |||
| 6 | I0-28650 825-0 | BOLT; HEAT PROTECTOR | 2 | 1103- | A | M8X25 FLANGE IDN | ||
| 56 | I8-98086 352-0 | BRACKET; CLAMP, EXH PIPE | 1 | 1103- | A | (B) | ||
| 81 | I7-05110 010-A | NUT; BRKT | 2 | 1103- | A | M10 FLANGE | ||
| 81 | I7-05110 010-A | NUT; BRKT | 2 | 1103- | A | M10 FLANGE | ||
| 22 | I1-22133 233-A | CLAMP; EXH | 2 | 1103- | A | |||
| 505 | I8-98096 305-0 | GASKET; CONV TO EXH PIPE | 1 | 1103- | A | |||
| 17 | I0-28651 035-0 | BOLT; EXH PIPE | 2 | 1103- | A | M10X35 FLANGE IDN | ||
| 5 | I8-98089 287-1 | PROTECTOR; HEAT | 1 | 1103- | A | |||
| 49 | I8-98042 786-0 | BRACKET; EXH | 1 | 1103- | A | |||
| 118 | I7-05110 010-A | NUT; SILENCER MTG BRKT | 2 | 1103- | A | M10 FLANGE | ||
| 36 | I7-05110 010-A | NUT; EXH PIPE | 2 | 1103- | A | |||
| 105 | I7-05110 010-A | NUT; CLAMP | 2 | 1103- | A | M10 FLANGE |
